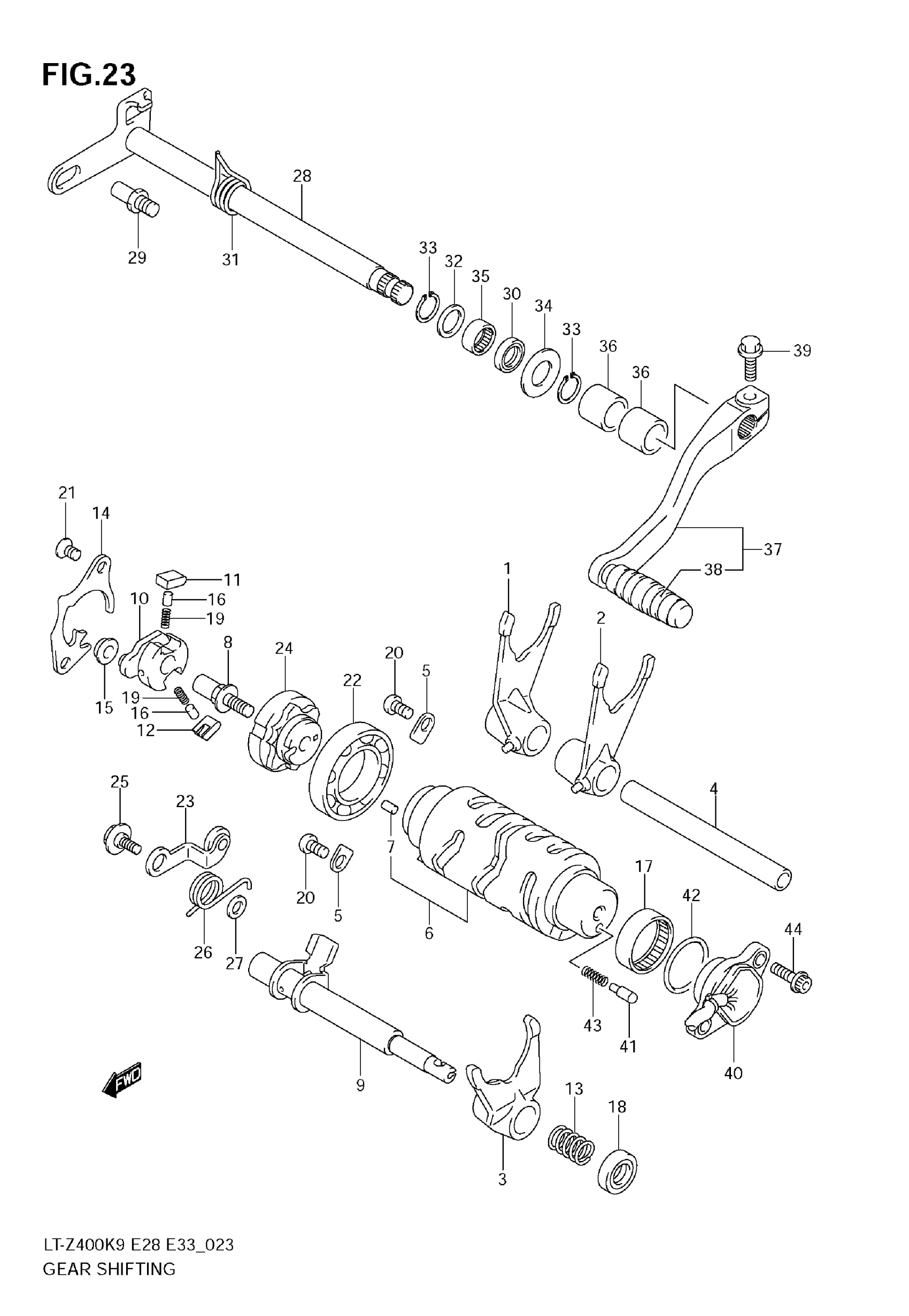

Suzuki LT-Z400 (2009) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1

25211-07G00

$84.50

2

FORK, GEAR SHIFT NO.2

25221-07G00

$84.50

3

FORK, GEAR SHIFT NO.3

25231-07G00

$83.28

4

SHAFT, GEAR FORK NO.1

25411-07G00

Unavailable

5

RETAINER, SHIFT CAM BRG

24741-21A00

$2.81

6

CAM, GEAR SHIFT | Includes Item(s) 7

25310-33H00

Unavailable

7

PIN (4X13.8)

04221-04089

$1.49

8

PIN, SHIFT

25313-27C02

$13.05

9

SHAFT, REVERSE LOCK

25320-07G00

$61.93

10

SHIFTER, GEAR SHIFT CAM

25322-36E00

$62.32

11

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

12

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

13

SPRING, REVERSE LOCK

25328-07G00

$3.95

14

LIFTER, GEAR SHIFT PAWL

25331-37E10

$23.47

15

ROLLER, GEAR CAM SHIFTER

09180-07014

$4.11

16

PIN, SHIFT POLE (5X8)

09209-05023

$2.61

17

BEARING, SHIFT CAM LH | 33X38X8

09263-25018

$21.39

18

SEAL, REVERSE LOCK | 9.7X20X5

09283-10010

$6.42

19

SPRING, SHIFT PAWL RETURN

09440-04003

$1.54

20

SCREW, SHIFT CAM BRG

09125-06110

$2.12

21

SCREW, SHIFT PAWL LIFTER | 6X12

09126-06014

$2.06

22

BEARING

08113-69050

$35.66

23

STOPPER, SHIFT CAM

25350-07G00

$14.49

24

PLATE, SHIFT CAM STOPPER

25381-36E11

$60.93

25

BOLT, CAM STOPPER ARM

09111-06041

$2.61

26

SPRING, SHIFT CAM

25355-07G00

$5.02

27

WASHER, SHIFT CAM

08211-06121

$1.54

28

SHAFT, GEAR SHIFT

25510-07G00

$73.16

29

STOPPER, GEAR SHIFT ARM

25671-38B00

$5.32

30

SEAL, SHIFT SHAFT OIL | 14X22X6

09283-14006

$6.70

31

SPRING, SHIFT SHAFT RETURN

09444-20006

$8.75

32

WASHER, GEAR SHAFT | 14X20X1.0

09181-14139

$2.60

33

CIRCLIP, GEAR SHAFT

08331-3114A

$1.91

34

WASHER, GEAR SHIFT LH | 14X29X0.8

09160-14016

$1.93

35

BEARING, GEAR SHAFT (14X20X12)

09263-14027

$13.52

36

SPACER (14X20X17.5)

09180-14016

$3.96

37

LEVER ASSY,GEAR | Includes Item(s) 38 This part replaces 25600-07G10.

25600-07G11

$71.74

38

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.74

39

BOLT, GEAR SHIFT

01550-0620B

$2.39

40

BASE ASSY, GEAR SHIFT TERM

37730-33H00

$147.77

41

CONTACT

09209-05011

$2.20

42

O RING (D:2.4,ID:26.2)

09280-26005

$2.30

43

SPRING

09440-04010

$1.54

44

BOLT

07120-0516A

$2.28
