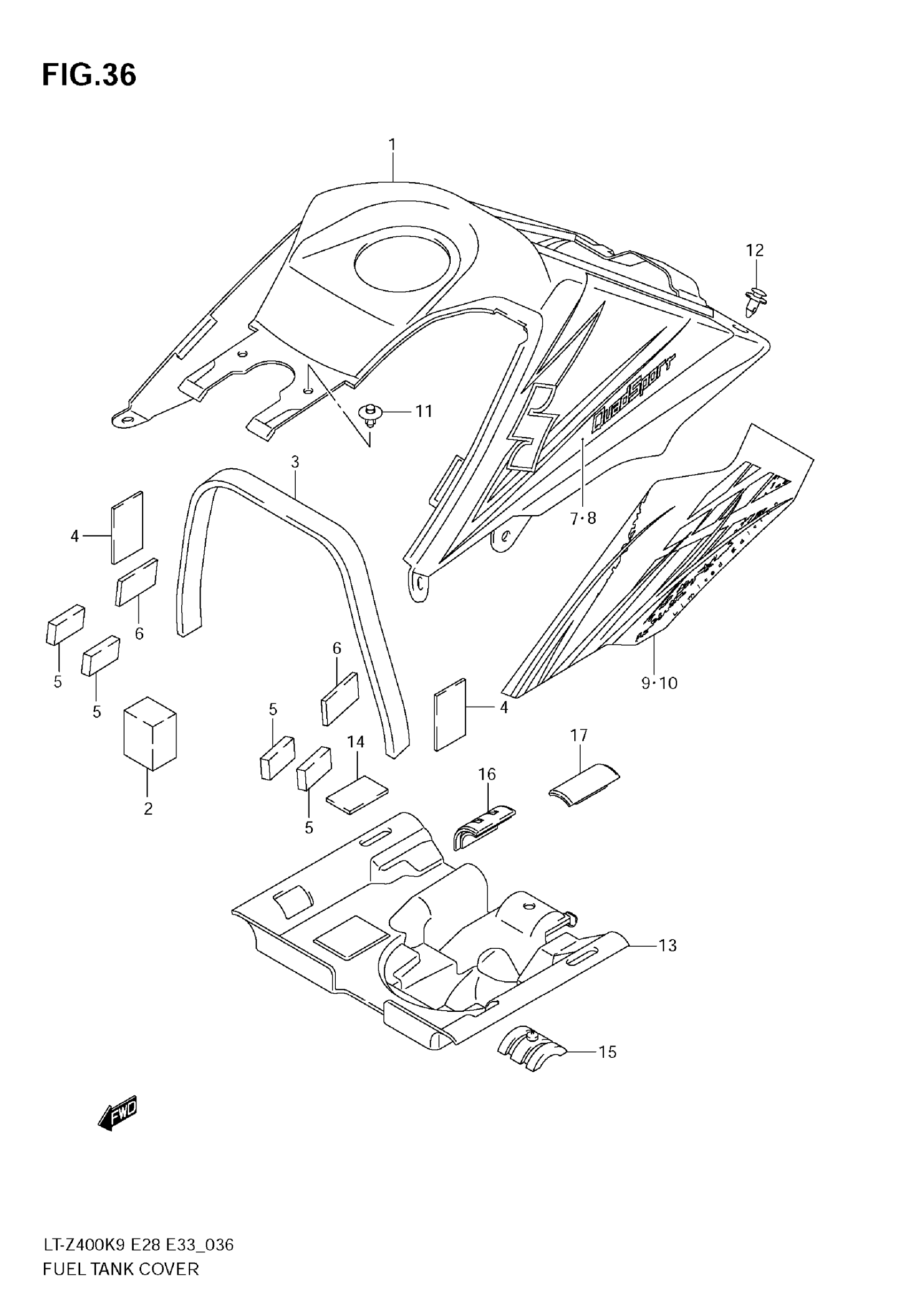

Suzuki LT-Z400 (2009) FUEL TANK COVER Diagram

#

Description
Price

1

COVER, FUEL TANK (WHITE) | LT-Z400 This part replaces 44271-33H00-30H.

44271-33H01-30H

$209.17

1

COVER, FUEL TANK (YELLOW) | LT-Z400 This part replaces 44271-33H00-YU1.

44271-33H01-YU1

$198.95

1

COVER,FUEL TANK | LT-Z400Z This part replaces 44271-33H00-019.

44271-33H01-019

$154.92

2

CUSHION, FRONT LH

44558-33H00

Unavailable

3

CUSHION, UPPER

44559-33H00

$5.58

4

CUSHION, REAR SIDE

51553-15D40

$7.18

5

CUSHION

51827-01A00

$6.17

6

CUSHION, CENTER SIDE

47451-38A01

$4.43

7

TAPE, COVER RH | LT-Z400 FOR 30H

68115-33H00-FVE

Unavailable

7

TAPE, COVER RH | LT-Z400 FOR YU1

68115-33H00-FVF

Unavailable

8

TAPE, COVER LH | LT-Z400 FOR 30H

68116-33H00-FVE

Unavailable

8

TAPE, COVER LH | LT-Z400 FOR YU1

68116-33H00-FVF

Unavailable

9

TAPE, COVER RH | LT-Z400Z

68115-33HA0-GVS

Unavailable

10

TAPE, COVER LH | LT-Z400Z

68116-33HA0-GVS

Unavailable

11

CLIP, FRONT

09409-07333

$2.31

12

CLIP, REAR

09409-08335

$2.47

13

COVER, TANK LOWER

44391-33H00

Unavailable

14

CUSHION,TANK COVER LWR NO.1

44555-33H00

$11.47

15

CUSHION, LOWER REAR

44542-33H00

Unavailable

16

CUSHION, LOWER SIDE FRONT

44542-45G00

Unavailable

17

CUSHION, LOWER SIDE REAR

44543-33H00

Unavailable
