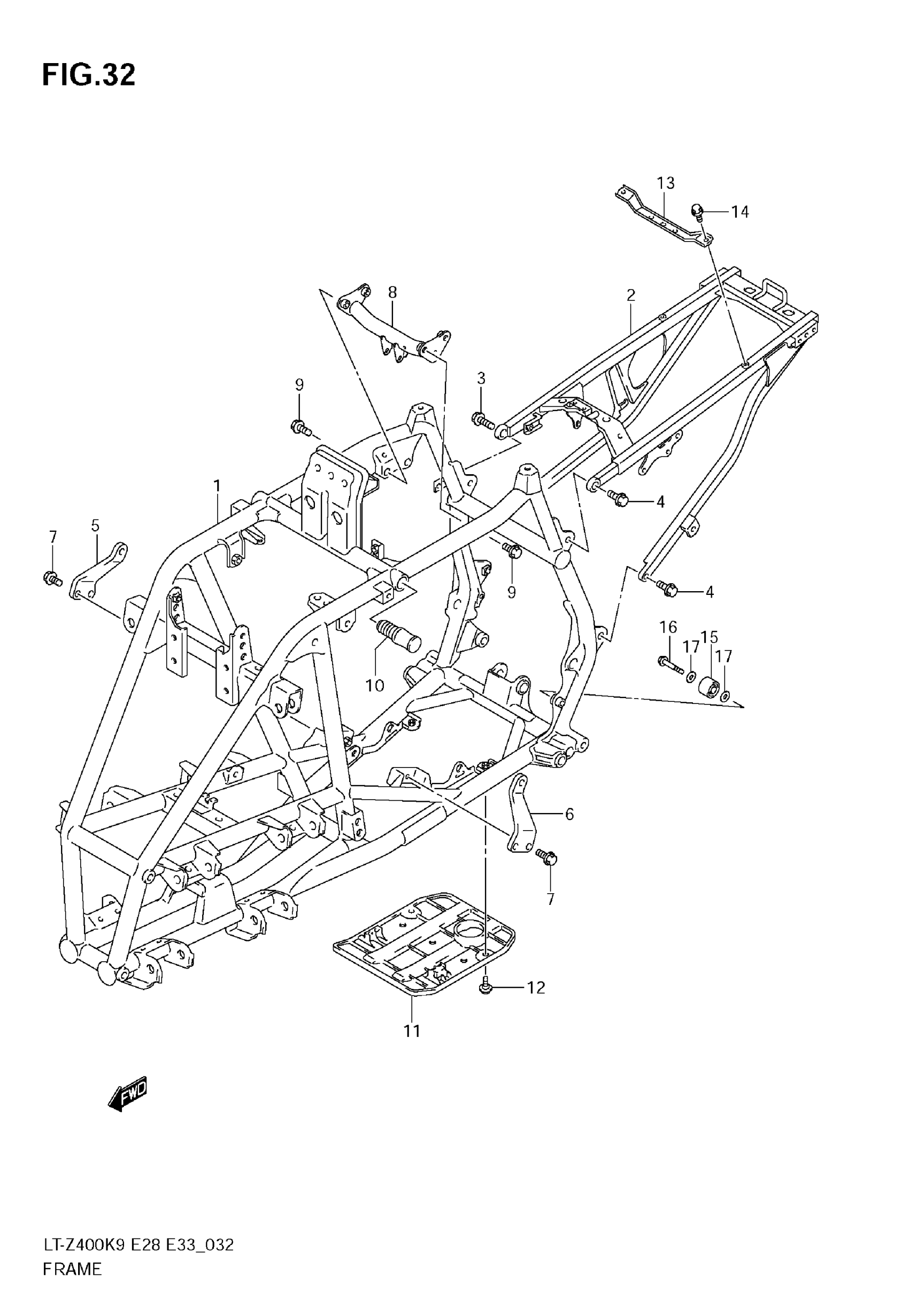

Suzuki LT-Z400 (2009) FRAME Diagram

#

Description
Price

1

FRAME (BLUE) | LT-Z400 This part replaces 41100-33H00-YBA.

41100-33H10-YBA

$2,522.45

1

FRAME (BLACK) | LT-Z400Z

41100-33H00-019

Unavailable

2

RAIL, SEAT (SILVER) | LT-Z400 This part replaces 41200-33H00-YD8.

41200-33H01-YD8

Unavailable

2

RAIL, SEAT (BLACK) | LT-Z400Z

41200-33H01-019

Unavailable

3

BOLT, RH

09103-10421

$4.25

4

BOLT, LH

09103-10424

$4.77

5

PLATE, MOUNT FRONT RH

41911-07G00

$48.38

6

PLATE, MOUNT FRONT LH

41912-07G00

$48.38

7

BOLT

01550-0820A

$2.23

8

PLATE, MOUNT UPPER

41990-07G40

$100.02

9

BOLT

01550-0816B

$2.73

10

GUARD, RADIATOR

43978-33H00

Unavailable

11

PROTECTOR, ENGINE

42511-07G00

$46.22

12

BOLT

09111-06085

$4.54

13

PLATE, BATTERY This part replaces 41560-33H00.

41560-33H01

$32.17

14

BOLT

09103-06286

$2.20

15

ROLLER, CHAIN CONTROL

43910-37F00

$70.53

16

BOLT

09103-08083

$3.70

17

WASHER

09181-08111

$1.93
