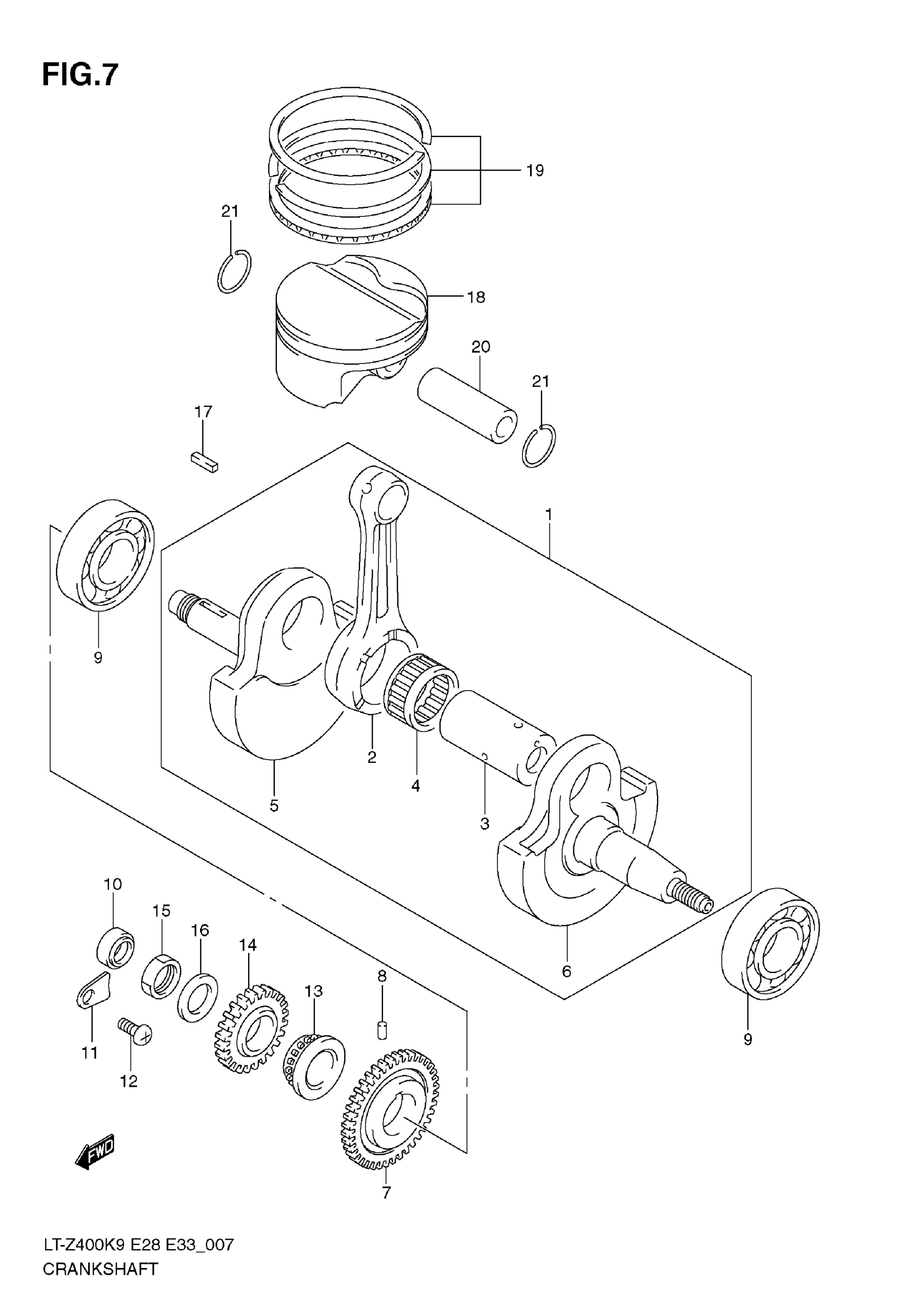

Suzuki LT-Z400 (2009) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 6

12200-33H00

$932.00

2

ROD, CONNECTING

12160-29F10-0B0

$211.82

3

PIN

12210-29F20

$99.63

4

BEARING

09263-35047-0B0

$107.22

5

CRANKSHAFT, RH

12221-07G01

Unavailable

6

CRANKSHAFT, LH

12261-07G00

Unavailable

7

GEAR, BALANCER DRIVE

12661-29F00

$144.45

8

PIN

09261-05005

$1.49

9

BEARING

09262-30100

$88.92

10

OIL SEAL, RH (14X24X6)

09282-14003

$8.24

11

RETAINER, OIL SEAL RH

24742-18A00

$4.35

12

SCREW

02112-0612B

$1.93

13

SPROCKET, CAM CHAIN DRIVE

12731-29F10

$62.32

14

GEAR, PRIMARY DRIVE

21111-29F10

$81.22

15

NUT

09140-18012

$8.37

16

WASHER

09164-18008

$4.19

17

KEY, GEAR

09421-05002

$3.96

18

PISTON

12111-29F00-0F0

$160.16

19

RING SET, PISTON

12140-29F00

$57.78

20

PIN, PISTON

12151-24F10

$19.86

21

CIRCLIP

09381-20004

$1.65
