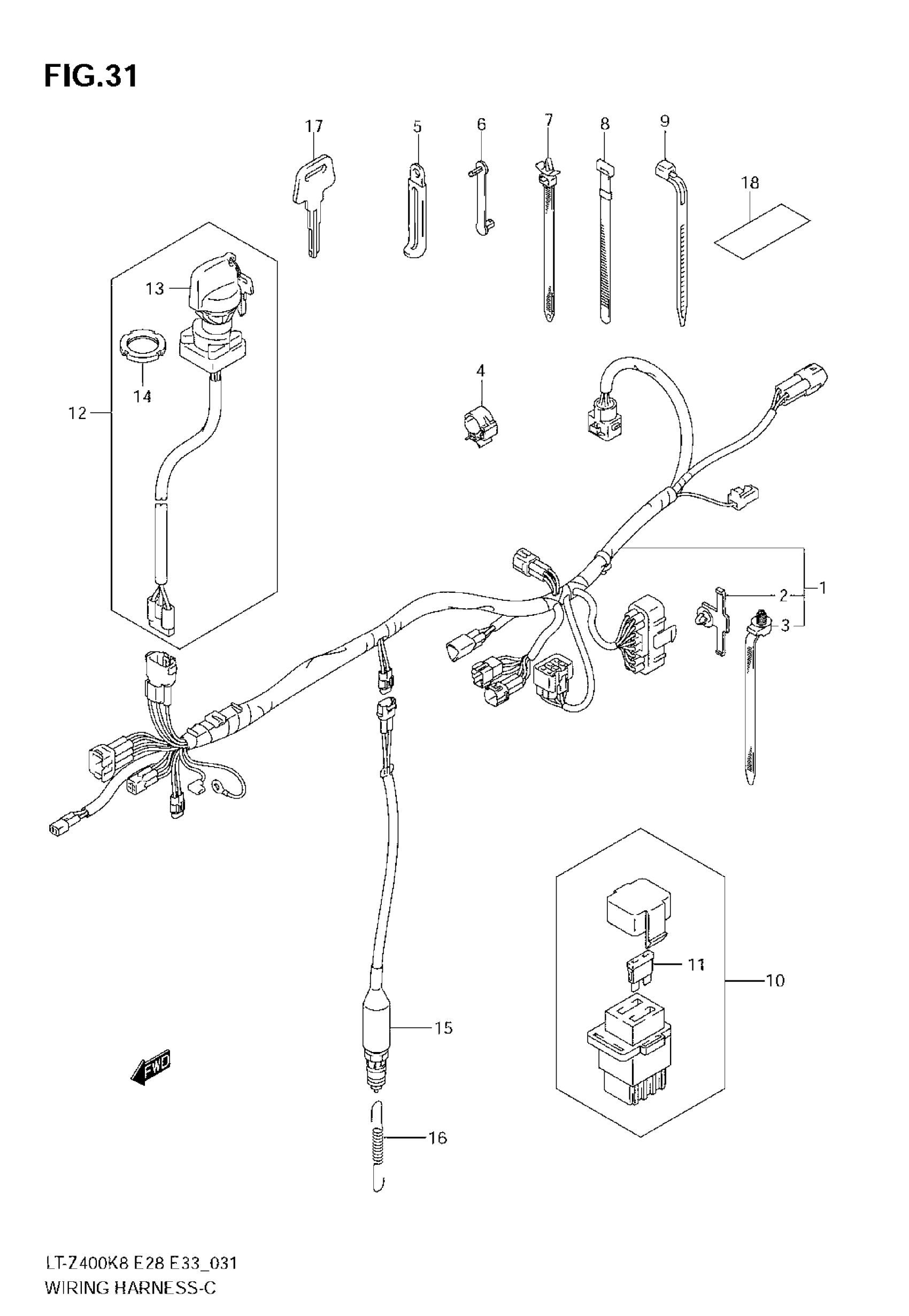

Find the part on the Wiring Harness diagram for your 2008 Suzuki LT-Z400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Suzuki LT-Z400 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING | Includes Item(s) 2 - 3

36610-07G30

1
Out of stock

2

CLAMP

09407-05411

1
Out of stock

3

CLAMP

09407-17403

2
Out of stock

4

CLAMP

09403-20403

1
Out of stock

5

CLAMP (L:135)

09404-06435

1
Out of stock

6

CLAMP (L:33)

09407-03401

3
Out of stock

7

CLAMP (L:90)

09407-11402

1
Out of stock

8

CLAMP (L:120)

09407-12402

2
Out of stock

9

CLAMP (L:125)

09407-14403

1
Out of stock

10

BOX ASSY, FUSE | Includes Item(s) 11 This part replaces 36740-19B10.

36740-24510

1
Out of stock

11

FUSE (10A)

09481-10101

2
Out of stock

12

SWITCH ASSY,IGN | Includes Item(s) 13 - 14 This part replaces 37110-07G30.

37110-07G31

1
Out of stock

13

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

1
Out of stock

14

.NUT,IGNITION SWITCH

37112-24500

1
Out of stock

15

SWITCH ASSY,STO This part replaces 37740-07G01.

37740-07G02

1
Out of stock

16

SPRING

43115-07G00

1
Out of stock

17

KEY,BLANK (TYPE:C) | OPT

37146-19B00

1
Out of stock

17

KEY,BLANK (TYPE:D) | OPT

37146-19B10

1
Out of stock

17

KEY,BLANK (TYPE:E) | OPT

37146-19B20

1
Out of stock

17

KEY,BLANK (TYPE:F) | OPT

37146-19B30

1
Out of stock

18

PROTECTOR, WIRING HARNESS

36920-07G00

1
Out of stock
