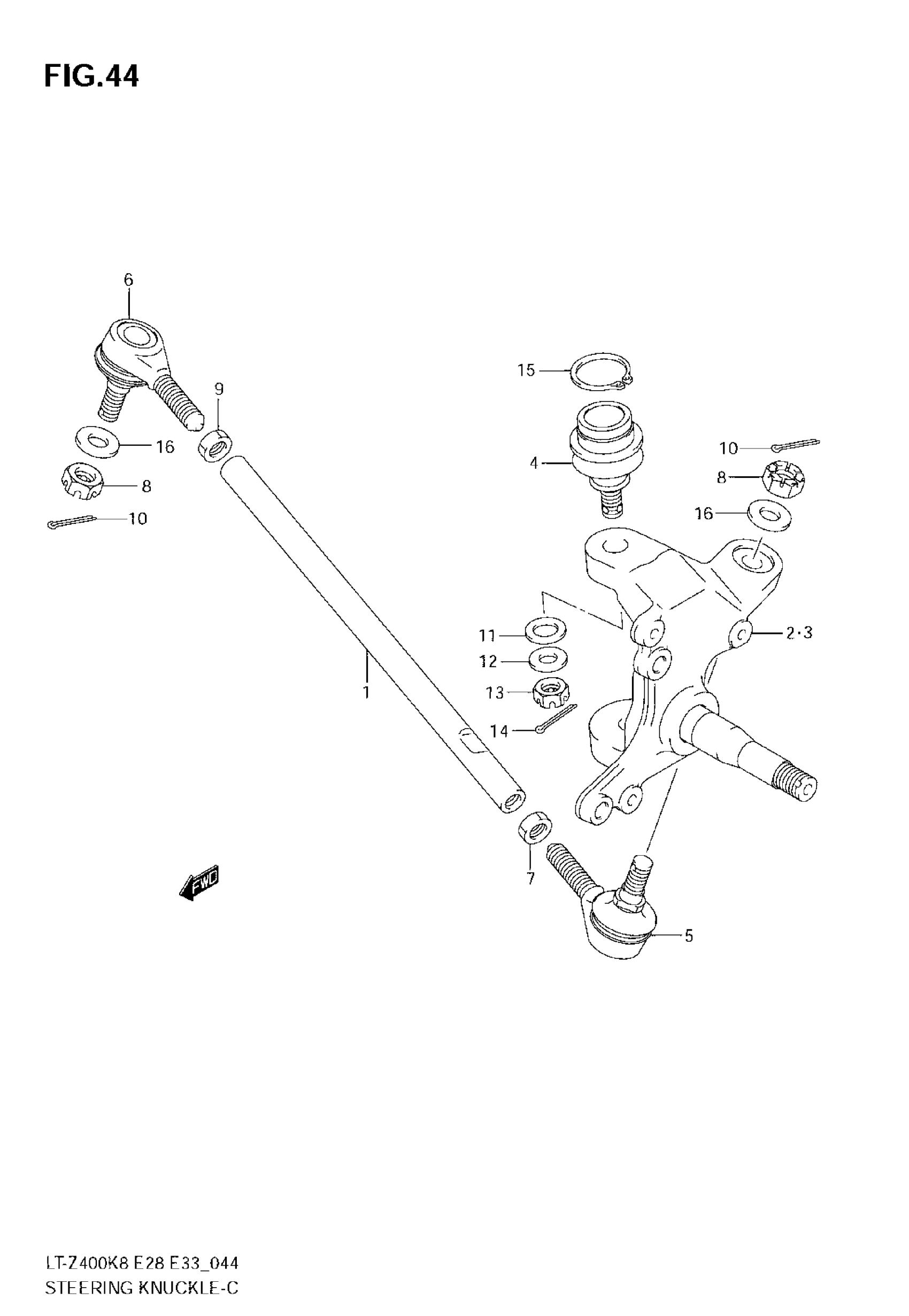

Suzuki LT-Z400 (2008) STEERING KNUCKLE Diagram

#

Description
Price

1

TIE ROD, STEERING

51281-07G00

$19.28

2

KNUCKLE, STEERING RH

51230-07G20

Unavailable

3

KNUCKLE, STEERING LH

51240-07G20

$339.67

4

END, KNUCKLE STEERING UPPER

51210-31G10

$65.76

5

ROD, END RH

51260-21G00

$66.46

6

ROD, END LH

51270-21G00

$66.46

7

NUT, TIE-ROD RH

51283-21G00

$4.17

8

NUT, ROD END

08314-4010B

$2.50

9

NUT, TIE ROD LH

09140-10027

$1.49

10

COTTER PIN, ROD END

04111-2020A

$1.49

11

WASHER, KNUCKLE END

08322-0110B

$2.34

12

WASHER, KNUCKLE END

09162-10010

$3.72

13

NUT, KNUCKLE END

08314-4010B

$2.50

14

COTTER PIN, KNUCKLE END

04111-2020A

$1.49

15

CIRCLIP This part replaces 08331-3130A.

08331-31309

$2.57

16

WASHER, ROD END LOCK

09162-10010

$3.72
