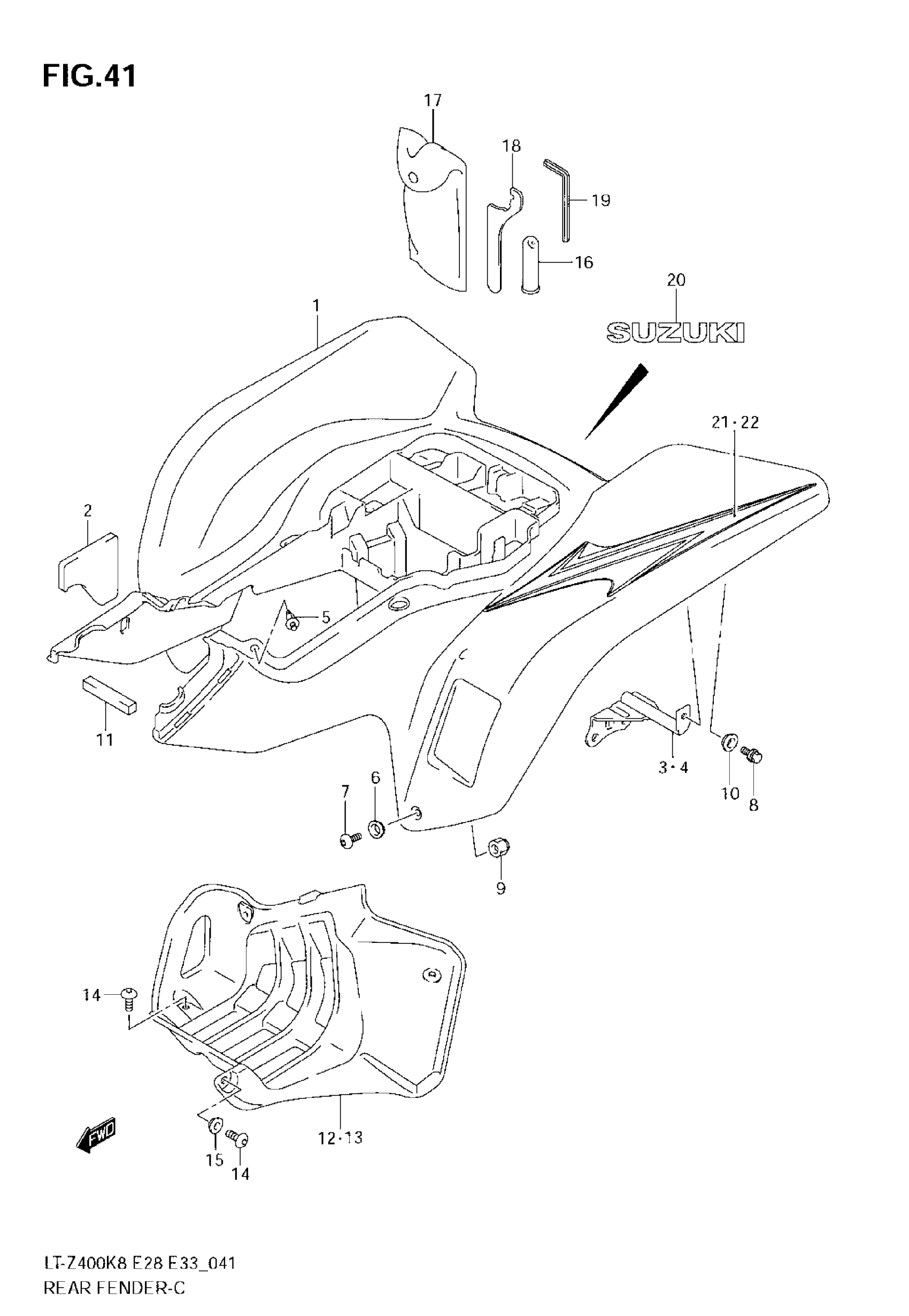

Suzuki LT-Z400 (2008) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (YELLOW)

63111-07G01-YU1

Unavailable

1

FENDER, REAR (WHITE)

63111-07G01-30H

$583.00

1

FENDER, REAR (BLACK) | LT-Z400Z

63111-07G01-019

$894.63

2

SHIELD

63261-07G00

$16.67

3

BRACKET, RH

63140-07G20

$44.55

4

BRACKET, LH

63150-07G20

$44.55

5

CLIP

09409-07333

$2.29

6

WASHER This part replaces 09169-06045.

09169-06055

$2.02

7

BOLT, FRONT

09139-06109

$2.73

8

BOLT, REAR

09103-06286

$2.19

9

NUT

08319-3106B

$2.47

10

WASHER This part replaces 09169-06045.

09169-06055

$2.02

11

CUSHION, CENTER This part replaces 63129-07G00.

53145-05G00

$14.34

12

MUDGUARD, FOOTREST RH (BLACK)

63331-07G10-5PK

$123.87

13

MUDGUARD, FOOTREST LH (BLACK)

63341-07G10-5PK

$123.87

14

BOLT

09139-06109

$2.73

15

WASHER

09169-06071

$2.50

16

GAUGE ASSY,AIR PRESSUR

96200-18A02

$66.48

17

TOOL ASSY This part replaces 09800-21046.

09800-21094

$27.03

18

CLAMP, WRENCH

09822-00004

$15.68

19

HEXAGON SPANNER, 4

09816-00103

$6.70

20

EMBLEM, "SUZUKI" | FOR YU1

68111-19B30-GY8

$11.37

20

EMBLEM, "SUZUKI" | FOR 30H

68111-19B30-8YM

$10.97

20

EMBLEM, "SUZUKI" | LT-Z400Z

68111-19B30-J7A

Unavailable

21

TAPE, REAR FENDER RH | FOR YU1

68175-07G50-END

Unavailable

21

TAPE, REAR FENDER RH | FOR 30H

68175-07G50-ENC

Unavailable

21

TAPE, REAR FENDER RH | LT-Z400Z

68175-07G40-CVL

Unavailable

22

TAPE, REAR FENDER LH | FOR YU1

68176-07G50-END

Unavailable

22

TAPE, REAR FENDER LH | FOR 30H

68176-07G50-ENC

Unavailable

22

TAPE, REAR FENDER LH | LT-Z400Z

68176-07G40-CVL

Unavailable
