2008 Suzuki LT-Z400 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2008 Suzuki LT-Z400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

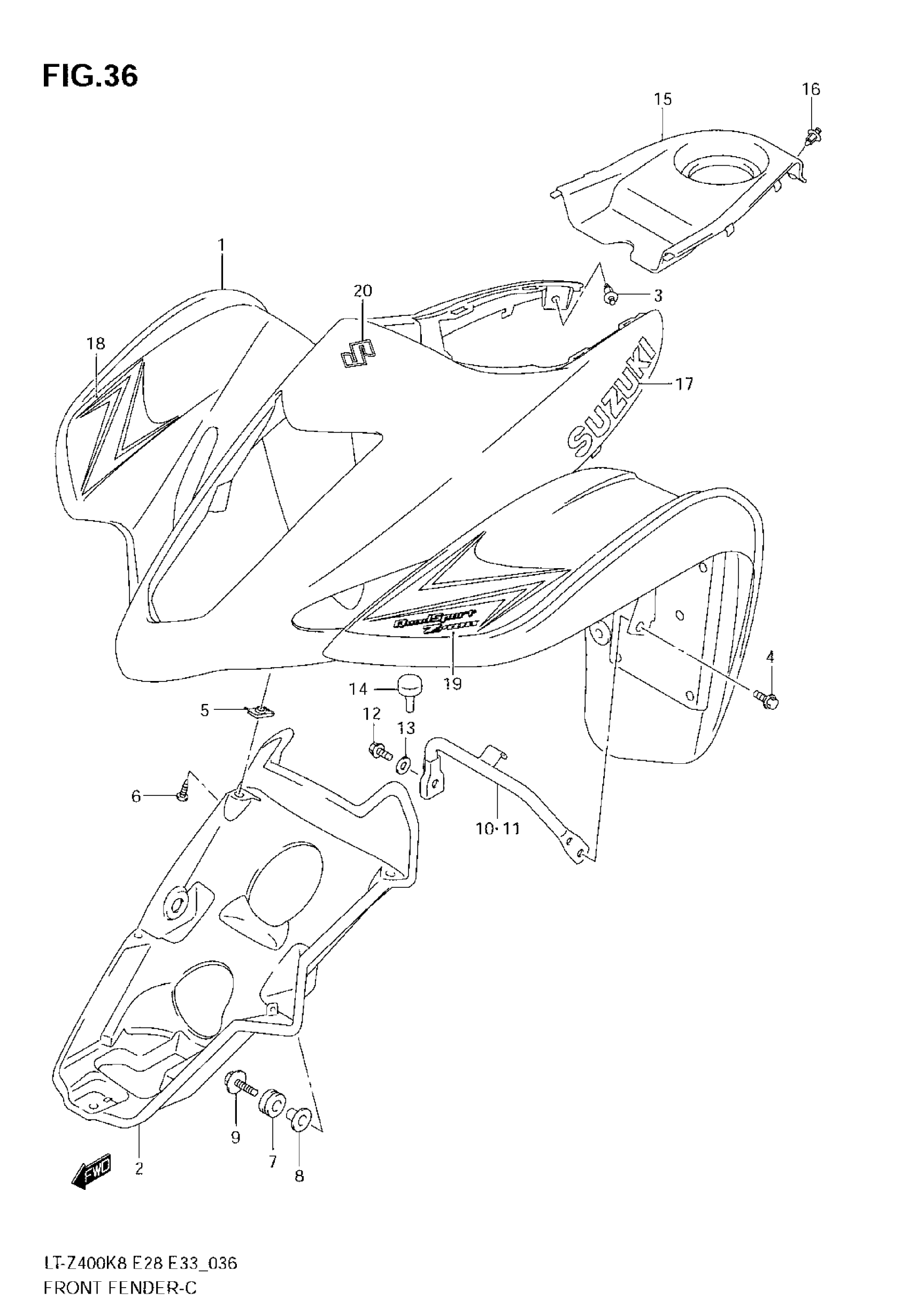

2008 Suzuki LT-Z400 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT (YELLOW)

53111-07G01-YU1

1
Out of stock

1

FENDER, FRONT (WHITE)

53111-07G01-30H

1
Out of stock

1

FENDER, FRONT (BLACK) | LT-Z400Z

53111-07G01-019

1
Out of stock

2

FENDER, FRONT LOWER

53118-07G02

1
Out of stock

3

CLIP

09409-07333

4
Out of stock

4

BOLT

09111-06096

2
Out of stock

5

NUT

09148-05038

2
Out of stock

6

SCREW

03541-0516B

5
Out of stock

7

CUSHION

09320-11008

2
Out of stock

8

SPACER

09169-06074

2
Out of stock

9

BOLT

01550-0625B

2
Out of stock

10

BRACKET, RH

53210-07G00

1
Out of stock

11

BRACKET, LH

53220-07G00

1
Out of stock

12

BOLT

09100-06162

2
Out of stock

13

WASHER

09160-06153

2
Out of stock

14

CUSHION

09321-06033

2
Out of stock

15

FENDER, CENTER (YELLOW)

53119-07G01-YU1

1
Out of stock

15

FENDER, CENTER (WHITE)

53119-07G01-30H

1
Out of stock

15

FENDER, CENTER (BLACK) | LT-Z400Z

53119-07G01-019

1
Out of stock

16

CLIP

09409-07333

2
Out of stock

17

EMBLEM,SUZUKI | FOR YU1 This part replaces 68661-29F00-GY8.

68661-29F01-GY8

2
Out of stock

17

EMBLEM,SUZUKI | FOR 30H This part replaces 68661-29F00-8YM.

68661-29F01-8YM

2
Out of stock

17

EMBLEM,SUZUKI | LT-Z400Z This part replaces 68661-29F00-J7A.

68661-29F01-J7A

2
Out of stock

18

TAPE, FRONT RH | FOR YU1

68155-07GF0-END

1
Out of stock

18

TAPE, FRONT RH | FOR 30H

68155-07GF0-ENC

1
Out of stock

18

TAPE, FRONT RH | LT-Z400Z

68155-07GD0-CVL

1
Out of stock

19

TAPE, FRONT LH | FOR YU1

68156-07GF0-EMA

1
Out of stock

19

TAPE, FRONT LH | FOR 30H

68156-07GF0-ELZ

1
Out of stock

19

TAPE, FRONT LH | LT-Z400Z

68156-07GD0-DUL

1
Out of stock

20

EMLBEM "S" This part replaces 68151-07G10-YCF.

68151-07G11-YCF

1
Out of stock
