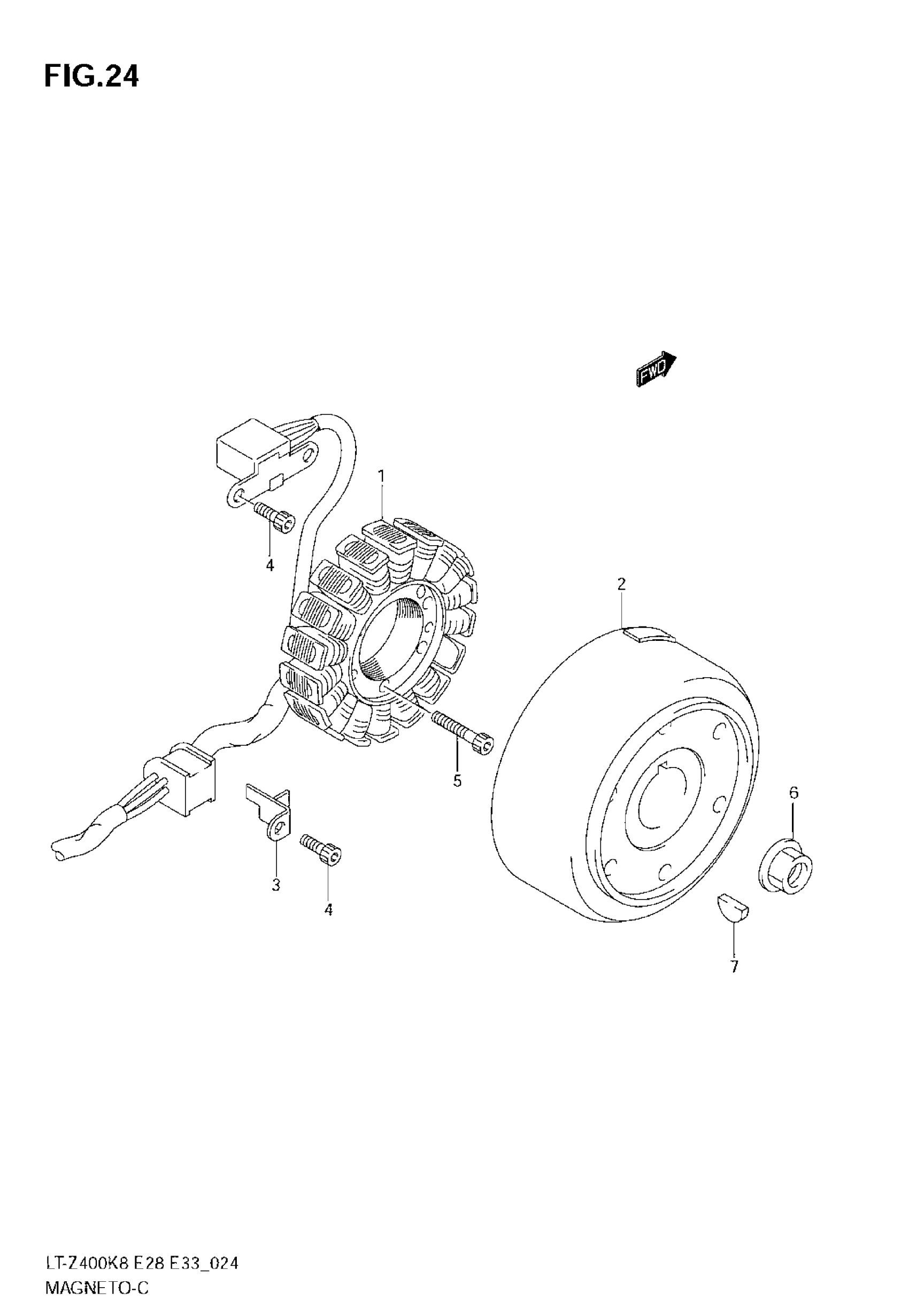

Suzuki LT-Z400 (2008) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY This part replaces 32101-07G00.

32101-07G01

$490.42

2

ROTOR ASSY

32102-07G00

$634.23

3

CLAMP, MAGNETO LEAD NO.1

32371-13E00

$3.56

4

BOLT, PULSER/CLAMP

07130-0512B

$2.50

5

BOLT, STATOR

07130-0525B

$2.52

6

NUT, MAGNETO ROTOR

31792-07G00

$12.38

7

KEY

09420-04008

$3.42
