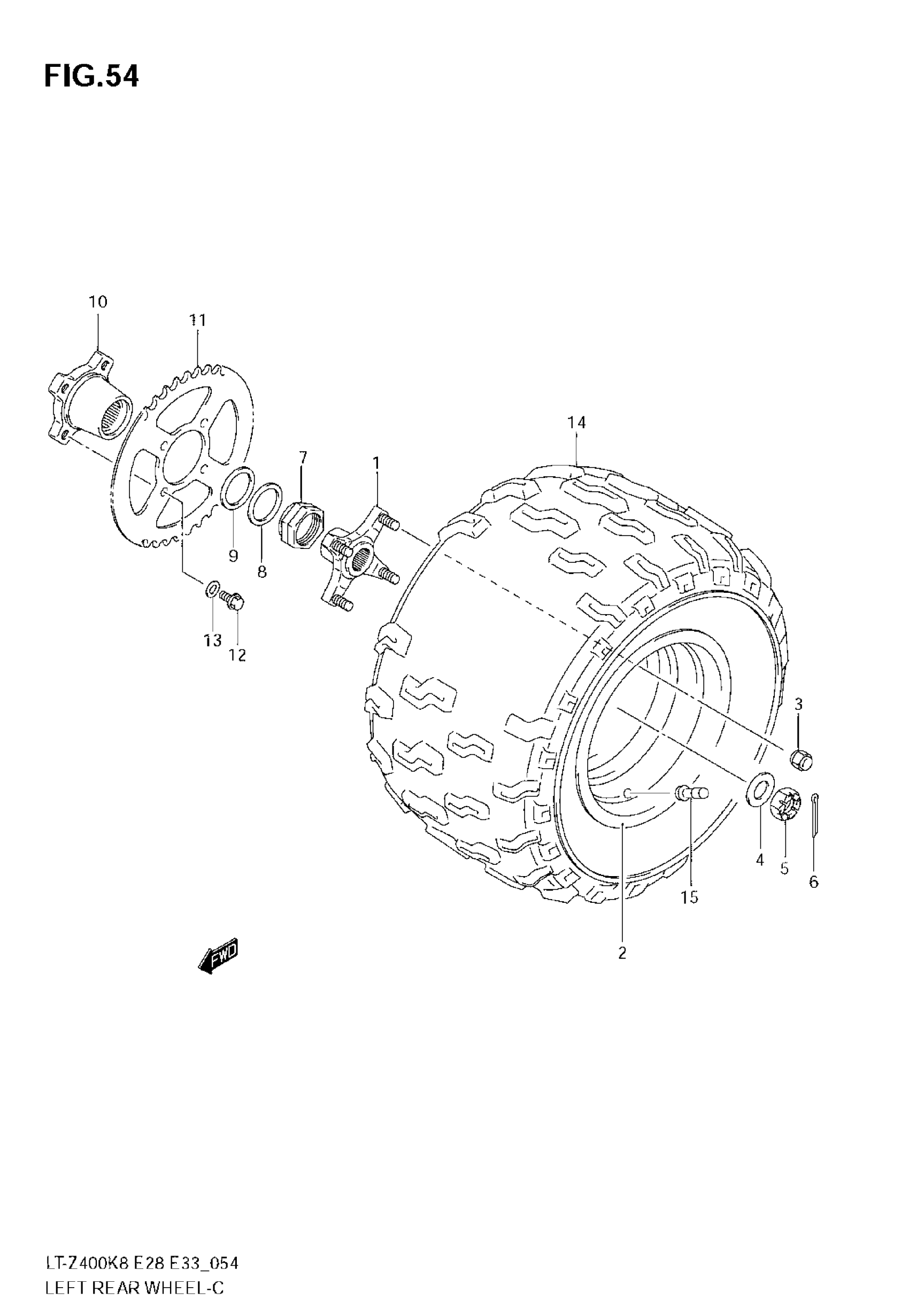

Suzuki LT-Z400 (2008) LEFT REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL (BLACK)

64110-07G10-019

$245.55

2

RIM, REAR WHEEL (9X8.0AT) | LT-Z400K8

65310-07G10

$559.05

2

RIM, REAR WHEEL (9X8.0AT) | LT-Z400ZK8

65310-07G20-YPJ

Unavailable

3

NUT

09159-10114

$5.11

4

WASHER

09164-20002

$3.70

5

NUT, HUB

09141-20002

$5.11

6

COTTER PIN

04111-4035A

$1.49

7

NUT, REAR AXLE

64870-19A10

$166.76

8

WASHER, REAR AXLE NO.1

64723-07G00

$14.00

9

WASHER, REAR AXLE NO.2

64724-07G00

$12.58

10

FLANGE, REAR SPROCKET MOUNTING

64611-07G11

$193.52

11

SPROCKET, REAR

64511-07G10

$103.33

12

BOLT

09103-10354

$4.17

13

WASHER

09164-10011

$3.37

14

TIRE, REAR

65110-07G00

$305.07

15

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85
