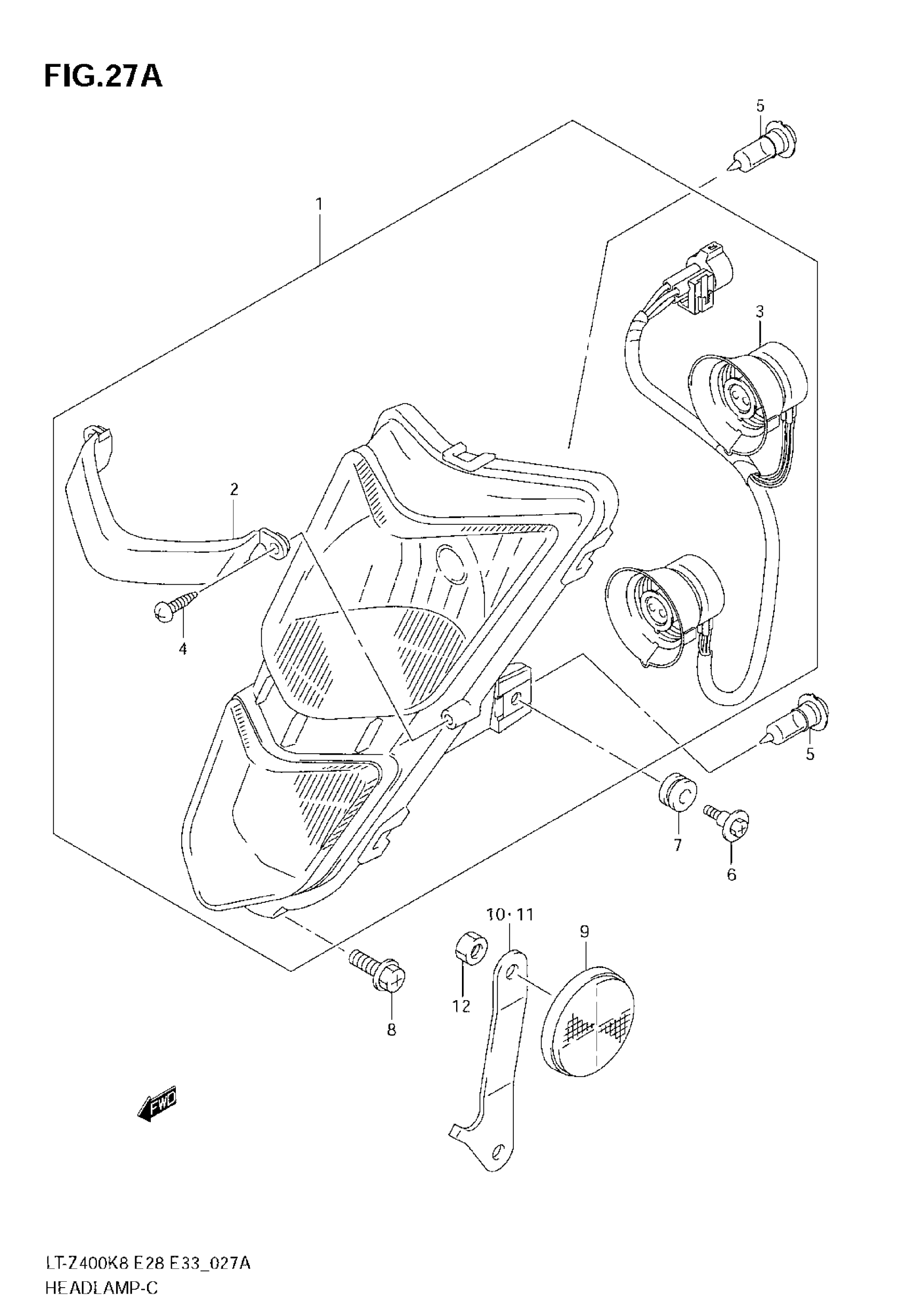

Suzuki LT-Z400 (2008) HEADLAMP (LT-Z400Z) Diagram

#

Description

Price

1

HEADLAMP ASSY (BLACK) | FOR 019; Includes Item(s) 2 - 4

35100-07G00-019

$375.08

2

MOLDING (BLACK) | FOR 019

35143-07G00-019

$32.77

3

SOCKET/CORD ASSY

35171-07G00

$63.58

4

SCREW

03511-0412A

$1.49

5

BULB (12V,30/30W) This part replaces 09471-12097.

09471-12093

$29.38

6

SCREW, HEADLAMP

09139-06118

$3.25

7

CUSHION

09320-10501

$6.23

8

SCREW

02162-0616B

$2.03

9

REFLEX REFLECTOR ASSY, FR | E28

35950-14A00

$16.94

10

BRACKET,FR SIDE | E28 This part replaces 35956-07G01.

35956-07G0V

Unavailable

11

BRACKET, FR SIDE, LH | E28

35957-07G01

Unavailable

12

NUT | E28

08316-1005B

$2.50
