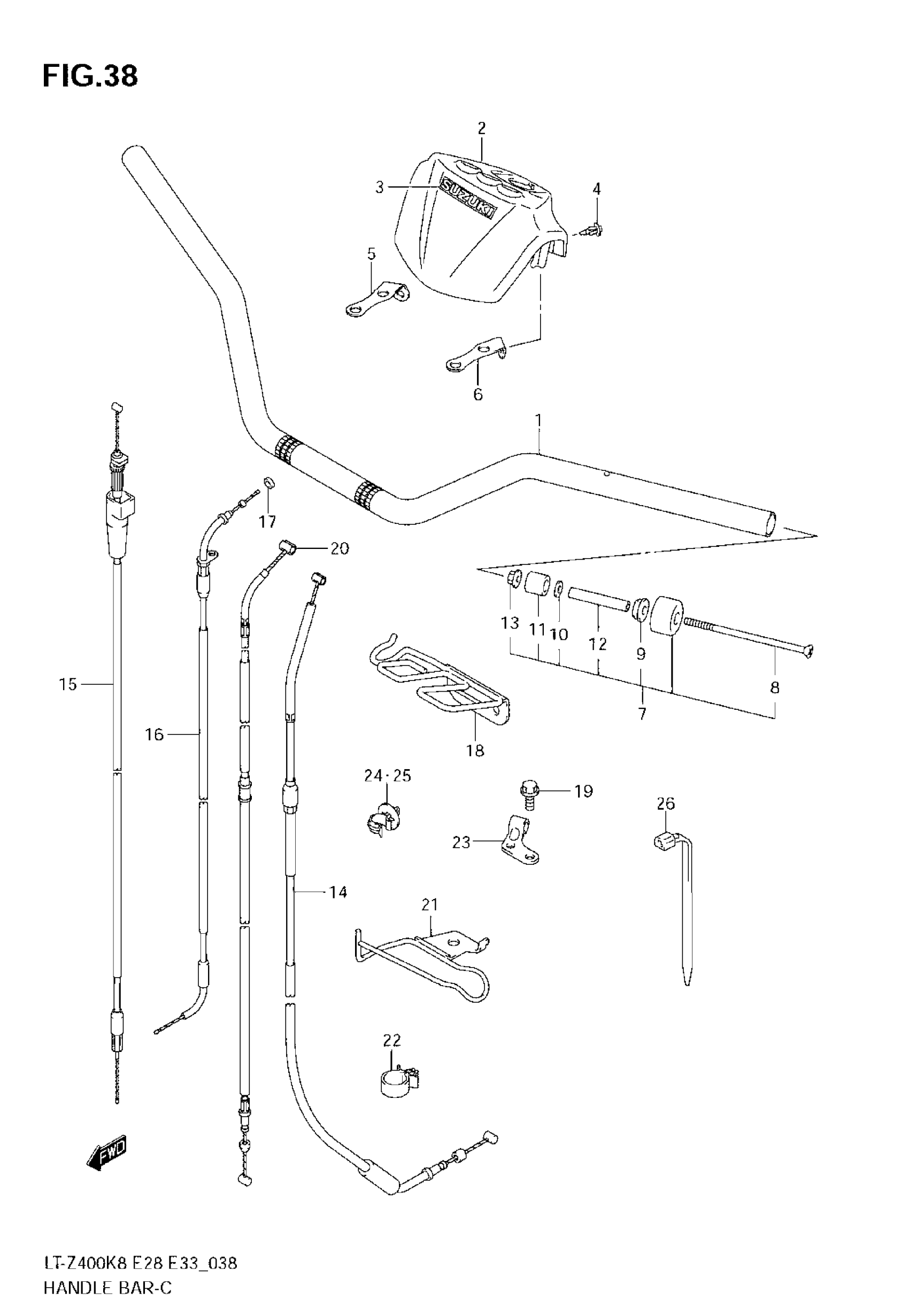

Suzuki LT-Z400 (2008) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-07G10

$132.33

2

COVER, STEERING HEAD | FOR YU1

56171-07G01-GY8

$64.82

2

COVER, STEERING HEAD | FOR 30H

56171-07G01-8YM

$66.05

2

COVER, STEERING HEAD | LT-Z400Z

56171-07G01-60K

$64.82

3

EMBLEM | FOR YU1

68721-05D00-GY8

$12.42

3

EMBLEM | FOR 30H This part replaces 68721-05D00-BJB.

68721-05D01-BJB

$10.25

3

EMBLEM | LT-Z400Z

68721-05D00-J7A

Unavailable

4

CLIP (BLACK)

09409-06314-5PK

$2.78

5

BRACKET, RH

56411-07G00

$8.60

6

BRACKET, LH

56421-07G00

$8.60

7

BALANCER SET,HN | Includes Item(s) 8 - 13 This part replaces 56200-07850.

56200-07851

Unavailable

8

SCREW

09127-06018

$3.38

9

EXPANDER,HANDLE This part replaces 56272-23F00.

56272-23F20

$3.43

10

WASHER (6.5X14X2.0)

09160-06126

$1.91

11

.EXPANDER,HANDLE BALANCER

56272-42F00

$5.45

12

SPACER

56276-17D00

$5.07

13

NUT

09159-06024

$2.11

14

CABLE, CLUTCH

58200-07G10

$35.88

15

CABLE ASSY, THROTTLE

58300-07G10

$45.13

16

CABLE, STARTER

58410-07G00

$37.11

17

WASHER

09320-06503

$2.63

18

GUIDE, CABLE

58620-07G00

Unavailable

19

BOLT

01550-0612B

$2.39

20

CABLE, PARKING BRAKE

58810-07G10

$85.15

21

GUIDE, PARKING CABLE

58631-07G10

Unavailable

22

CLAMP

09403-14304

$3.21

23

STOPPER, CABLE

58634-29F00

$12.57

24

CLAMP

09403-07331

$3.50

25

CLAMP

09403-07327

$3.93

26

CLAMP, CABLE

09407-14403

$2.26
