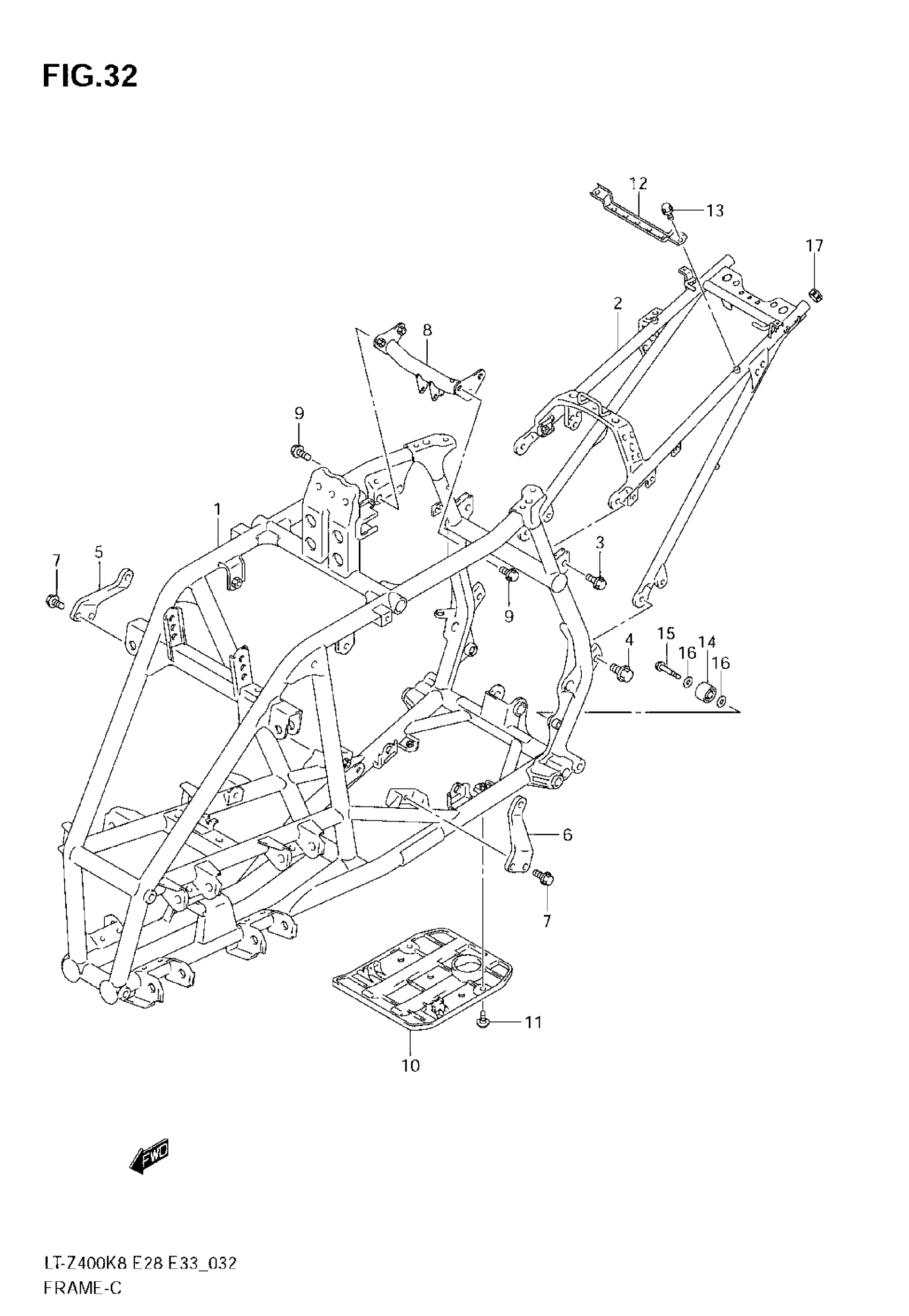

Suzuki LT-Z400 (2008) FRAME Diagram

#

Description
Price

1

FRAME (BLUE)

41100-07G30-YBA

Unavailable

1

FRAME (RED) | LT-Z400Z

41100-07G30-YHL

Unavailable

2

RAIL, SEAT (SILVER) | E33

41200-07G30-YD8

Unavailable

2

RAIL, SEAT (SILVER) | E28

41200-07G40-YD8

Unavailable

3

BOLT, UPPER

09103-10378

$3.07

4

BOLT, LOWER

09103-10310

$3.10

5

PLATE, MOUNT FRONT RH

41911-07G00

$48.38

6

PLATE, MOUNT FRONT LH

41912-07G00

$48.38

7

BOLT

01550-0820B

$2.83

8

PLATE, MOUNT UPPER This part replaces 41990-07G30.

41990-07G40

$100.02

9

BOLT

01550-0820B

$2.83

10

PROTECTOR, ENGINE

42511-07G00

$46.22

11

BOLT

09111-06085

$4.54

12

PLATE, BATTERY

41560-07G30

$14.49

13

BOLT

09103-06240

$3.08

14

ROLLER, CHAIN CONTROL

43910-37F00

$70.53

15

BOLT

09103-08083

$3.70

16

WASHER

09181-08111

$1.93

17

CAP, SEAT RAIL

43978-24500

$8.42
