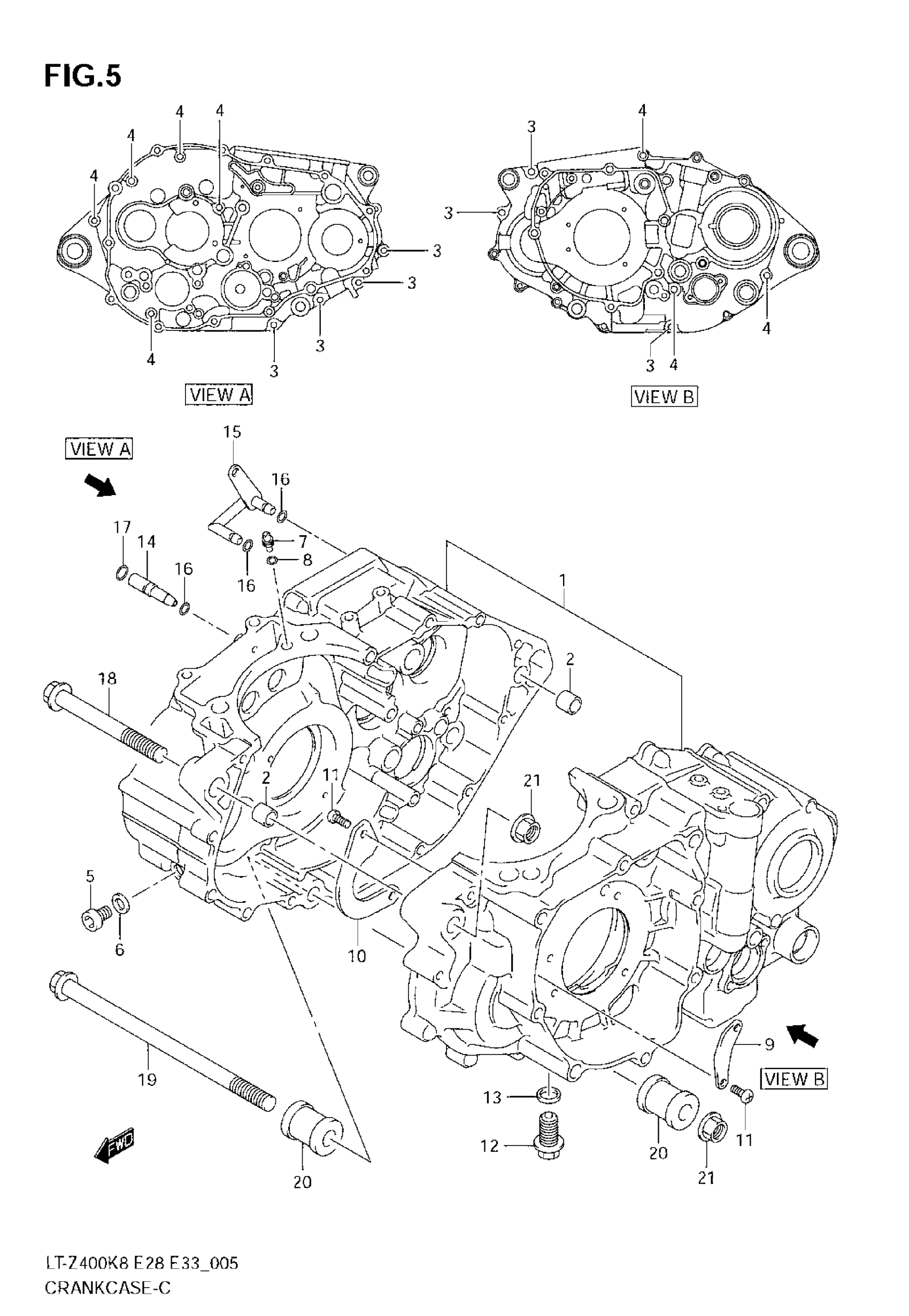

Suzuki LT-Z400 (2008) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 4

11301-07812

$1,318.10

2

PIN

04211-13189

$2.19

3

BOLT

01547-0640B

$2.75

4

BOLT

01547-0670B

$3.29

5

PLUG, OIL GALLERY

09248-10010

$4.17

6

GASKET

09168-10002

$2.13

7

JET, OIL GALLERY CYLINDER

09493-28010

$16.57

8

O RING

09280-04004

$1.91

9

SEPARATOR, OIL NO.1

11323-29F00

$3.22

10

SEPARATOR, OIL NO.2

11324-29F00

$5.17

11

SCREW, SEPARATOR

09125-06110

$2.12

12

PLUG, OIL DRAIN

09247-12106

$2.73

13

GASKET

09168-12002

$1.59

14

PIPE, OIL INNER NO.1

11451-29F00

Unavailable

15

PIPE, T/M OIL INNER NO.2

11460-07G00

$34.15

16

O RING (D:1.9,ID:4.8)

09280-05004

$2.11

17

O RING (D:1.9,ID:6.8)

09280-07004

$1.53

18

BOLT (10X100)

09103-10110

$8.43

19

BOLT (10X180)

09103-10136

$9.32

20

SPACER, ENGINE MOUNTING (L:30)

11611-09F51

$17.67

21

NUT

09159-10115

$3.55
