Description

Price

1

CLEANER ASSY,AI | Includes Item(s) 2 - 17 This part replaces 13700-07G10.

13700-07G11

$356.53

2

FILTER

13780-07G00

$29.36

3

HOLDER

13791-03G00

$8.35

4

STOPPER, HOLDER

13792-03G00

$6.89

5

SCREW

02142-0616A

$1.41

6

TUBE, OUTLET

13881-07G00

$65.62

7

JOINT

13858-14D20

$7.11

8

.PLUG

13859-41B10

$7.26

9

CLIP

09401-14301

$2.17

10

CLAMP (CLEANER SIDE)

09402-82208

$5.74

11

CLAMP (CARBURETOR SIDE)

09402-64203

$6.12

12

TRAP, FLAME This part replaces 13810-07G00.

13810-07G01

$18.16

13

CAP, AIR CLEANER This part replaces 13740-07G01.

13740-07G02

$43.84

14

GASKET

13746-07G00

$4.51

15

JOINT, INLET

13891-07G00

$16.62

16

DUCT, INLET

13896-07G00

$34.88

17

CLAMP This part replaces 09402-56208.

09402-56901

$4.99

18

BOLT

01550-0616B

$2.53

19

..BOLT

01547-0620B

$2.50

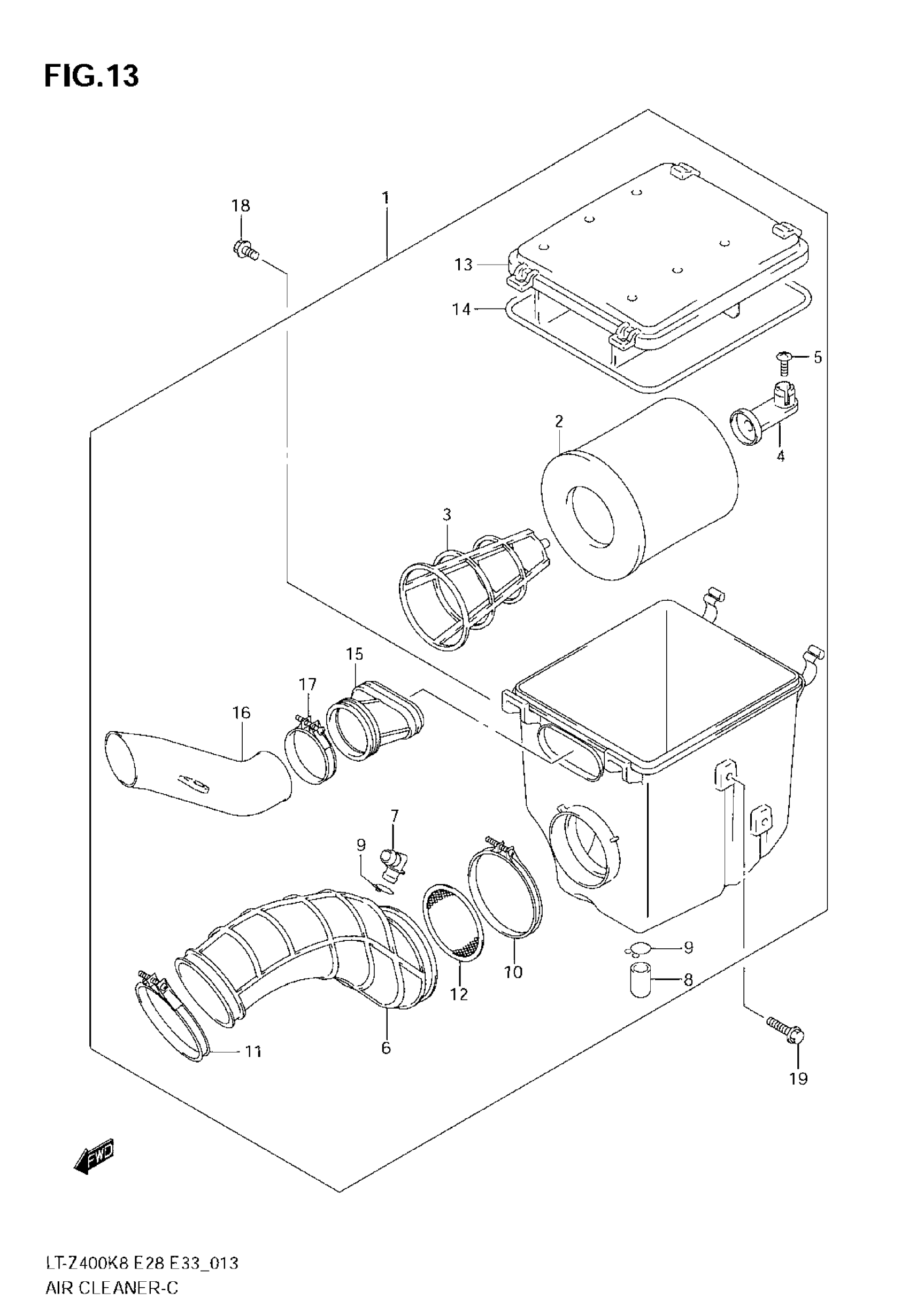

Suzuki LT-Z400 (2008) AIR CLEANER Diagram
