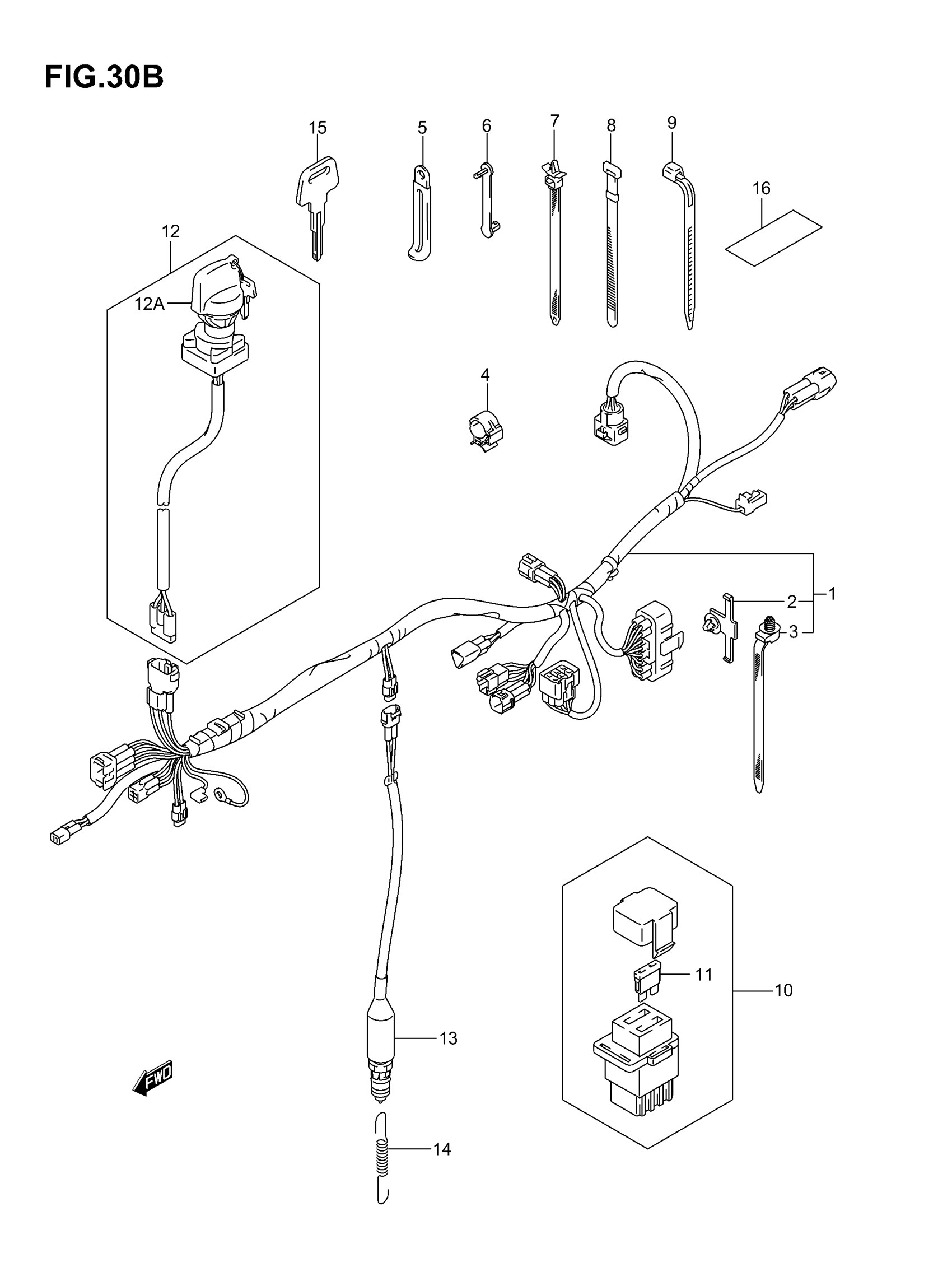

Suzuki LT-Z400 (2007) WIRING HARNESS (MODEL K5/K6/K7) Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2 - 3

36610-07G30

$410.45

2

CLAMP

09407-05411

Unavailable

3

CLAMP

09407-17403

$4.91

4

CLAMP

09403-20403

$3.58

5

CLAMP (L:135)

09404-06435

$3.68

6

CLAMP (L:33)

09407-03401

$3.07

7

CLAMP (L:90)

09407-11402

$1.80

8

CLAMP (L:120)

09407-12402

$3.04

9

CLAMP (L:125)

09407-14403

$2.26

10

BOX ASSY, FUSE | Includes Item(s) 11 This part replaces 36740-19B10.

36740-24510

Unavailable

11

FUSE (10A)

09481-10101

$2.07

12

SWITCH ASSY,IGN | Includes Item(s) 12A This part replaces 37110-07G30.

37110-07G31

$136.12

12A

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.99

13

SWITCH ASSY,STO This part replaces 37740-07G01.

37740-07G02

$78.70

14

SPRING

43115-07G00

$5.95

15

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

15

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07

15

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$8.07

15

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$8.07

16

PROTECTOR, WIRING HARNESS | MODEL K6/K7

36920-07G00

Unavailable
