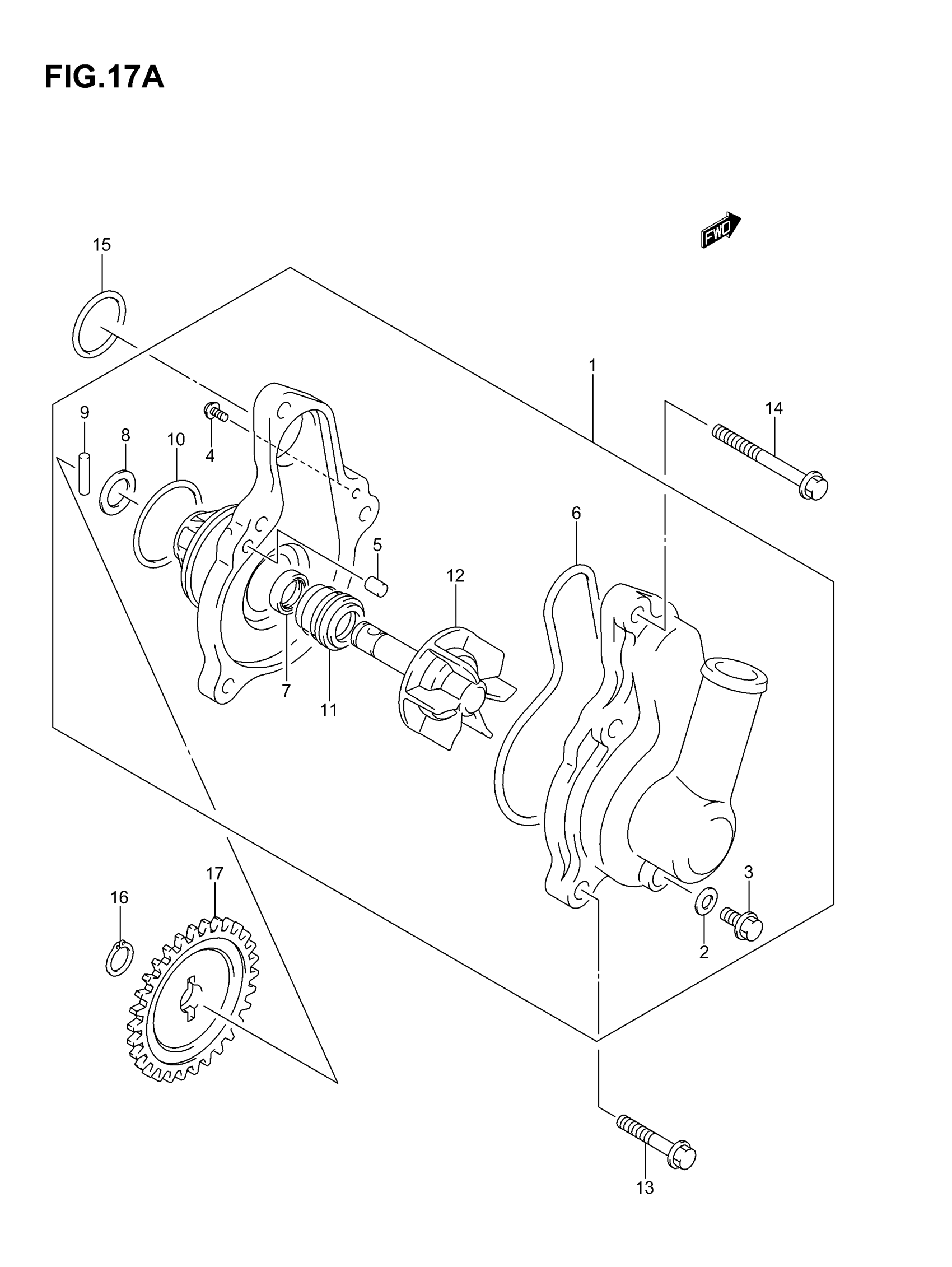

Suzuki LT-Z400 (2007) WATER PUMP (MODEL K5/K6/K7) Diagram

#

Description
Price

1

PUMP ASSY,WATER | Includes Item(s) 2 - 12 This part replaces 17400-07G00.

17400-33H01

$183.93

2

GASKET

17413-28C10

$2.14

3

BOLT

17415-43D00

$4.35

4

SCREW

17416-07G00

Unavailable

5

PIN

17417-07G00

Unavailable

6

O RING

17418-07G00

$10.23

7

OIL SEAL

17431-07G00

$9.89

8

WASHER

17432-07G00

$2.60

9

PIN

17433-07G00

$3.65

10

.O-RING

17435-33400

$15.29

11

.SEAL,MECHANICAL This part replaces 17470-02F00.

17470-02F11

$29.22

12

IMPELLER/SHAFT

17491-07G00

$52.33

13

BOLT

09103-06204

$2.82

14

BOLT

09103-06209

$3.30

15

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.65

16

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.78

17

GEAR, WATER PUMP DRIVEN

17461-29F00

$35.76
