Description

Price

1

PUMP ASSY,WATER | Includes Item(s) 2 - 7 This part replaces 17400-29F00.

17400-29F01

$144.14

2

IMPELLER/SHAFT

17491-29F00

$44.50

3

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$29.22

4

OIL SEAL

17419-29F00

$9.89

5

BEARING

08110-69000

$19.23

6

.E-RING This part replaces 08332-11086.

08332-1108A

$1.78

7

.O-RING

17435-33400

$15.29

8

CASE, WATER PUMP

17410-29F21

$101.87

9

O RING

17435-29F00

$10.23

10

BOLT This part replaces 01547-06103.

01547-0610B

$2.45

11

GASKET (6.2X11X1.2)

09168-06004

$1.49

12

BOLT (6X30)

09103-06204

$2.82

13

BOLT

09103-06209

$3.30

14

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.65

15

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.78

16

GEAR, WATER PUMP DRIVEN

17461-29F00

$35.76

17

WASHER

09181-10158

$1.97

18

PIN

09261-04001

$1.72

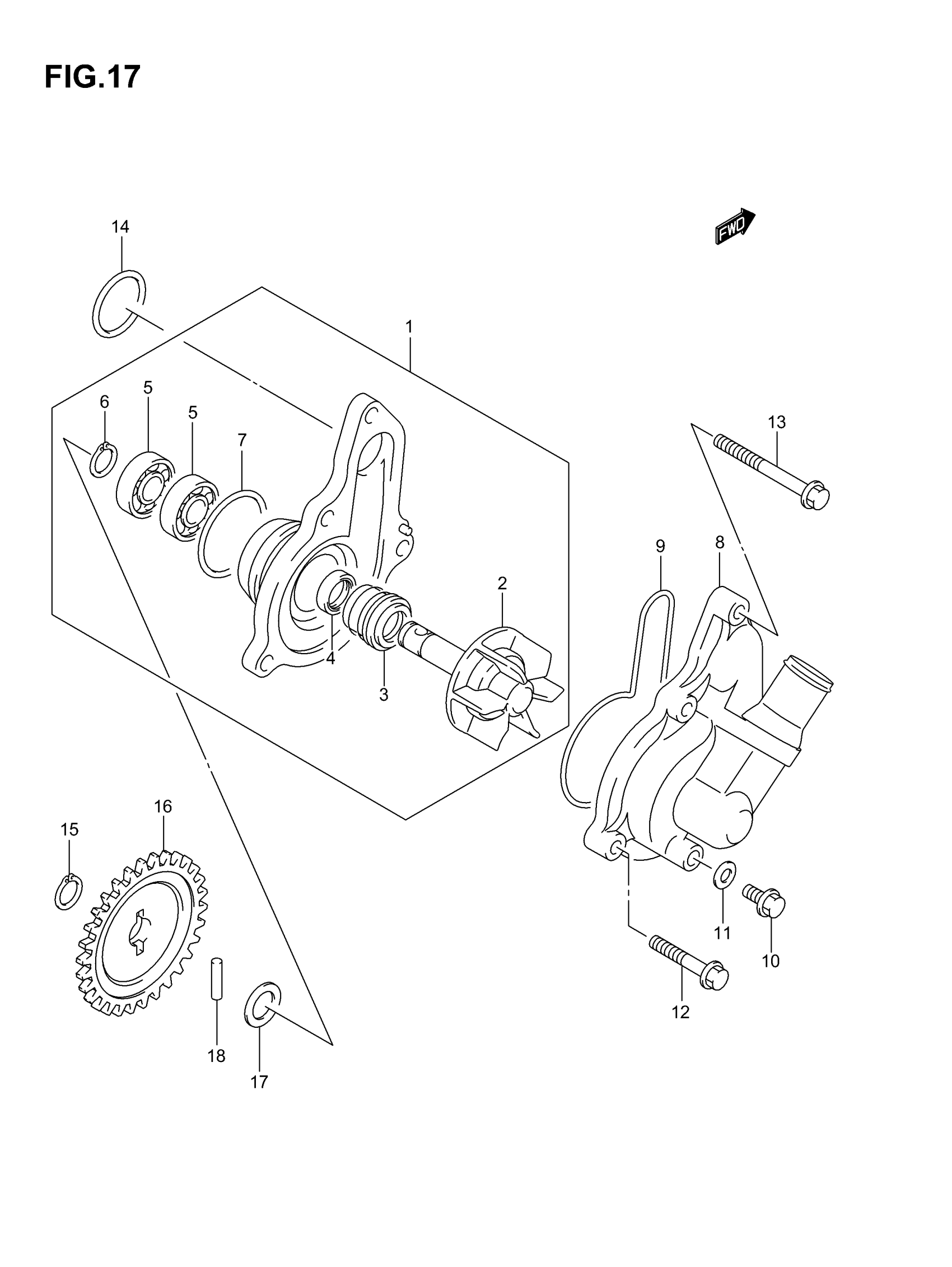

Suzuki LT-Z400 (2007) WATER PUMP (MODEL K3/K4) Diagram
