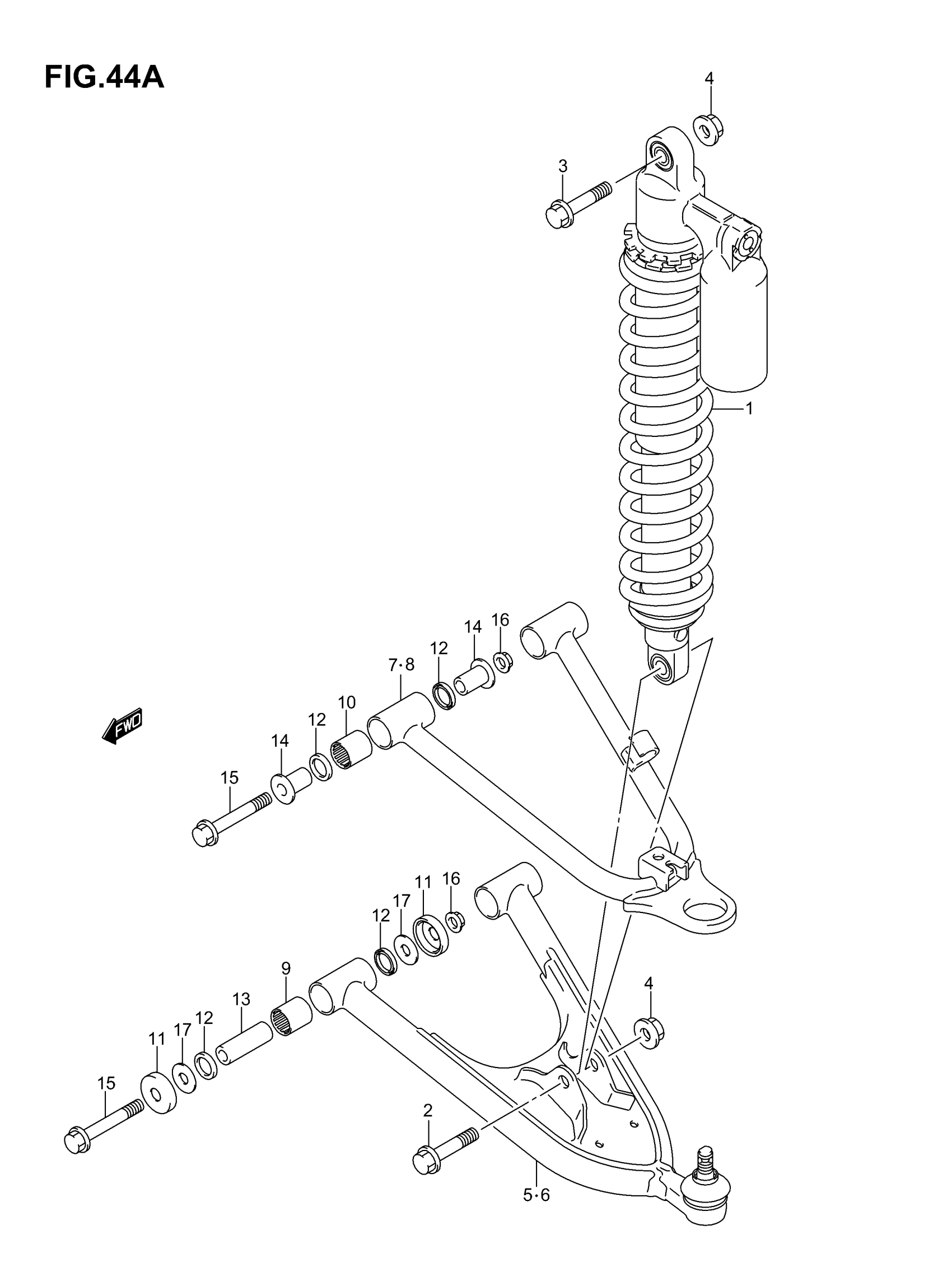

Suzuki LT-Z400 (2007) SUSPENSION ARM (MODEL K5/K6/K7) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K5 E33 FOR YU1 This part replaces 52100-07G21-163.

52100-07G22-163

Unavailable

1

ABSORBER ASSY, FRONT SHOCK (WHITE) | MODEL K5 E33 FOR 30H This part replaces 52100-07G21-28W.

52100-07G22-28W

Unavailable

1

ABSORBER ASSY, FRONT SHOCK (YELLOW) | MODEL K5 E28 FOR YU1

52100-07G31-163

Unavailable

1

ABSORBER ASSY, FRONT SHOCK (WHITE) | MODEL K5 E28 FOR 30H

52100-07G31-28W

Unavailable

1

ABSORBER ASSY, FRONT SHOCK (RED) | MODEL K6 E33 FOR YU1 This part replaces 52100-07G21-YKS.

52100-07G22-YKS

Unavailable

1

ABSORBER ASSY, FRONT SHOCK (WHITE) | MODEL K6 E33 FOR 30H This part replaces 52100-07G21-28W.

52100-07G22-28W

Unavailable

1

ABSORBER ASSY, FRONT SHOCK (RED) | MODEL K6 E28 FOR YU1

52100-07G31-YKS

Unavailable

1

ABSORBER ASSY, FRONT SHOCK (WHITE) | MODEL K6 E28 FOR 30H

52100-07G31-28W

Unavailable

1

ABSORBER ASSY, FRONT SHOCK (RED) | MODEL K7 E33 FOR YU1 This part replaces 52100-07G21-YKS.

52100-07G22-YKS

Unavailable

1

ABSORBER ASSY, FRONT SHOCK (WHITE) | MODEL K7 E33 FOR 019/30H This part replaces 52100-07G21-28W.

52100-07G22-28W

Unavailable

1

ABSORBER ASSY, FRONT SHOCK (RED) | MODEL K7 E28 FOR YU1

52100-07G31-YKS

Unavailable

1

ABSORBER ASSY, FRONT SHOCK (WHITE) | MODEL K7 E28 FOR 019/30H

52100-07G31-28W

Unavailable

2

BOLT, LOWER (10X48)

09103-10352

$6.38

3

BOLT, UPPER (10X38)

09103-10351

$6.75

4

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.21

5

ARM ASSY, SUSPENSION LOWER RH This part replaces 52410-07G10-YD8.

52410-07G20-YD8

$337.60

6

ARM ASSY, SUSPENSION LOWER LH This part replaces 52420-07G10-YD8.

52420-07G20-YD8

$337.60

7

ARM ASSY, SUSPENSION UPPER RH

52430-07G10-YD8

Unavailable

8

ARM ASSY, SUSPENSION UPPER LH

52440-07G10-YD8

$243.03

9

BEARING, SUSPENSION ARM PIVOT

09263-17033

$30.52

10

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$19.09

11

SEAL,DUST This part replaces 52454-43B00.

52454-43B01

$8.73

12

.SEAL,OIL (17X24X3) This part replaces 09285-17001.

09285-17007

$3.38

13

SPACER, LOWER

52455-43B00

$24.46

14

SPACER, UPPER

52455-07G00

$30.73

15

BOLT

09103-10033

$5.64

16

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.21

17

WASHER

08211-10281

$2.06
