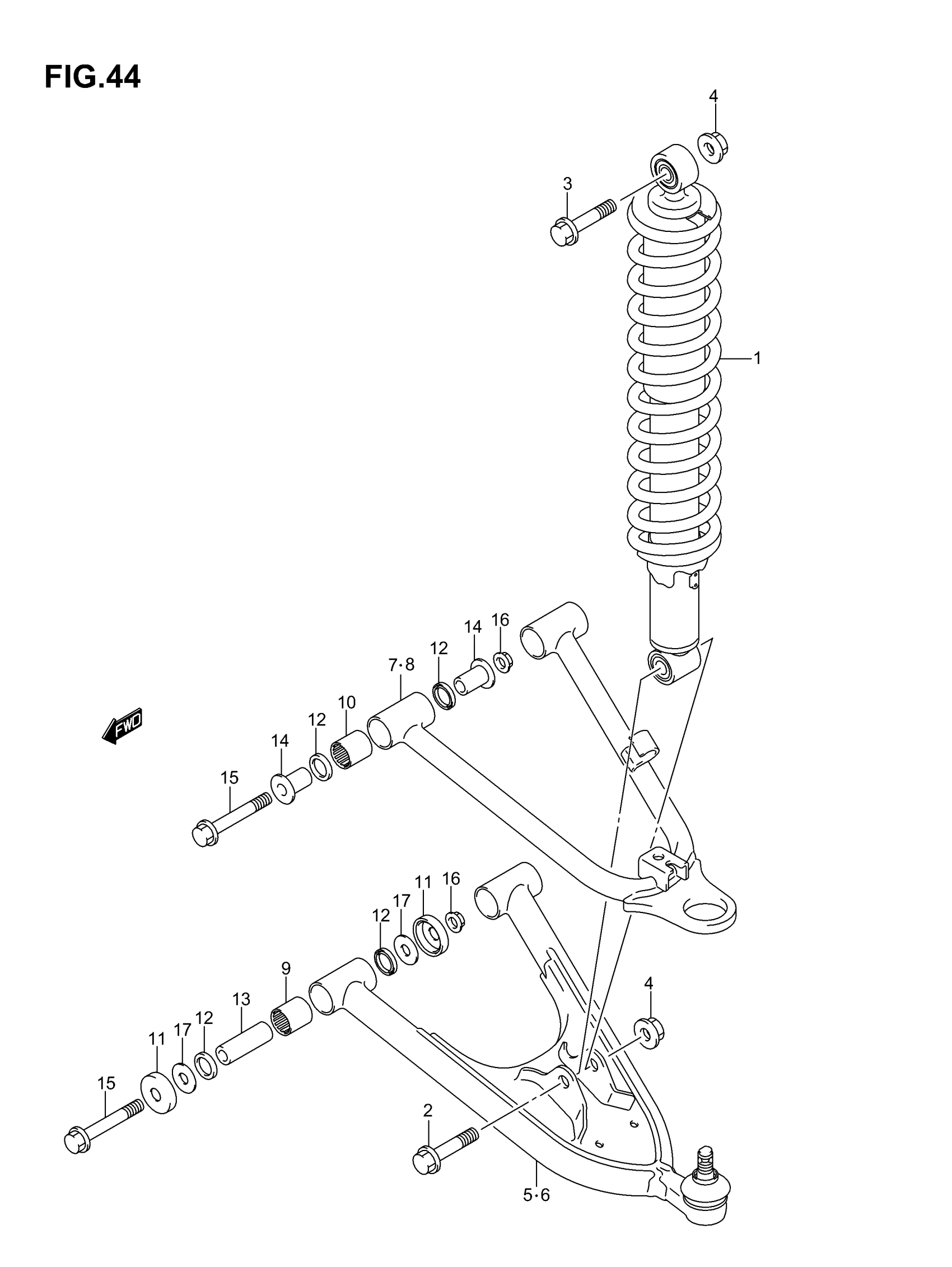

Suzuki LT-Z400 (2007) SUSPENSION ARM (MODEL K3/K4) Diagram

#

Description
Price

1

ABSORBER ASSY, FRONT SHOCK (RED) | MODEL K3/K4

52100-07G00-37W

Unavailable

1

ABSORBER ASSY, FRONT SHOCK (YELLOW) | MODEL K4 LT-Z400ZK4

52100-07G00-163

Unavailable

2

BOLT, LOWER (10X48)

09103-10352

$5.88

3

BOLT, UPPER (10X38)

09103-10351

$6.20

4

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

5

ARM ASSY, SUSPENSION LOWER RH

52410-07G00-YD8

$308.82

6

ARM ASSY, SUSPENSION LOWER LH

52420-07G00-YD8

$308.82

7

ARM ASSY, SUSPENSION UPPER RH

52430-07G00-YD8

Unavailable

8

ARM ASSY, SUSPENSION UPPER LH

52440-07G00-YD8

Unavailable

9

BEARING, SUSPENSION ARM PIVOT

09263-17033

$28.08

10

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

11

SEAL,DUST This part replaces 52454-43B00.

52454-43B01

$7.73

12

.SEAL,OIL (17X24X3) This part replaces 09285-17001.

09285-17007

$3.76

13

SPACER, LOWER

52455-43B00

$21.67

14

SPACER, UPPER

52455-07G00

$27.23

15

BOLT

09103-10033

$6.17

16

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

17

WASHER

08211-10281

$2.03
