2007 Suzuki LT-Z400 Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 2007 Suzuki LT-Z400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

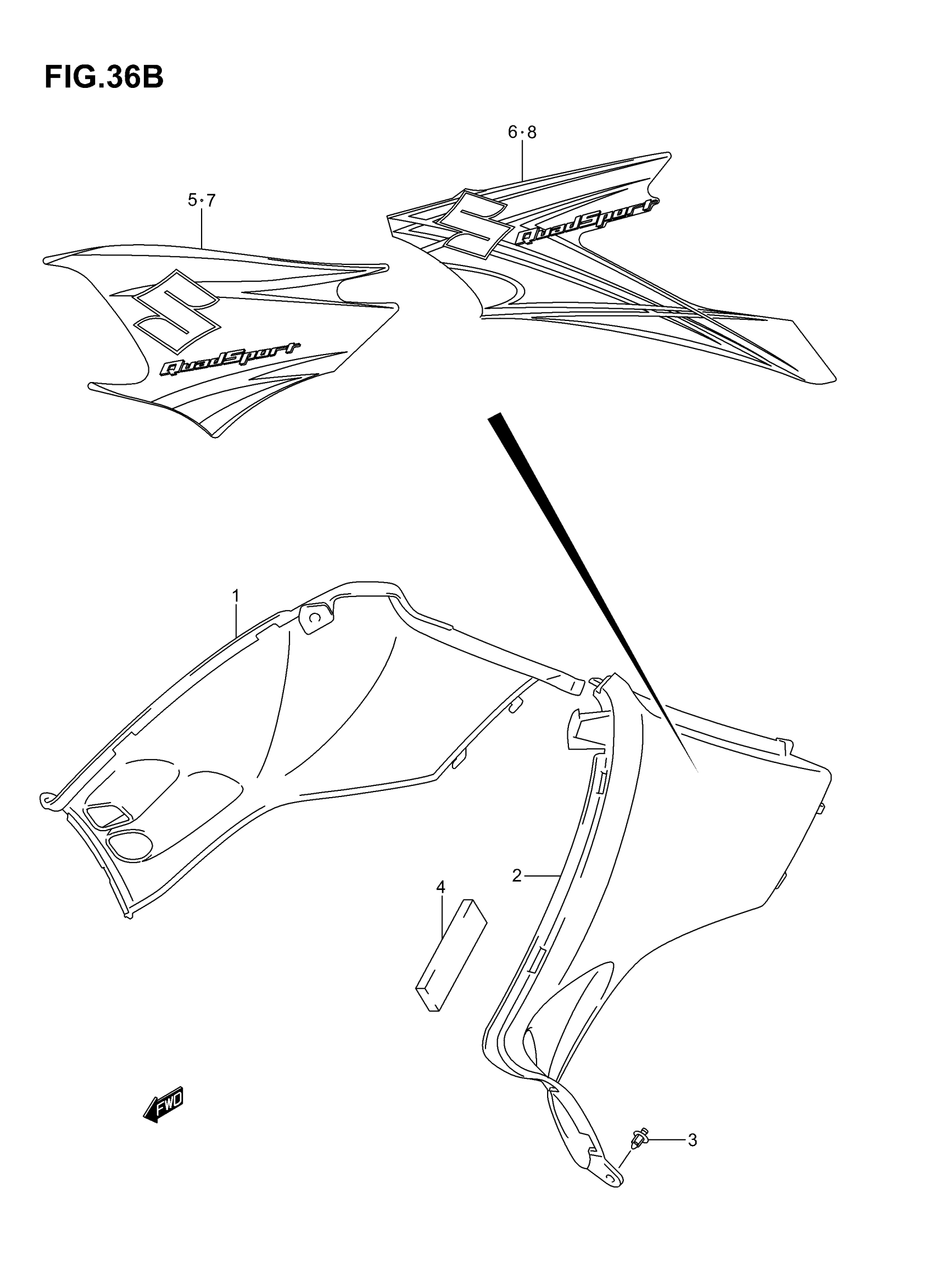

2007 Suzuki LT-Z400 Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE RH (YELLOW)

53112-07G01-YU1

1
Out of stock

1

COVER, SIDE RH (WHITE)

53112-07G01-30H

1
Out of stock

1

COVER, SIDE RH (BLACK)

53112-07G01-019

1
Out of stock

2

COVER, SIDE LH (YELLOW)

53122-07G01-YU1

1
Out of stock

2

COVER, SIDE LH (WHITE)

53122-07G01-30H

1
Out of stock

2

COVER, SIDE LH (BLACK)

53122-07G01-019

1
Out of stock

3

CLIP

09409-07333

2
Out of stock

4

CUSHION

53145-07G01

6
Out of stock

5

TAPE, SIDE RH | FOR YU1

68155-07GA0-DUE

1
Out of stock

5

TAPE, SIDE RH | FOR 30H

68155-07GA0-DUD

1
Out of stock

6

TAPE, SIDE RH | FOR 019

68155-07GC0-DUM

1
Out of stock

7

TAPE, SIDE LH | FOR YU1

68156-07GA0-DUE

1
Out of stock

7

TAPE, SIDE LH | FOR 30H

68156-07GA0-DUD

1
Out of stock

8

TAPE, SIDE LH | FOR 019

68156-07GC0-DUM

1
Out of stock
← Side Cover Optional →
