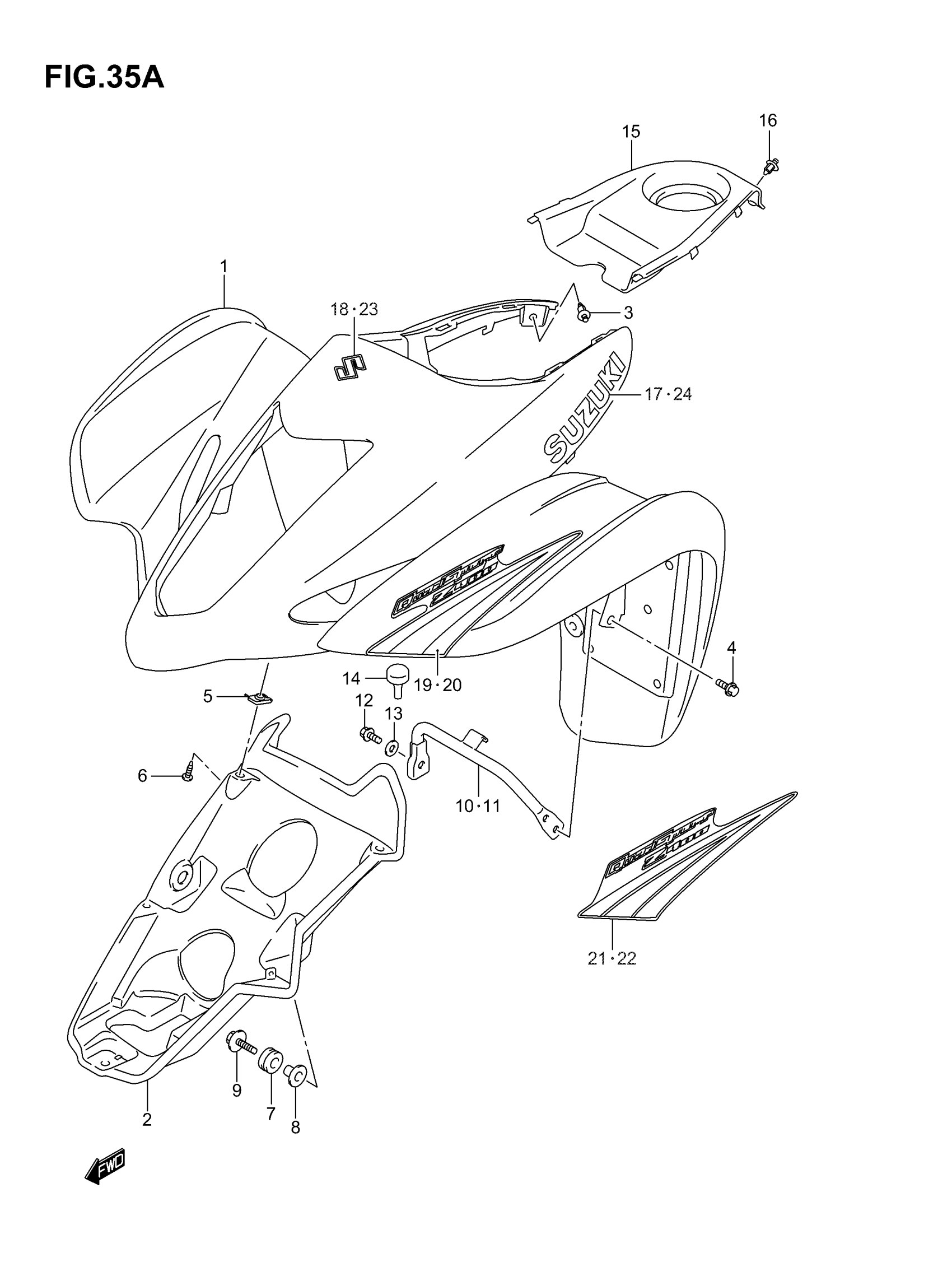

Suzuki LT-Z400 (2007) FRONT FENDER (MODEL K5/K6) Diagram

#

Description
Price

1

FENDER, FRONT (YELLOW)

53111-07G01-YU1

$690.10

1

FENDER, FRONT (WHITE)

53111-07G01-30H

$720.70

2

FENDER, FRONT LOWER

53118-07G02

$140.87

3

CLIP

09409-07333

$2.29

4

BOLT

09111-06085

$4.16

5

NUT

09148-05038

$1.97

6

SCREW This part replaces 03541-05163.

03541-0516A

$1.37

7

CUSHION

09320-11008

$2.58

8

SPACER

09169-06074

$7.49

9

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

10

BRACKET, RH

53210-07G00

$33.82

11

BRACKET, LH

53220-07G00

$33.09

12

BOLT

09100-06162

$2.80

13

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06079.

09160-06052

$1.45

14

CUSHION

09321-06033

$2.80

15

FENDER, CENTER (YELLOW)

53119-07G01-YU1

$81.12

15

FENDER, CENTER (WHITE)

53119-07G01-30H

$79.57

16

CLIP

09409-07333

$2.29

17

EMBLEM,SUZUKI | MODEL K5 FOR YU1 This part replaces 68661-29F00-GY8.

68661-29F01-GY8

$22.80

17

EMBLEM,SUZUKI | MODEL K5 FOR 30H This part replaces 68661-29F00-8YM.

68661-29F01-8YM

$21.97

18

EMBLEM, "S" | MODEL K5 FOR YU1

68151-37F00-AZT

$30.92

18

EMBLEM, "S" | MODEL K5 FOR 30H

68151-37F00-BJA

Unavailable

19

TAPE, FRONT RH | MODEL K5 FOR YU1

68155-07G70-BHZ

Unavailable

19

TAPE, FRONT RH | MODEL K5 FOR 30H

68155-07G70-BHY

Unavailable

20

TAPE, FRONT LH | MODEL K5 FOR YU1

68156-07G70-BHZ

Unavailable

20

TAPE, FRONT LH | MODEL K5 FOR 30H

68156-07G70-BHY

Unavailable

21

EMBLEM, RH | MODEL K6 FOR 30H

68155-07G90-CHG

Unavailable

21

EMBLEM,FR FENDE | MODEL K6 FOR YU1 This part replaces 68155-07G90-CEZ.

68155-07G91-CEZ

$41.20

22

EMBLEM, RH | MODEL K6 FOR 30H

68156-07G90-CHJ

Unavailable

22

EMBLEM,FR FENDE | MODEL K6 FOR YU1 This part replaces 68156-07G90-CET.

68156-07G91-CET

$67.35

23

EMLBEM "S" | MODEL K6 This part replaces 68151-07G10-YCF.

68151-07G11-YCF

$18.00

24

EMBLEM,SUZUKI | MODEL K6 FOR 30H This part replaces 68661-29F00-8YM.

68661-29F01-8YM

$21.97

24

EMBLEM,SUZUKI | MODEL K6 FOR YU1 This part replaces 68661-29F00-CFL.

68661-29F01-CFL

$28.10
