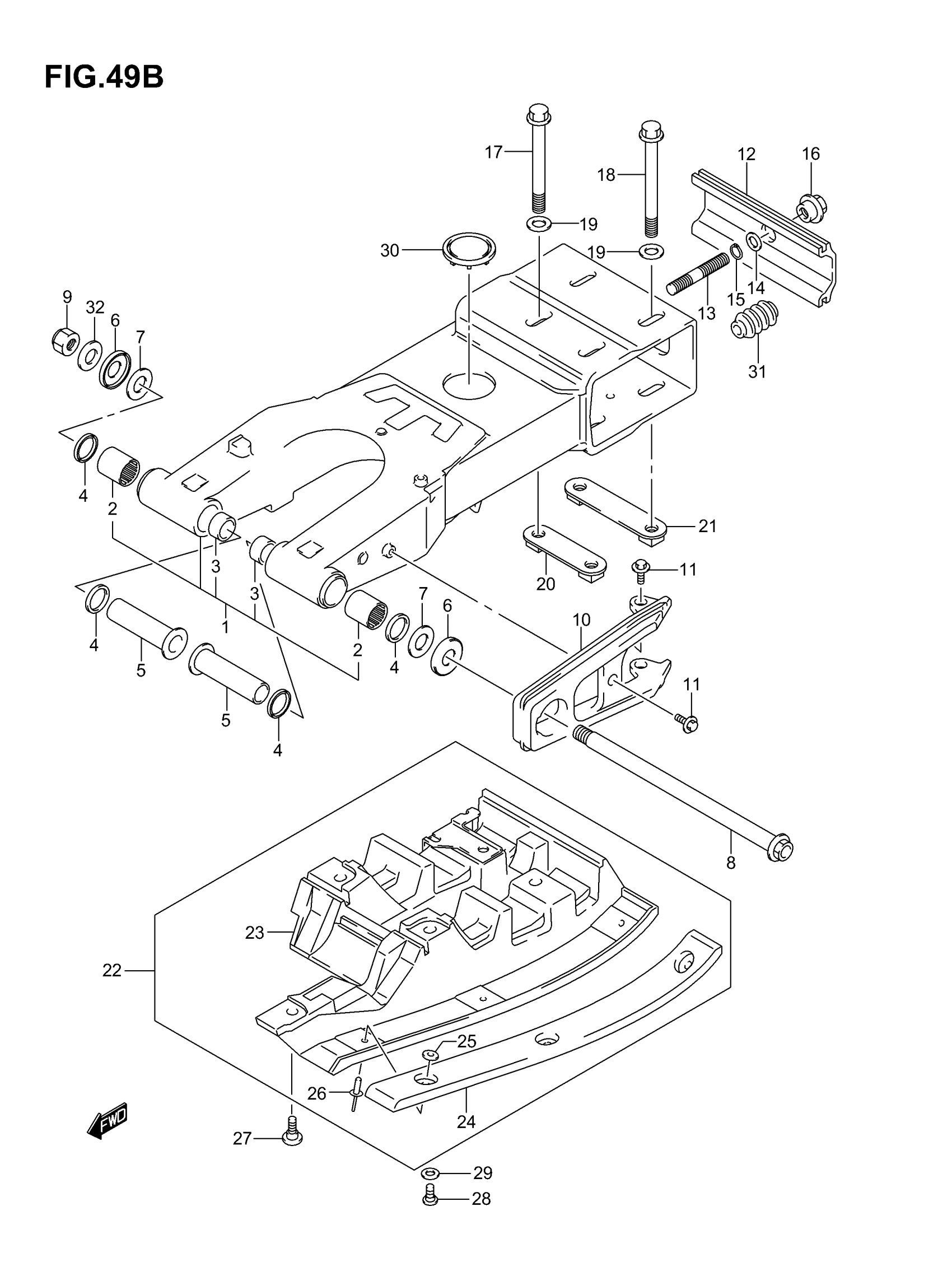

Suzuki LT-Z400 (2007) REAR SWINGING ARM (MODEL K4/K5/K6/K7) Diagram

#

Description
Price

1

SWINGING ARM SET, REAR | MODEL K4

61101-07820

Unavailable

1

SWINGING ARM SET, REAR | MODEL K5/K6/K7; Includes Item(s) 2 - 3

61101-07830

Unavailable

2

BEARING, PIVOT

09263-22017

$22.58

3

BUSH, RR SWINGING ARM PIVOT

61261-07G00

$17.43

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

5

SPACER

61252-07G00

$45.22

6

COVER,DUST This part replaces 61262-28C10.

61262-28C11

$7.01

7

WASHER, THRUST

08211-17341

$2.50

8

SHAFT, PIVOT

61211-07G10

$69.80

9

NUT

09159-16007

$12.61

10

BUFFER,CHAIN TO This part replaces 61273-07G00.

61273-07G01

$22.19

11

BOLT

09116-06192

$2.30

12

PLATE, CHAIN ADJUSTER

61421-07G00

$75.90

13

BOLT, CHAIN ADJUSTER

09108-12014

$5.11

14

WASHER, CHAIN ADJUSTER NUT

09160-20081

$3.04

15

CIRCLIP, KICK START DRIVE GEAR This part replaces 08331-31206.

08331-3120A

$2.03

16

NUT, CHAIN ADJUSTER

61422-07G00

$22.74

17

BOLT, FR

09103-12074

$7.83

18

BOLT, RR

09103-12075

$7.78

19

WASHER

09160-12103

$3.07

20

WASHER, AXLE HOUSING SET FR

61470-07G10

$13.23

21

WASHER, AXLE HOUSING SET RR

61480-07G10

$13.95

22

GUARD SET, SWINGING ARM UNDER | Includes Item(s) 23 - 26

61305-07G10

$251.08

23

GUARD, SWINGING ARM UNDER

61391-07G10

$159.63

24

BUFFER, SWGARM GUARD

61396-07G20

Unavailable

25

WASHER, BUFFER

09160-04027

Unavailable

26

RIVET, BUFFER

09229-04048

Unavailable

27

BOLT, GUARD

61393-09F10

$7.13

28

BOLT, GUARD CENTER

09106-08076

$5.07

29

WASHER, KNUCKLE END This part replaces 08322-01103.

08322-0110A

$1.84

30

CAP, RR SWINGING ARM

61222-05A01

$14.52

31

BOOT, CHAIN ADJUSTER BOLT

61425-07G00

$7.05

32

WASHER, PIVOT

09160-16031

$2.86
