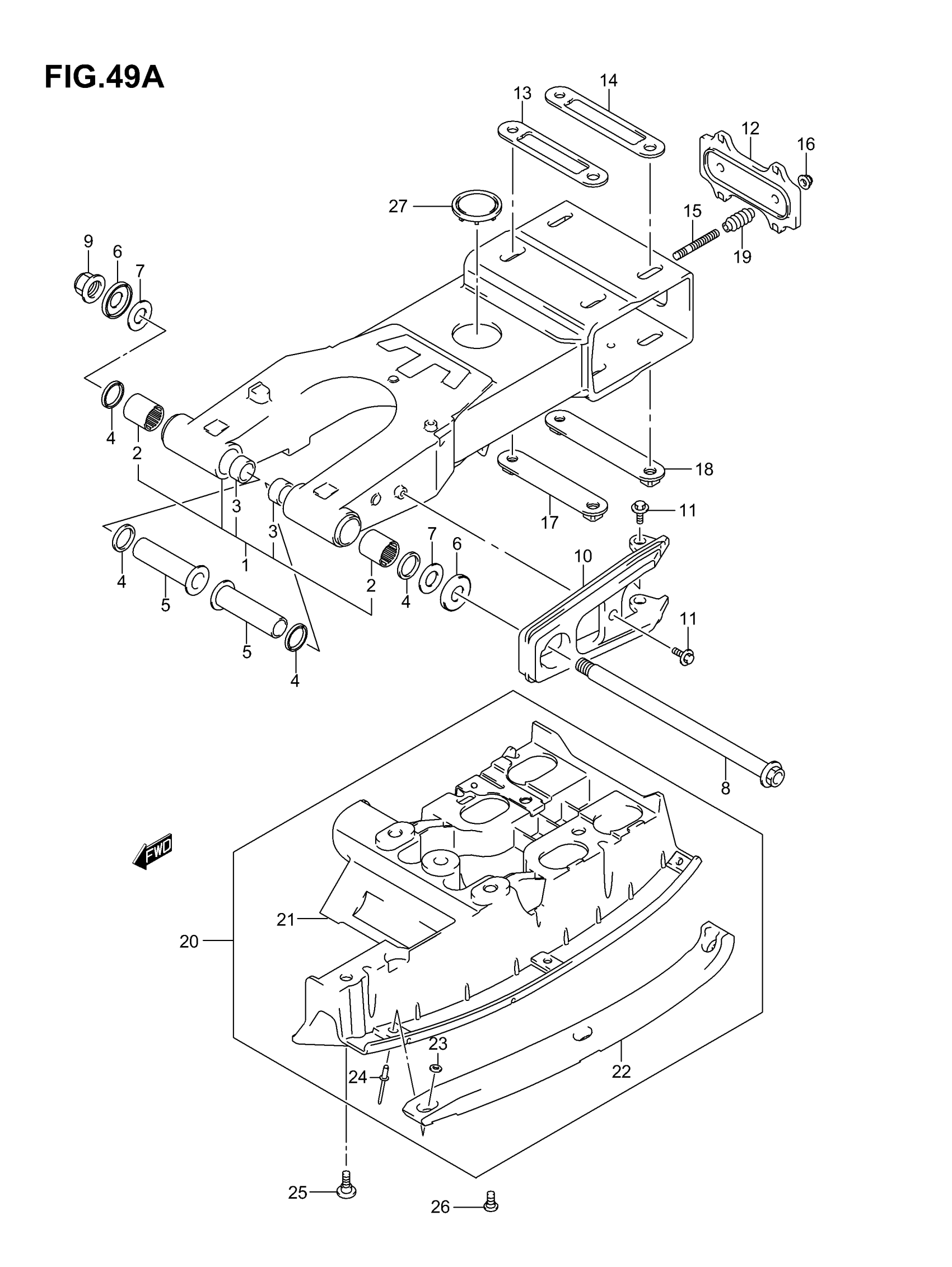

Suzuki LT-Z400 (2007) REAR SWINGING ARM (MODEL K3 F.NO.32113658%) Diagram

#

Description
Price

1

SWINGING ARM SET, REAR | Includes Item(s) 2 - 3

61100-07890

Unavailable

2

BEARING, PIVOT

09263-22017

$22.58

3

BUSH, REAR SWINGING ARM PIVOT

61261-07G00

$17.43

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

5

SPACER

61252-07G00

$45.22

6

COVER,DUST This part replaces 61262-28C10.

61262-28C11

$7.01

7

WASHER, THRUST

08211-17341

$2.50

8

SHAFT SET,RR SW | !61200-07810 This part replaces 61211-07G00.

61200-07810

$94.72

9

NUT This part replaces 08319-31168.

08319-3116A

$14.74

10

BUFFER,CHAIN TO This part replaces 61273-07G00.

61273-07G01

$22.19

11

BOLT

09116-06192

$2.30

12

PLATE, CHAIN ADJUSTER

61421-01C01

$45.83

13

WASHER,AXLE HSG This part replaces 64718-07G00.

64718-07G10

$23.00

14

WASHER,AXLE HSG This part replaces 64719-07G00.

64719-07G10

$23.00

15

BOLT,STUD This part replaces 09108-08209.

09108-08209-XC0

$4.64

16

NUT, CHAIN ADJUSTER

08319-31087

$2.32

17

WASHER, AXLE HS This part replaces 61470-07G00.

61470-07G01

Unavailable

18

WASHER, AXLE HS This part replaces 61480-07G00.

61480-07G01

Unavailable

19

BOOT, CHAIN ADJUSTER BOLT

61425-43B00

$4.48

20

GUARD SET, SWINGING ARM UNDER | Includes Item(s) 21 - 24

61305-07G01

Unavailable

21

GUARD, SWINGING ARM UNDER

61390-07G11

Unavailable

22

BUFFER, SWGARM GUARD

61396-07G10

Unavailable

23

WASHER, BUFFER

09160-04027

Unavailable

24

RIVET, BUFFER

09229-04048

Unavailable

25

BOLT, FRONT This part replaces 61393-09F00.

61393-09F10

$7.13

26

BOLT This part replaces 09106-08154.

09106-08155

$3.76

27

CAP, REAR SWINGING ARM

61222-05A01

$14.52
