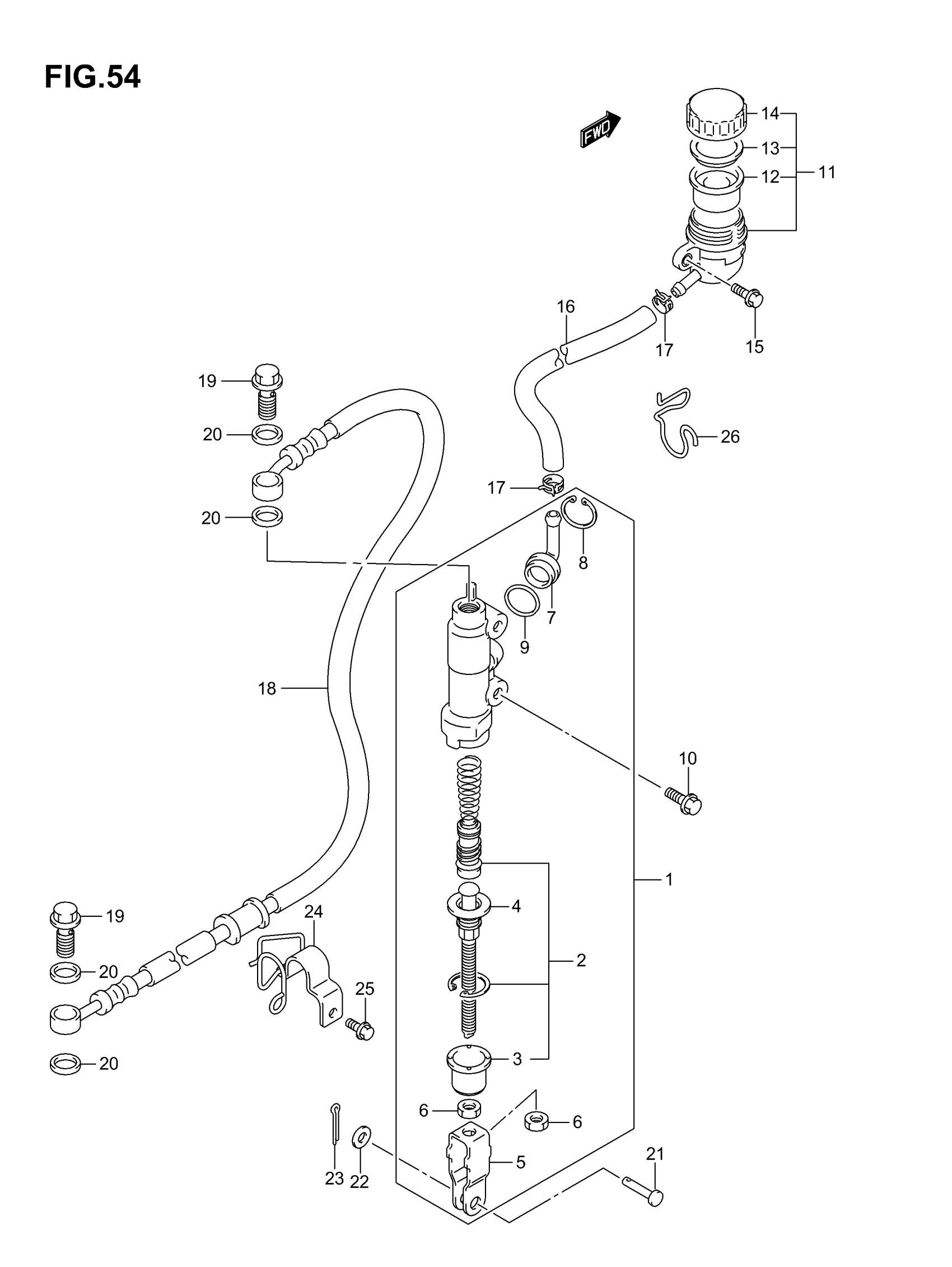

Description

Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-07G00

$301.50

2

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$26.60

3

.BOOT

69691-00A00

$5.30

4

ROD, PUSH

69670-07G00

Unavailable

5

YOKE

69692-07G00

$20.97

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-00B20

$7.01

8

CIRCLIP

69674-00B20

$3.97

9

O RING

69686-34200

$2.93

10

BOLT

09103-06202

$3.85

11

TANK ASSY, REAR RESERVOIR | Includes Item(s) 12 - 14

69740-03D00

$75.90

12

DIAPHRAGM

69667-00B20

$15.68

13

PLATE

69668-00B20

$7.67

14

CAP

69669-03D00

$22.65

15

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

16

HOSE, REAR RESERVOIR TANK

69730-07G00

Unavailable

17

CLIP

09401-12404

$2.34

18

HOSE This part replaces 69480-07G00.

69480-07G02

$53.47

19

UNION | MODEL K3/K4/K5 This part replaces 09360-10042.

09360-10062

$6.43

19

BOLT | MODEL K6/K7

09360-10062

$6.43

20

WASHER (10X15X1.5)

09161-10009

$1.84

21

PIN

09200-08048

$2.92

22

WASHER This part replaces 09160-08119.

09160-08090

$2.39

23

.COTTER PIN This part replaces 04111-20158.

04111-2015A
