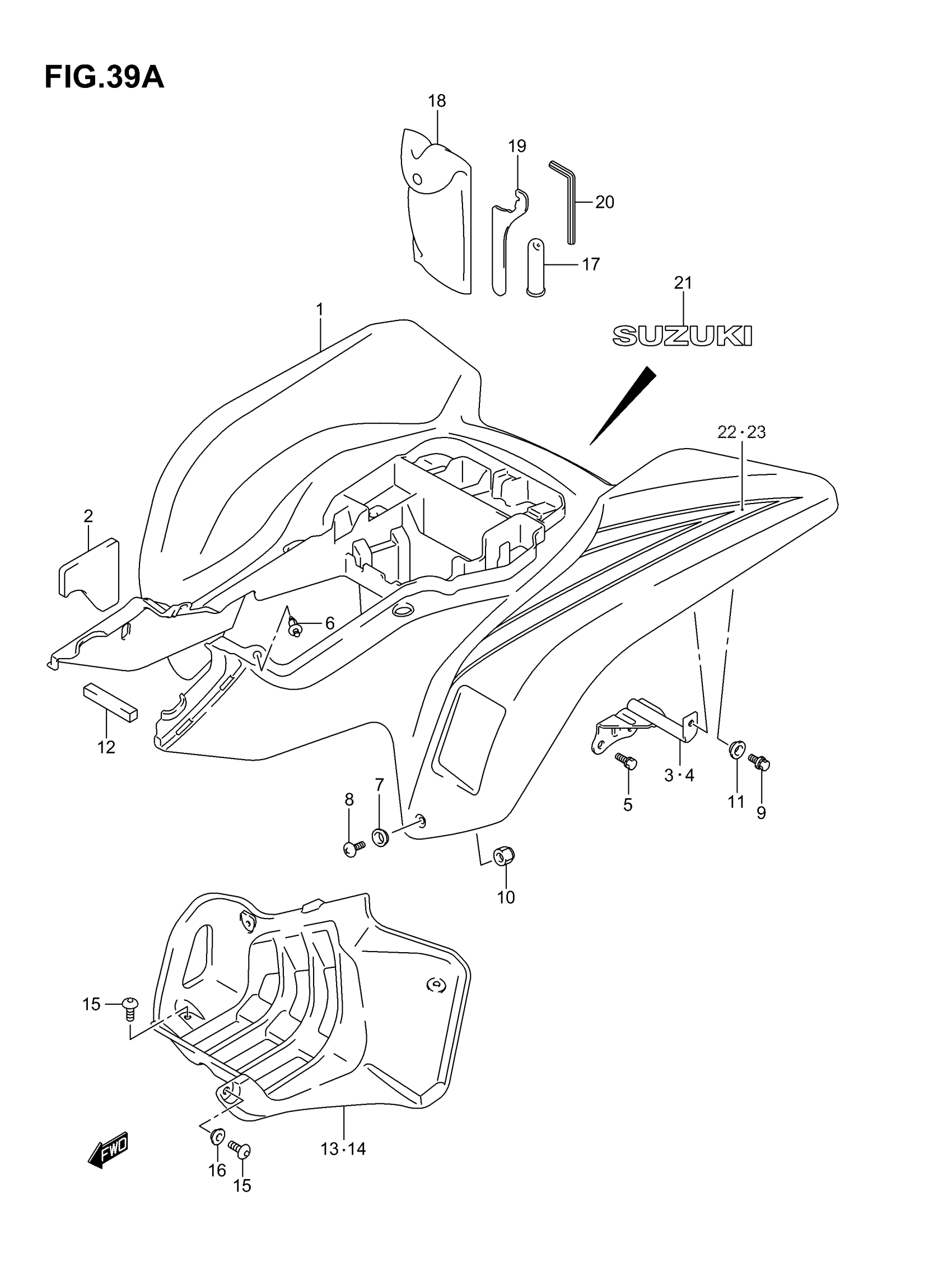

Suzuki LT-Z400 (2007) REAR FENDER (MODEL K5/K6) Diagram

#

Description
Price

1

FENDER, REAR (YELLOW)

63111-07G01-YU1

Unavailable

1

FENDER, REAR (WHITE)

63111-07G01-30H

$539.05

2

SHIELD

63261-07G00

$14.77

3

BRACKET, RH

63140-07G20

$39.48

4

BRACKET, LH

63150-07G20

$39.48

5

BOLT This part replaces 01570-06163.

01570-0616A

$2.23

6

CLIP

09409-07333

$2.31

7

WASHER This part replaces 09169-06045.

09169-06055

$2.27

8

BOLT, FRONT

09139-06109

$2.73

9

BOLT This part replaces 01570-06203.

01570-0620A

$2.19

10

NUT This part replaces 08319-31063.

08319-3106A

$2.03

11

WASHER This part replaces 09169-06045.

09169-06055

$2.27

12

CUSHION, CENTER This part replaces 63129-07G00.

53145-05G00

$15.23

13

MUDGUARD, FOOTREST RH (BLACK) | MODEL K5 This part replaces 63331-07G00-291.

63331-07G10-5PK

$110.28

13

MUDGUARD, FOOTREST RH (BLACK) | MODEL K6 This part replaces 63331-07G00-5PK.

63331-07G10-5PK

$110.28

14

MUDGUARD, FOOTREST LH (BLACK) | MODEL K5 This part replaces 63341-07G00-291.

63341-07G10-5PK

$110.28

14

MUDGUARD, FOOTREST LH (BLACK) | MODEL K6 This part replaces 63341-07G00-5PK.

63341-07G10-5PK

$110.28

15

BOLT

09139-06109

$2.73

16

WASHER

09169-06071

$2.50

17

GAUGE ASSY,AIR PRESSUR

96200-18A02

$58.92

18

TOOL ASSY This part replaces 09800-21046.

09800-21094

$24.87

19

CLAMP, WRENCH

09822-00004

$14.43

20

HEXAGON SPANNER, 4

09816-00103

$6.17

21

EMBLEM, "SUZUKI" | MODEL K5 FOR YU1

68111-19B30-GY8

$10.07

21

EMBLEM, "SUZUKI" | FOR 30H

68111-19B30-8YM

$9.72

21

EMBLEM, "SUZUKI" | MODEL K6 FOR YU1

68111-19B30-CFL

Unavailable

22

TAPE, REAR FENDER RH | MODEL K6 FOR 30H

68175-07G20-CHG

Unavailable

22

TAPE, REAR FENDER RH | MODEL K6 FOR YU1

68175-07G20-CEZ

Unavailable

23

TAPE, REAR FENDER LH | MODEL K6 FOR 30H

68176-07G20-CHG

Unavailable

23

TAPE, REAR FENDER LH | MODEL K6 FOR YU1

68176-07G20-CEZ

Unavailable
