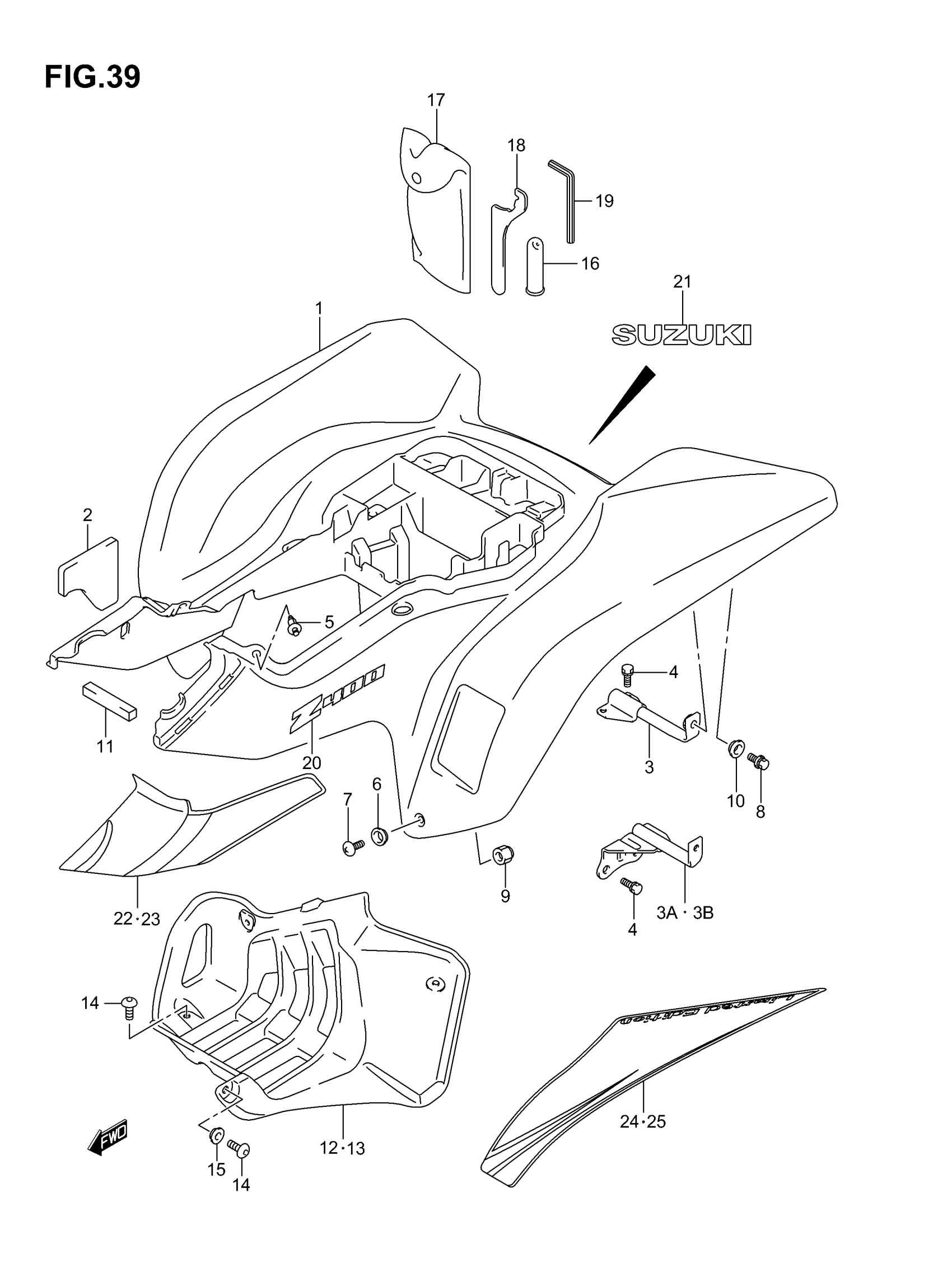

Suzuki LT-Z400 (2007) REAR FENDER (MODEL K3/K4) Diagram

#

Description
Price

1

FENDER, REAR (YELLOW) This part replaces 63111-07G00-YU1.

63111-07G01-YU1

Unavailable

1

FENDER, REAR (WHITE) This part replaces 63111-07G00-30H.

63111-07G01-30H

$583.00

2

SHIELD

63261-07G00

$16.67

3

BRACKET | MODEL K3

63140-07G00

$39.82

3A

BRACKET,RR FEND | MODEL K4 This part replaces 63140-07G10.

63140-07G11

Unavailable

3B

BRACKET,RR FEND | MODEL K4 This part replaces 63150-07G10.

63150-07G11

Unavailable

4

BOLT This part replaces 01570-06163.

01570-0616A

$2.24

5

CLIP

09409-07333

$2.29

6

WASHER This part replaces 09169-06045.

09169-06055

$2.02

7

BOLT

09139-06109

$2.73

8

BOLT | MODEL K3 This part replaces 01580-06163.

01580-0616A

$2.43

8

BOLT | MODEL K4 This part replaces 01570-06203.

01570-0620A

$2.21

9

.NUT This part replaces 08319-21063.

08319-2106B

$2.31

10

WASHER This part replaces 09169-06045.

09169-06055

$2.02

11

CUSHION, CENTER This part replaces 63129-07G00.

53145-05G00

$14.34

12

MUDGUARD, FOOTREST RH (BLACK) This part replaces 63331-07G00-291.

63331-07G10-5PK

$123.87

13

MUDGUARD, FOOTREST LH (BLACK) This part replaces 63341-07G00-291.

63341-07G10-5PK

$123.87

14

BOLT

09139-06109

$2.73

15

WASHER

09169-06071

$2.50

16

GAUGE ASSY,AIR PRESSUR

96200-18A02

$66.48

17

TOOL ASSY This part replaces 09800-21046.

09800-21094

$27.03

18

CLAMP, WRENCH

09822-00004

$15.68

19

HEXAGON SPANNER, 4

09816-00103

$6.70

20

EMBLEM, "Z400" | MODEL K3 FOR YU1

68171-07G00-JV6

Unavailable

20

EMBLEM, "Z400" | MODEL K3 FOR 30H

68171-07G00-KD1

Unavailable

21

EMBLEM, "SUZUKI" | FOR YU1

68111-19B30-GY8

$11.37

21

EMBLEM, "SUZUKI" | FOR 30H

68111-19B30-8YM

$10.97

22

TAPE, RH | LT-Z400Z K4

68175-07G00-BAS

Unavailable

23

TAPE, LH | LT-Z400Z K4

68176-07G00-BAS

Unavailable

24

TAPE, REAR RH | LT-Z400Z K4

68175-07G10-BAR

Unavailable

25

TAPE, REAR LH | LT-Z400Z K4

68176-07G10-BAR

Unavailable
