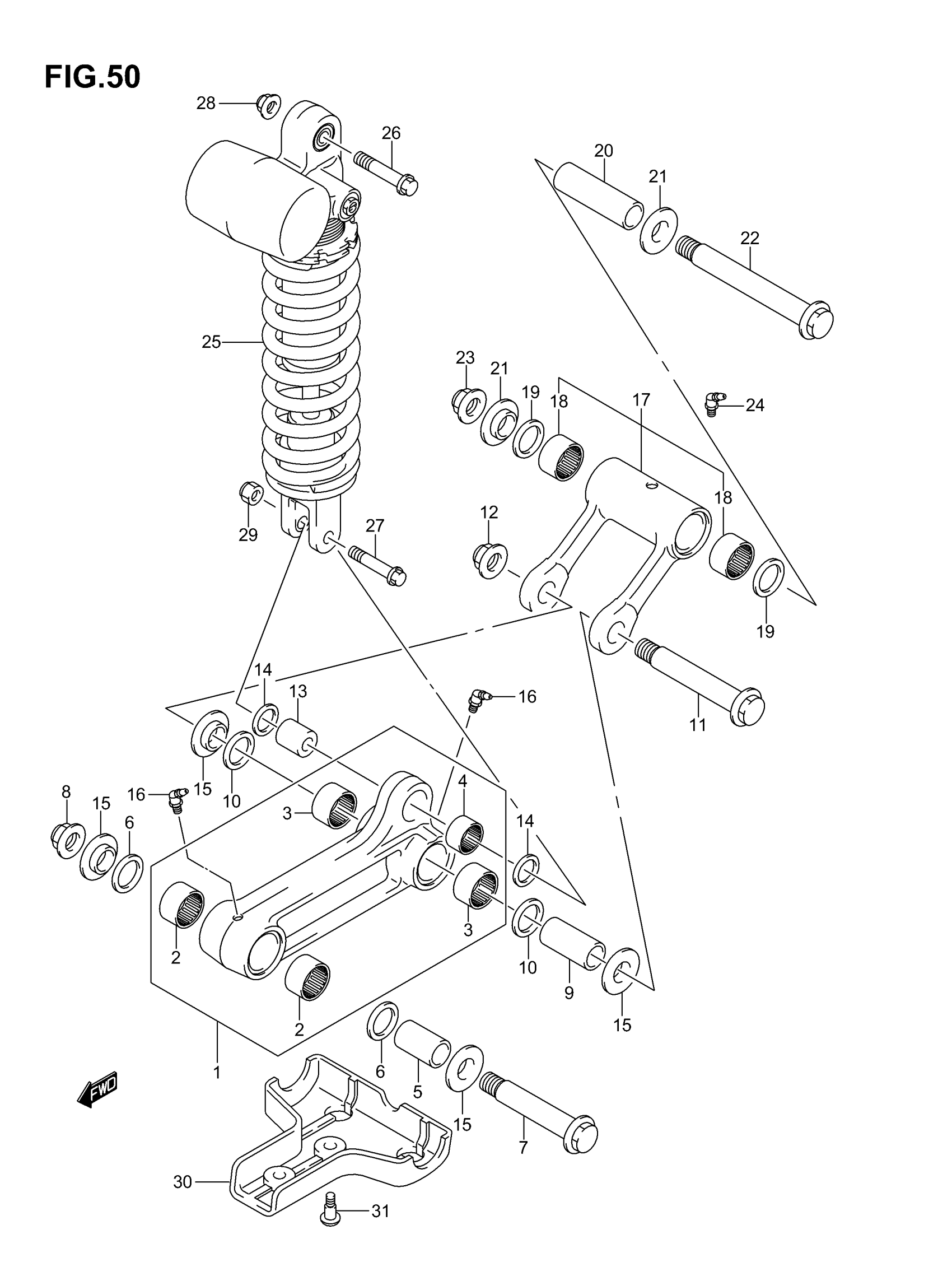

Suzuki LT-Z400 (2007) REAR CUSHION LEVER (MODEL K3/K4) Diagram

#

Description
Price

1

LEVER SET, CUSHION | Includes Item(s) 2 - 4

62600-07810

Unavailable

2

BEARING, FRONT (20X27X15)

09263-20086

$16.47

3

BEARING, CENTER (20X27X15)

09263-20086

$16.47

4

BEARING, REAR (20X26X12)

09263-20083

$24.56

5

SPACER, FRONT

62317-37F00

$21.03

6

SEAL, FRONT DUST

62624-14500

$6.01

7

BOLT, FRONT

62658-07G00

$21.67

8

NUT

09159-12056

$7.37

9

SPACER, CENTER

62646-37F00

$23.85

10

SEAL, CENTER DUST

62624-14500

$6.01

11

BOLT, CENTER

62621-37F00

$22.17

12

NUT

09159-12056

$7.37

13

SPACER, REAR

62684-36E00

$16.57

14

SEAL, REAR

09284-20001

$4.71

15

SPACER, CUSHION LEVER SIDE

62647-37F00

$17.20

16

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

$4.45

17

ROD SET, REAR CUSHION | Includes Item(s) 18 This part replaces 62600-07820.

62600-07830

Unavailable

18

BEARING, ROD (20X27X15)

09263-20086

$16.47

19

SEAL, DUST

62624-14500

$6.01

20

SPACER, ROD

62646-07G00

$29.33

21

SPACER, ROD SIDE

62647-37F00

$17.20

22

BOLT, ROD

62621-07G00

$22.44

23

NUT

09159-12056

$7.37

24

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

$4.45

25

ABSORBER ASSY, REAR SHOCK (RED) | MODEL K3 E3,E33 This part replaces 62100-07G00-37W.

62100-07G01-37W

Unavailable

25

ABSORBER ASSY, REAR SHOCK (RED) | MODEL K3 E28

62100-07G10-37W

Unavailable

25

ABSORBER ASSY, REAR SHOCK (RED) | MODEL K4 E33 FOR YU1,30H

62100-07G01-37W

Unavailable

25

ABSORBER ASSY, REAR SHOCK (RED) | MODEL K4 E28 FOR YU1,30H

62100-07G11-37W

Unavailable

25

ABSORBER ASSY, REAR SHOCK (YELLOW) | LT-Z400Z K4 E33 FOR GY8

62100-07G01-163

Unavailable

25

ABSORBER ASSY, REAR SHOCK | LT-Z400Z K4 E28 FOR GY8

62100-07G11-163

Unavailable

26

BOLT (10X58) This part replaces 62311-14501.

09103-10428

$5.07

27

BOLT, LOWER

09103-10325

$4.60

28

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

29

NUT, LOWER

09159-10067

$6.11

30

GUARD, REAR CUSHION LEVER

62681-07G00

$25.52

31

SCREW

09139-06120

$2.83
