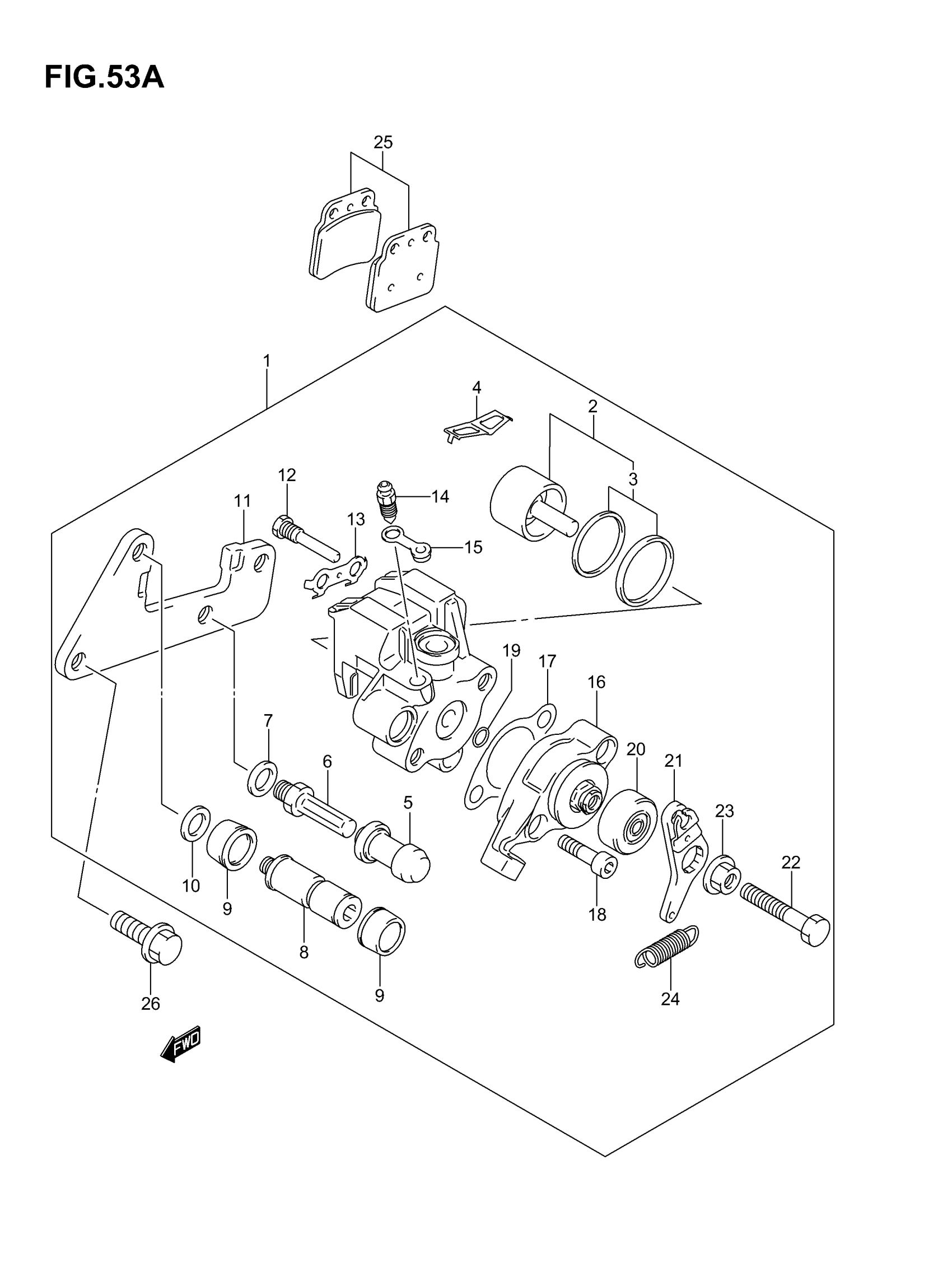

Suzuki LT-Z400 (2007) REAR CALIPER (MODEL K4/K5/K6/K7) Diagram

#

Description
Price

1

CALIPER ASSY, REAR | Includes Item(s) 2 - 24

69100-07G10-999

$362.18

2

PISTON SET

69100-19850

$70.82

3

..SEAL SET,PISTON

69100-13820

$8.52

4

SPRING, PAD

59315-13A00

$11.02

5

BOOT

59386-13A00

$7.95

6

BOLT

59382-13A00

$7.69

7

WASHER

59314-13A00

$2.02

8

PIN

69305-19A00

$23.35

9

BOOT

59303-13A00

$5.80

10

SPRING

59306-13A00

$3.15

11

BRACKET

69151-07G00

$50.30

12

PIN

59345-13A00

$6.98

13

WASHER

59346-13A00

$4.17

14

BLEEDER

59121-01A00

$8.73

15

CAP, BLEEDER

59122-01A00

$4.34

16

PARKING

69320-07G00

Unavailable

17

PACKING

69326-19A01

$9.23

18

BOLT

69321-19A00

$9.00

19

O RING

69322-19A00

$4.80

20

BOOT

69329-19A00

$7.27

21

ARM

69325-19A00

$19.38

22

BOLT, ADJUST

69127-07G00

$6.80

23

NUT

69323-19A00

$4.88

24

SPRING

69328-19A00

$7.73

25

PAD SET

69100-07810

$58.90

26

BOLT (8X29) | MODEL K4 This part replaces 09103-08156.

09103-08409

$4.17

26

BOLT | MODEL K5/K6/K7

09103-08409

$4.17
