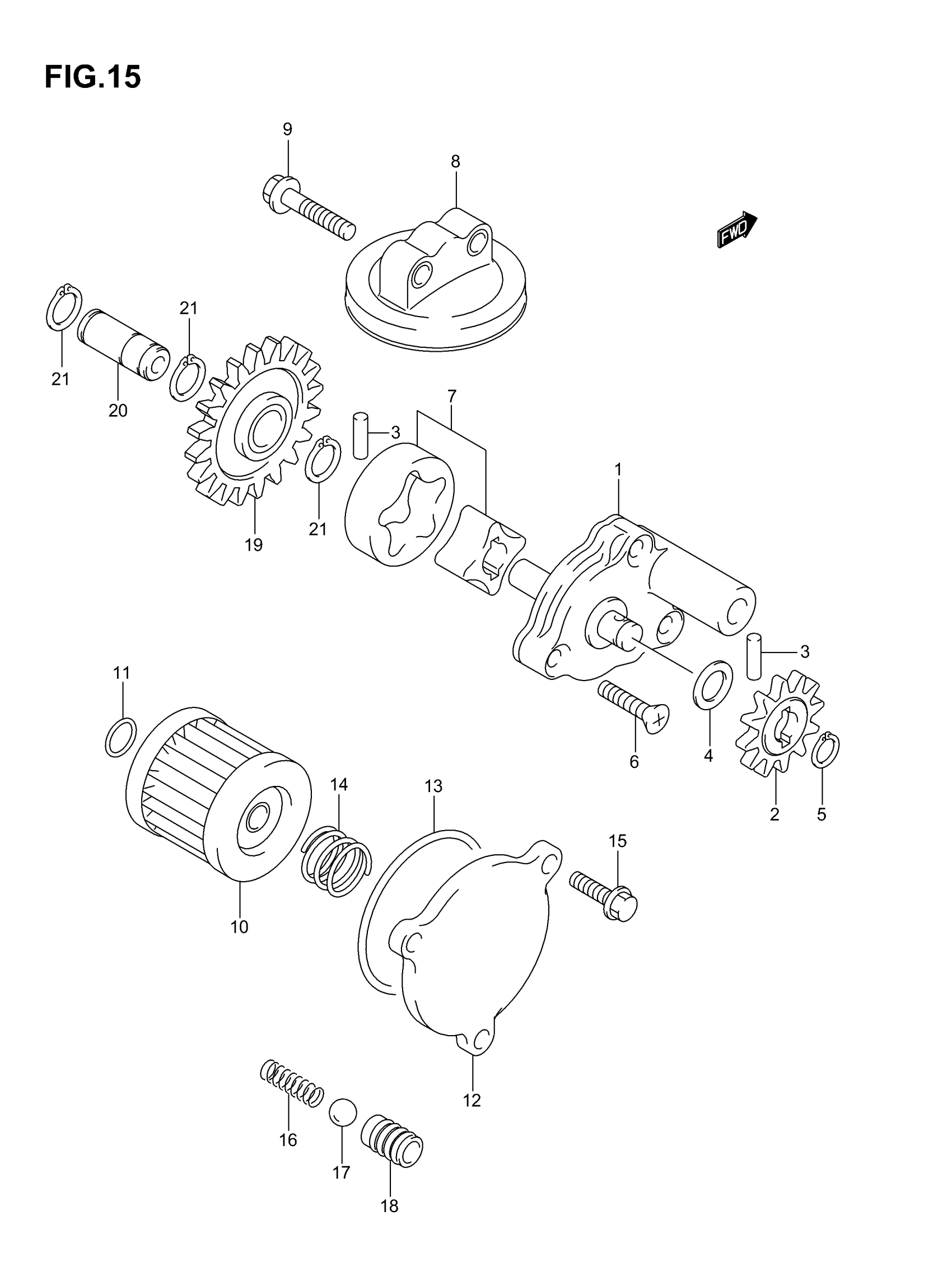

Suzuki LT-Z400 (2007) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, ENGINE OIL NO.1

16400-29F00

$156.40

2

GEAR, DRIVEN

16331-29F01

$39.93

3

PIN

09261-04009

$1.56

4

WASHER

09181-10158

$1.97

5

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.78

6

SCREW This part replaces 02122-06253.

02122-0625A

$1.49

7

ROTOR SET, OIL PUMP NO.2

16410-29F00

$44.18

8

STRAINER, OIL PUMP NO.2 This part replaces 16520-29F00.

16520-29F01

$21.83

9

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

10

FILTER, ENGINE OIL

16510-29F00

$7.66

11

O RING (D:1.9,ID:13.0)

09280-13004

$2.17

12

CAP, OIL FILTER

16512-47E00

$39.00

13

O RING (D:2.4,ID:52.6)

09280-54001

$3.76

14

SPRING

09440-18002

$1.49

15

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

16

SPRING

09440-07073

$4.50

17

BALL

06111-12004

$1.93

18

SEAT, OIL CHECK VALVE

16442-29F00

$27.95

19

GEAR, OIL PUMP IDLE

16321-29F00

$26.52

20

SHAFT

16322-29F00

$19.87

21

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78
