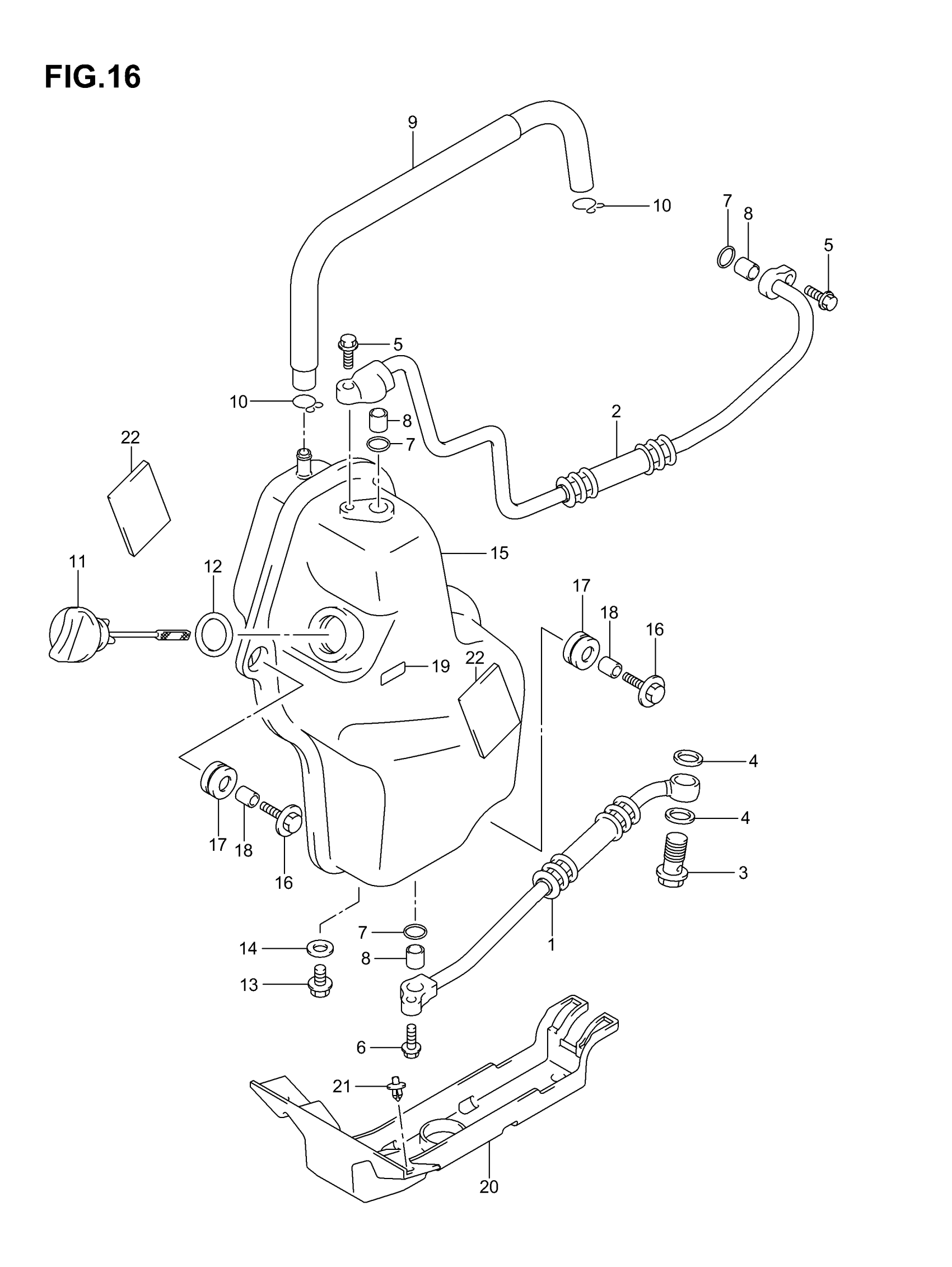

Suzuki LT-Z400 (2007) OIL HOSE Diagram

#

Description
Price

1

HOSE, OIL TANK RH | MODEL K3/K4 This part replaces 16460-07G00.

16460-07G10

Unavailable

1

HOSE, OIL TANK RH | MODEL K5/K6/K7

16460-07G10

Unavailable

2

HOSE, OIL TANK LH | MODEL K3/K4 This part replaces 16470-07G00.

16470-07G20

$150.35

2

HOSE, OIL TANK LH | MODEL K5/K6/K7 This part replaces 16470-07G10.

16470-07G20

$150.35

3

BOLT, UNION (14X27)

09360-14012

$10.86

4

.GASKET (14X20X1.5)

09168-14015

$2.03

5

BOLT, FRONT This part replaces 07120-06203.

07120-0620B

$3.04

6

BOLT, FRONT This part replaces 07120-06203.

07120-0620B

$3.04

7

O RING, OIL HOSE

09280-11005

$4.36

8

PIN, OIL TANK HOSE

04211-11129

$1.76

9

HOSE, OIL OVERFLOW This part replaces 16480-07G00.

16480-07G10

$33.02

10

CLIP

09401-12403

$1.96

11

GAUGE, OIL LEVEL

11971-07G00

$10.47

12

O RING, OIL LEVEL GAUGE

09280-17003

$1.65

13

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

14

GASKET (8.2X14X1)

09168-08016

$1.65

15

TANK, OIL

16410-07G00

$381.20

16

BOLT, OIL TANK

09118-06097

$2.50

17

CUSHION, OIL TANK

09320-10042

$3.12

18

SPACER, OIL TANK

09180-06290

$2.35

19

NOTE, ENGINE OIL (2000ML)

68322-07G00

$7.05

20

PROTECTOR, OIL TANK

16421-07G00

Unavailable

21

CLIP

09409-06322-5PK

$3.10

22

CUSHION, OIL TANK

51553-15D40

$7.18
