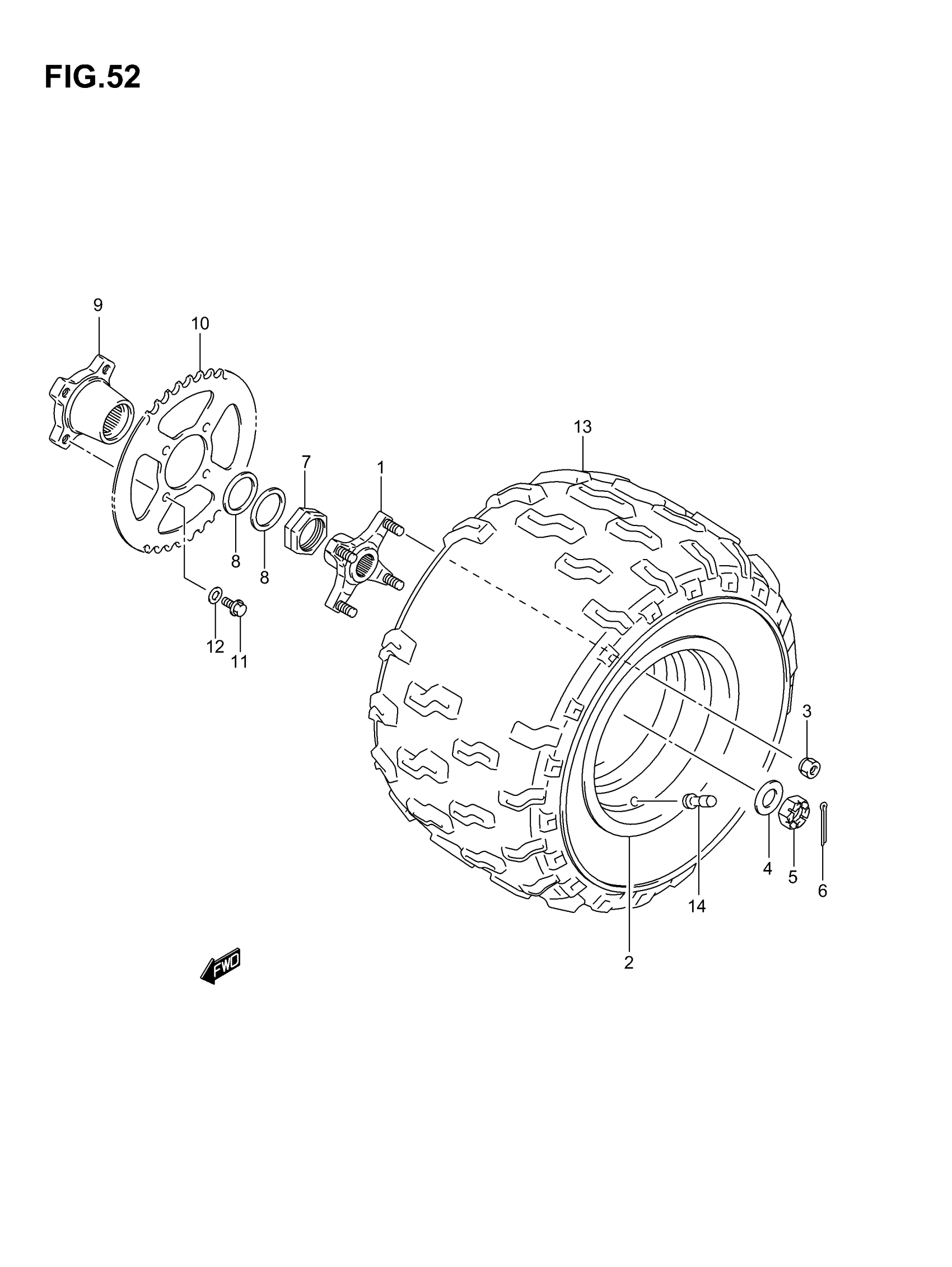

Suzuki LT-Z400 (2007) LEFT REAR WHEEL (MODEL K3/K4) Diagram

#

Description

Price

1

HUB, REAR WHEEL (GRAY)

64110-07G00-YU8

$276.78

2

RIM, REAR WHEEL (9X8.0AT) This part replaces 65310-07G00.

65310-07G10

Unavailable

3

NUT

09140-10021

$2.01

4

WASHER

09164-20002

$3.33

5

NUT, HUB

09141-20002

$4.62

6

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.37

7

NUT, REAR AXLE

64870-19A00

$66.13

8

WASHER, REAR AXLE

09164-38001

$4.83

9

FLANGE, REAR SPROCKET MOUNTING This part replaces 64611-07G00.

64611-07G11

$215.35

10

SPROCKET, REAR This part replaces 64511-07G00.

64511-07G10

$116.62

11

BOLT

09103-10354

$3.77

12

WASHER

09164-10011

$3.08

13

TIRE, REAR

65110-07G00

$336.21

14

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10
