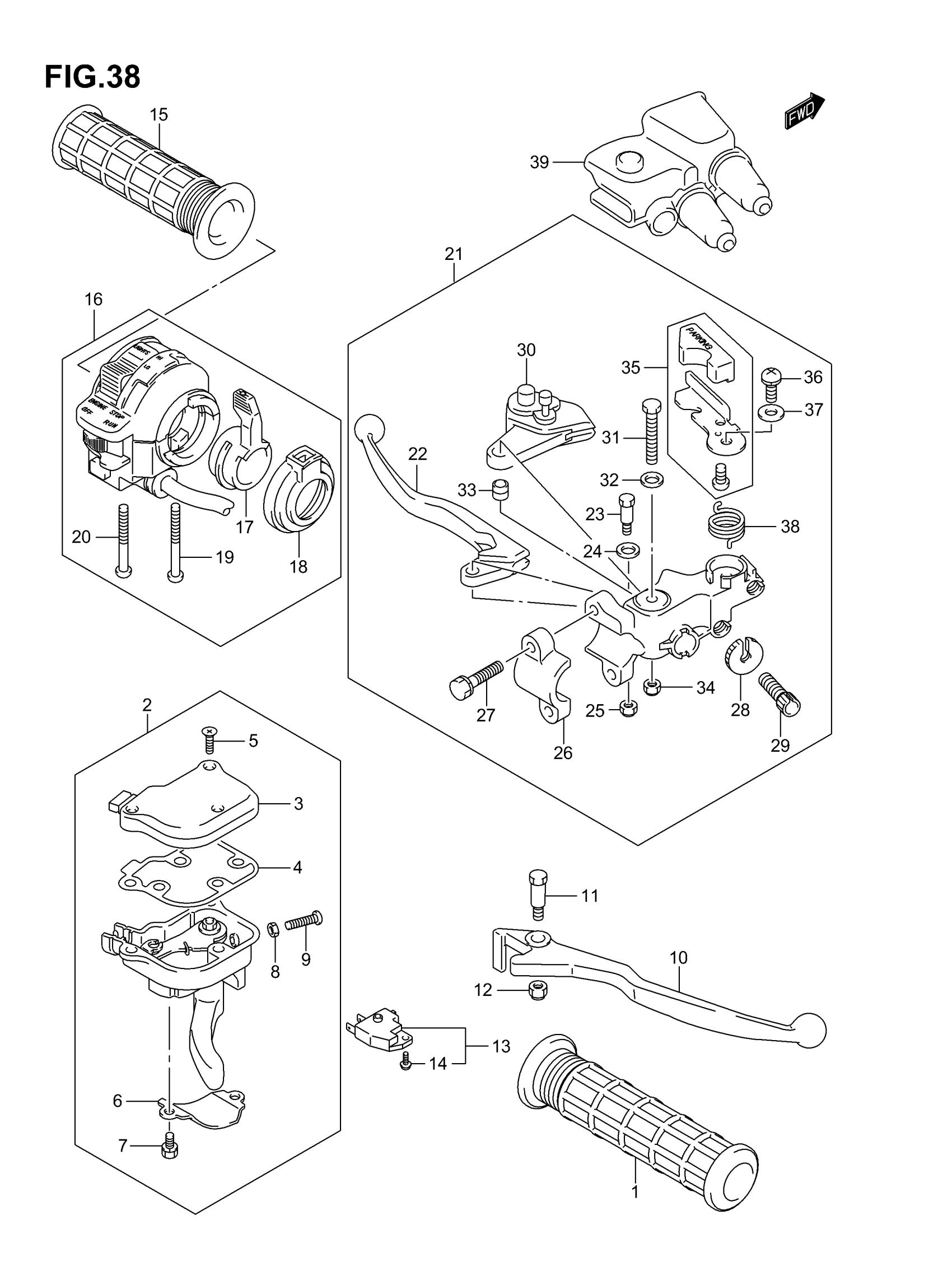

Suzuki LT-Z400 (2007) HANDLE LEVER (MODEL K3) Diagram

#

Description
Price

1

GRIP (BLACK)

57211-22A01-291

$11.42

2

CASE ASSY, THROTTLE | Includes Item(s) 3 - 9

57100-07G00

Unavailable

3

CAP

57121-07G00

Unavailable

4

GASKET

57157-07G00

Unavailable

5

SCREW

57128-07G00

$10.17

6

HOLDER

57126-07G00

$29.10

7

BOLT

57127-07G00

$11.95

8

NUT This part replaces 08310-00053.

08310-0005A

$1.84

9

SCREW This part replaces 02112-05203.

02112-0520B

$1.84

10

LEVER,FRONT BRAKE

57421-39D20

$23.07

11

BOLT,BRAKE LEVER PIVOT

57431-04F00

$6.28

12

NUT,LEVER PIVOT

57433-09F00

$3.56

13

SWITCH ASSY,FR BRAKE | Includes Item(s) 14 This part replaces 57460-17C00.

57460-14J02

$38.46

14

SCREW

57465-17C00

$2.19

15

GRIP (BLACK)

57211-22A01-291

$11.42

16

SWITCH ASSY, HANDLE LH | %F.NO.129634 This part replaces 37400-07G00.

37400-07G90

$215.85

16

SWITCH ASSY, HANDLE LH | F.NO.129635%; Includes Item(s) 17 - 20

37400-07G90

$215.85

17

LEVER, CHOKE

37571-19B01

$12.15

18

COVER, CHOKE

37576-19B01

$6.79

19

SCREW

02112-05457

$1.86

20

SCREW

02112-05407

$2.06

21

LEVER SET,CLUTC | Includes Item(s) 22 - 38 This part replaces 57500-07G00.

57500-07G13

$153.97

22

LEVER This part replaces 57621-07G00.

57621-07G01

$16.85

23

BOLT, PIVOT

57513-07G00

$12.90

24

WASHER

57432-07G00

$10.55

25

.NUT This part replaces 08319-21063.

08319-2106B

$2.32

26

HOLDER

57512-07G00

$36.17

27

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

28

NUT,ADJUSTER This part replaces 57442-07G00.

57442-07G01

$26.12

29

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

$9.05

30

LOCK SET, PARKING LOCK

57800-07850

$74.05

31

BOLT, PARKING LOCK

57431-07G00

$12.40

32

.WASHER This part replaces 57433-07G00.

08322-0106B

$2.26

33

SPACER

57623-07G00

$13.35

34

.NUT This part replaces 08319-21063.

08319-2106B

$2.32

35

KNOB SET, PARKING

57700-07850

$25.52

36

SCREW, PARKING PLATE

57619-07G00

Unavailable

37

WASHER

57618-07G00

Unavailable

38

SPRING, RETURN

57624-07G00

$13.85

39

COVER, LEVER

57541-07G00

$21.70
