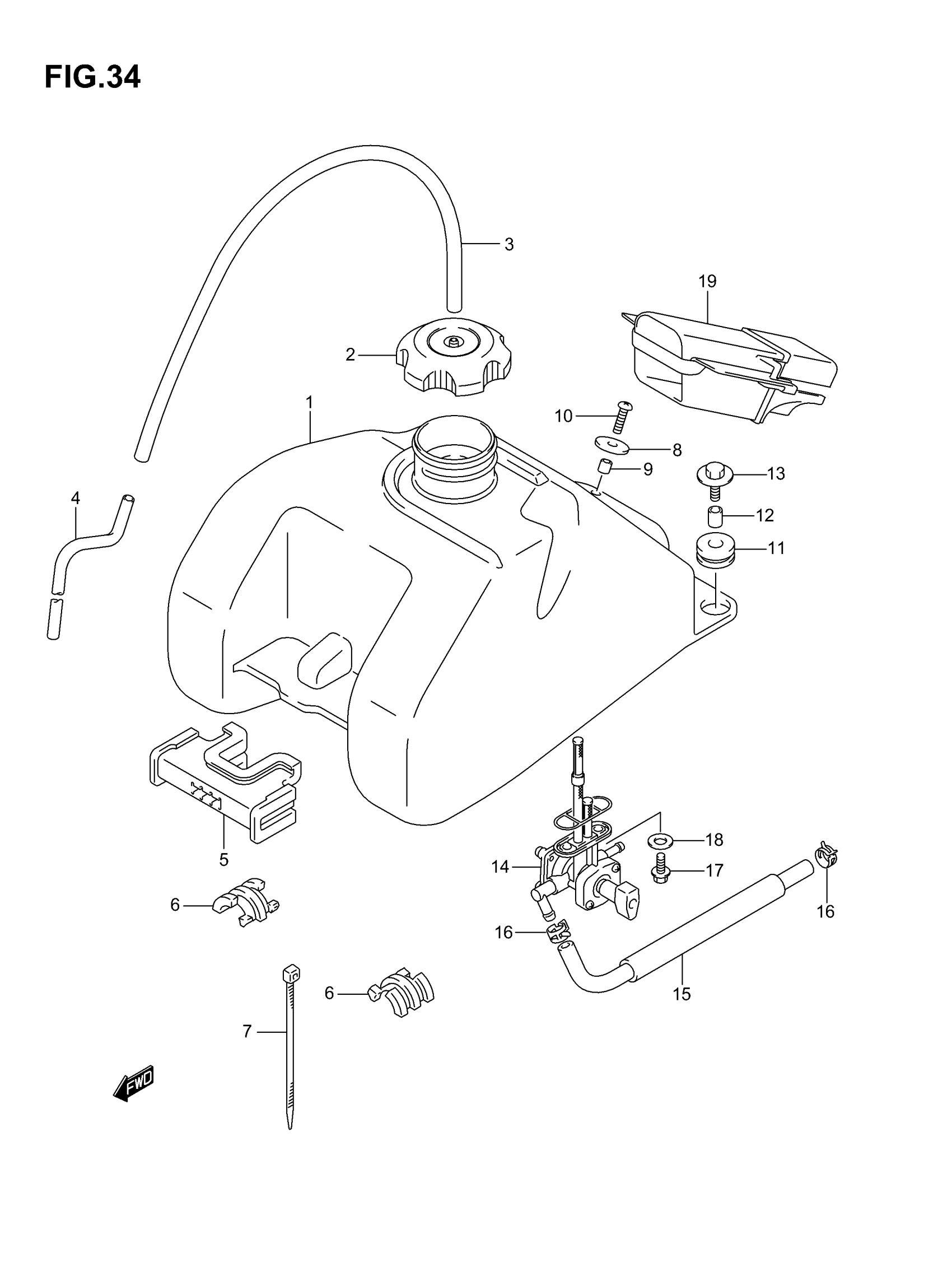

Suzuki LT-Z400 (2007) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL

44100-07G00

$346.18

2

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

$38.33

3

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

4

HOSE,VACUUM | MODEL K3 This part replaces 44425-20E00.

44425-20E01

$16.20

4

HOSE, BREATHER NO.2 | MODEL K4/K5/K6/K7

44425-20E10

Unavailable

5

CUSHION,FUEL TA This part replaces 44511-03G00.

44511-03G01

$20.92

6

CUSHION,TANK SI This part replaces 44542-07G00.

44542-07G01

$10.30

7

CLAMP

09407-14407

$3.57

8

WASHER, SEAT HOOK

09160-06136

$1.84

9

SPACER

09180-06286

$2.50

10

SCREW This part replaces 02142-06203.

02142-0620A

$1.49

11

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

$5.78

12

SPACER

09180-06293

$2.58

13

BOLT

09116-06190

$2.34

14

COCK ASSY,FUEL | MODEL K3 This part replaces 44300-07G00.

44300-07G02

$96.33

14

COCK ASSY,FUEL | MODEL K4/K5 This part replaces 44300-07G01.

44300-07G02

$96.33

14

COCK ASSY,FUEL | MODEL K6/K7 This part replaces 44300-07G10.

44300-07G11

$135.84

15

HOSE, FUEL | MODEL K3 This part replaces 44420-07G00.

44420-07G10

$33.02

15

HOSE, FUEL | MODEL K4 This part replaces 44420-07G01.

44420-07G10

$33.02

15

HOSE, FUEL | MODEL K5/K6/K7

44420-07G10

$33.02

16

CLIP This part replaces 09401-11407.

09401-11415

$2.23

17

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

18

GASKET

09168-06026

$3.10

19

COVER, CLEANER INLET DUCT

47150-07G00

$36.72
