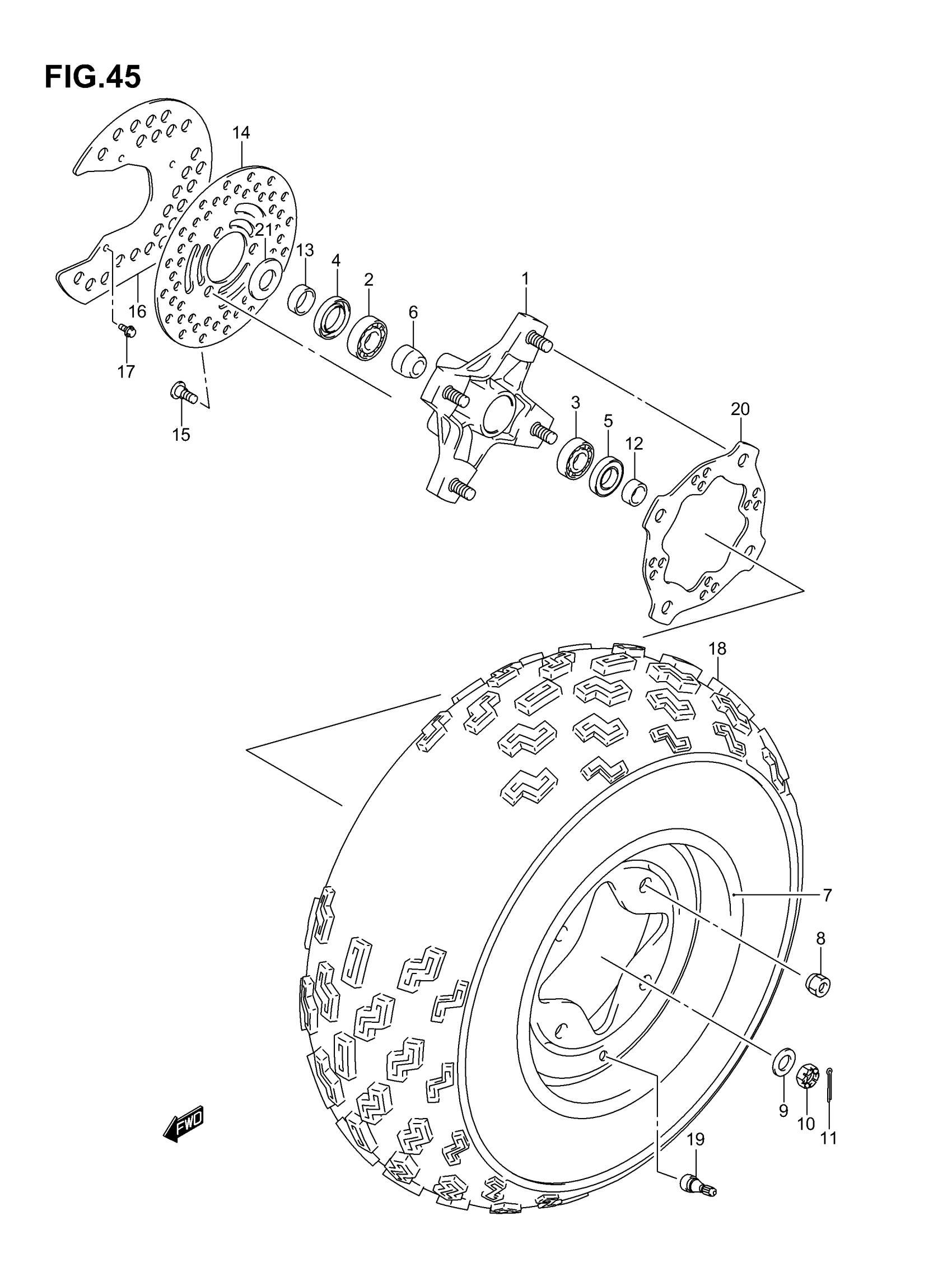

Suzuki LT-Z400 (2007) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHEEL (GRAY) | MODEL K3/K4

54110-07G00-YU8

$285.50

1

HUB, FRONT WHEEL (BLUE) | MODEL K5 FOR 30H

54110-07G00-YBA

Unavailable

1

HUB, FRONT WHEEL (BLACK) | MODEL K5 FOR YU1 MODEL K6/K7

54110-07G00-019

$282.30

2

BEARING This part replaces 08120-60047.

08120-6004B

$16.23

3

BEARING, FRONT HUB OUTER

09262-15024

$24.83

4

DUST SEAL INNER

09284-26002

$10.92

5

DUST SEAL OUTER

09284-21001

$12.79

6

SPACER, FRONT HUB BEARING This part replaces 54731-07G00.

54731-07G10

$14.65

7

RIM, FRONT WHEEL (10X5.5AT) | MODEL K3/K4 This part replaces 55310-07G00.

55310-07G10

$555.60

7

RIM, FRONT WHEEL (10X5.5AT) | MODEL K5/K6/K7

55310-07G10

$555.60

8

NUT | MODEL K3/K4

09140-10021

$2.03

8

NUT | MODEL K5/K6/K7

09159-10114

$5.11

9

WASHER This part replaces 08322-01143.

08322-0114A

$1.84

10

NUT, HUB This part replaces 08314-40143.

08314-4014B

$4.24

11

PIN This part replaces 04111-30308.

04111-3030A

$1.49

12

SPACER, FRONT AXLE

09180-15068

$4.90

13

SPACER, FR AXLE NO.2 | MODEL K3/K4

09180-20119

$7.31

13

SPACER, FR AXLE NO.2 | MODEL K5/K6/K7

09180-20120

$8.68

14

DISC, FRONT BRAKE

59211-07G00

$182.33

15

BOLT, BRAKE DISC

09106-08160

$3.57

16

COVER, FRONT DISC | MODEL K3 This part replaces 59231-07G00.

59231-07G20

$52.23

16

COVER, FRONT DISC | MODEL K4 This part replaces 59231-07G10.

59231-07G20

$52.23

16

COVER, FRONT DISC | MODEL K5/K6/K7

59231-07G20

$52.23

17

BOLT (6X12) This part replaces 09103-06083.

09103-06285

$1.97

18

TIRE, FRONT

55110-07G00

Unavailable

19

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

20

PLATE, FRONT HUB

54138-07G00

$17.03

21

SHIM, FR AXLE | MODEL K5/K6/K7

09160-21005

$2.06
