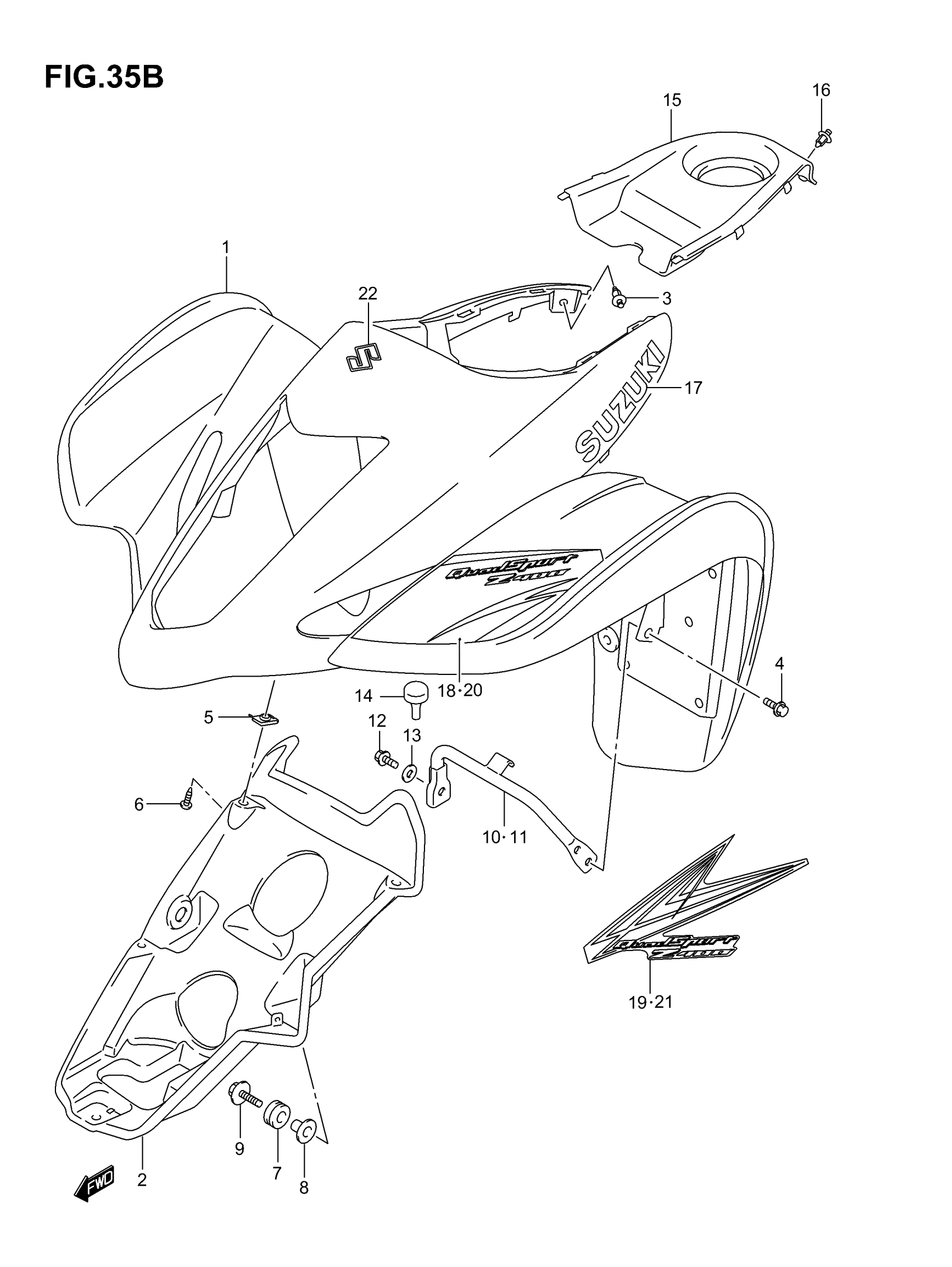

Suzuki LT-Z400 (2007) FRONT FENDER (MODEL K7) Diagram

#

Description
Price

1

FENDER, FRONT (YELLOW)

53111-07G01-YU1

$638.10

1

FENDER, FRONT (WHITE)

53111-07G01-30H

$666.38

1

FENDER, FRONT (BLACK)

53111-07G01-019

Unavailable

2

FENDER, FRONT LOWER

53118-07G02

$125.42

3

CLIP

09409-07333

$2.31

4

BOLT

09111-06085

$4.54

5

NUT

09148-05038

$1.97

6

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

7

CUSHION

09320-11008

$2.60

8

SPACER

09169-06074

$7.95

9

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

10

BRACKET, RH

53210-07G00

$35.92

11

BRACKET, LH

53220-07G00

$35.14

12

BOLT

09100-06162

$2.85

13

WASHER

09160-06153

$1.65

14

CUSHION

09321-06033

$2.84

15

FENDER, CENTER (YELLOW)

53119-07G01-YU1

$71.87

15

FENDER, CENTER (WHITE)

53119-07G01-30H

$70.50

15

FENDER, CENTER (BLACK)

53119-07G01-019

$71.87

16

CLIP

09409-07333

$2.31

17

EMBLEM,SUZUKI | FOR YU1 This part replaces 68661-29F00-GY8.

68661-29F01-GY8

$20.20

17

EMBLEM,SUZUKI | FOR 30H This part replaces 68661-29F00-8YM.

68661-29F01-8YM

$19.47

17

EMBLEM,SUZUKI | FOR 019 This part replaces 68661-29F00-J7A.

68661-29F01-J7A

Unavailable

18

TAPE, FRONT RH | FOR YU1

68155-07GB0-DSY

Unavailable

18

TAPE,FR FENDER, | FOR 30H This part replaces 68155-07GB0-DSF.

68155-07GB1-DSF

Unavailable

19

TAPE, FRONT RH | FOR 019

68155-07GD0-CVL

$46.22

20

TAPE,FR FENDER, | FOR YU1 This part replaces 68156-07GB0-DUE.

68156-07GB1-DUE

$46.02

20

TAPE,FR FENDER, | FOR 30H This part replaces 68156-07GB0-DUD.

68156-07GB1-DUD

$43.33

21

TAPE, FRONT LH | FOR 019

68156-07GD0-DUL

$46.22

22

EMLBEM "S" This part replaces 68151-07G10-YCF.

68151-07G11-YCF

$15.95
