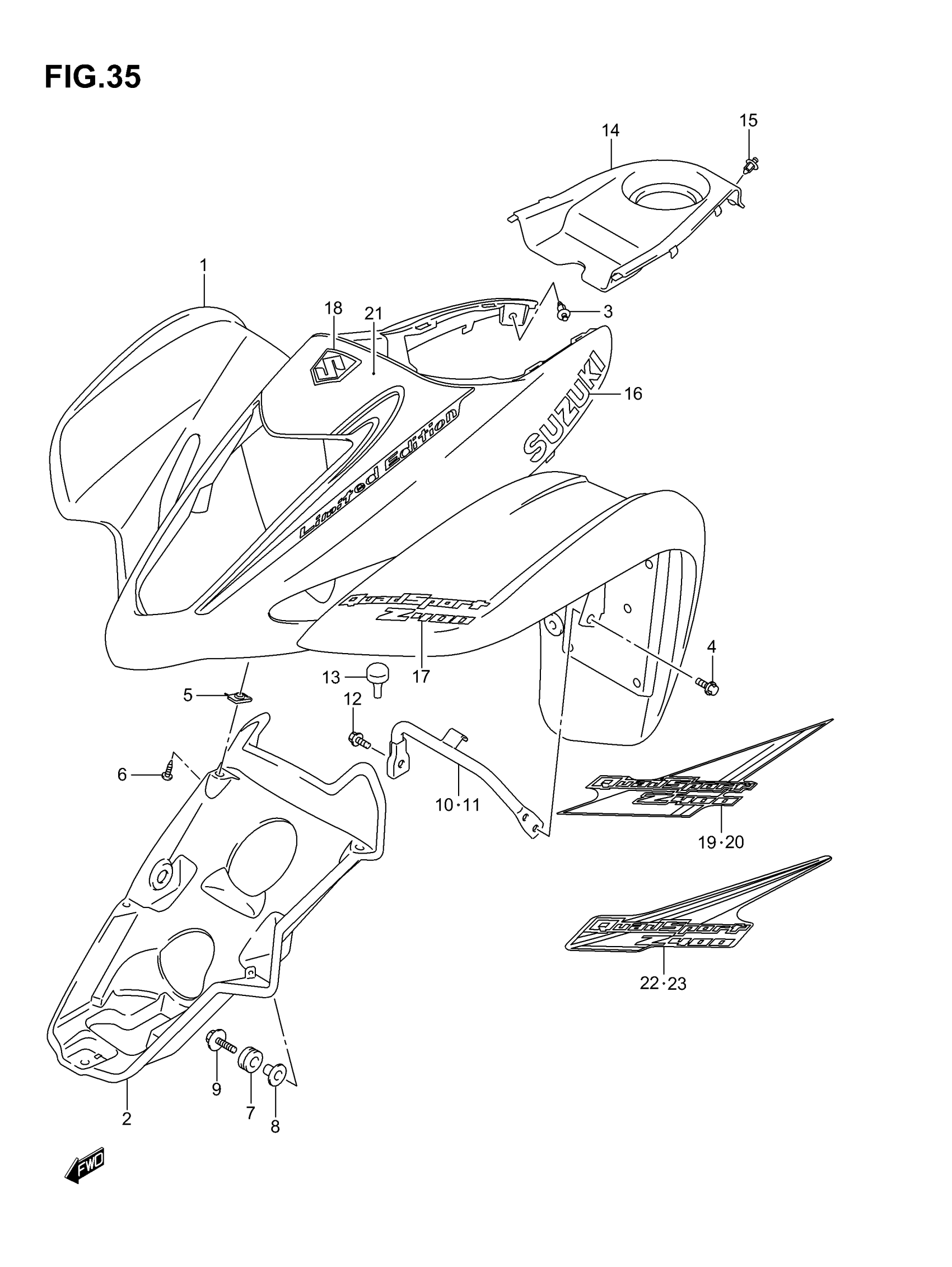

Suzuki LT-Z400 (2007) FRONT FENDER (MODEL K3/K4) Diagram

#

Description
Price

1

FENDER, FRONT (YELLOW) This part replaces 53111-07G00-YU1.

53111-07G01-YU1

$638.10

1

FENDER, FRONT (WHITE) This part replaces 53111-07G00-30H.

53111-07G01-30H

$666.38

1

FENDER, FRONT (BLACK) | LT-Z400Z K4 This part replaces 53111-07G00-019.

53111-07G01-019

Unavailable

2

FENDER, FRONT LOWER | MODEL K3 This part replaces 53118-07G00.

53118-07G02

$125.42

2

FENDER, FRONT LOWER | MODEL K4 This part replaces 53118-07G01.

53118-07G02

$125.42

3

CLIP

09409-07333

$2.31

4

BOLT (6X12) This part replaces 09111-06063.

09111-06085

$4.54

5

NUT

09148-05038

$1.97

6

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

7

CUSHION

09320-11008

$2.60

8

SPACER

09169-06074

$7.95

9

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

10

BRACKET, RH

53210-07G00

$35.92

11

BRACKET, LH

53220-07G00

$35.14

12

BOLT (6X12) This part replaces 09103-06083.

09103-06285

$1.97

13

CUSHION

09321-06033

$2.84

14

FENDER, CENTER (YELLOW) This part replaces 53119-07G00-YU1.

53119-07G01-YU1

$71.87

14

FENDER, CENTER (WHITE) This part replaces 53119-07G00-30H.

53119-07G01-30H

$70.50

14

FENDER, CENTER (BLACK) | LT-Z400Z K4 This part replaces 53119-07G00-019.

53119-07G01-019

$71.87

15

CLIP

09409-07333

$2.31

16

EMBLEM "SUZUKI" | FOR YU1 This part replaces 68111-01C20-GY8.

68111-01C21-GY8

Unavailable

16

EMBLEM,SUZUKI | FOR 30H This part replaces 68111-01C20-8YM.

68111-01C21-8YM

Unavailable

16

EMBLEM, "SUZUKI" | LT-Z400Z K4

68111-01C20-CT5

Unavailable

17

EMBLEM, "QUADSPORT" | MODEL K3 FOR YU1

68151-07G00-JV5

Unavailable

17

EMBLEM, "QUADSPORT" | MODEL K4 FOR YU1

68151-07G00-NA2

Unavailable

17

EMBLEM, "QUADSPORT" | MODEL K4 FOR 30H

68151-07G00-NN7

Unavailable

18

EMBLEM, "S"

68281-07G00

Unavailable

19

TAPE, FRONT RH | MODEL K3 FOR 30H

68155-07G10-KD8

Unavailable

20

TAPE,FRONT FEND | MODEL K3 FOR 30H This part replaces 68156-07G10-KD8.

68156-07G10-KC9

Unavailable

21

TAPE, FRONT | LT-Z400Z K4

68155-07G30-BAR

Unavailable

22

TAPE, FRONT RH | LT-Z400Z K4

68155-07G40-BAS

Unavailable

23

TAPE, FRONT LH | LT-Z400Z K4

68156-07G40-BAT

Unavailable
