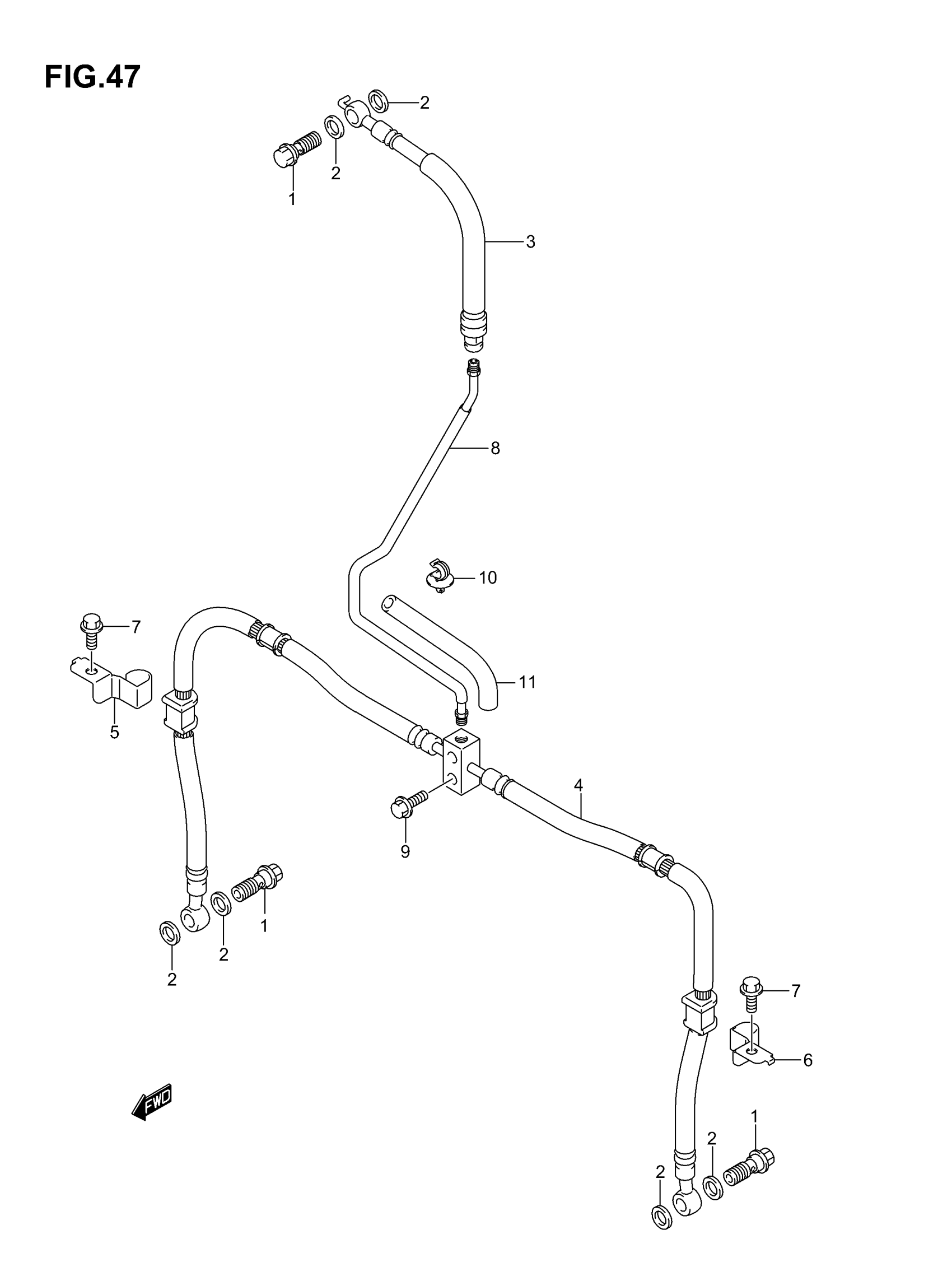

Suzuki LT-Z400 (2007) FRONT BRAKE HOSE Diagram

#

Description
Price

1

UNION | MODEL K3/K4/K5 This part replaces 09360-10042.

09360-10062

$6.43

1

BOLT | MODEL K3/K7

09360-10062

$6.43

2

WASHER (10X15X1.5)

09161-10009

$1.84

3

HOSE,FR BRAKE N | MODEL K3/K4 This part replaces 59480-07G00.

59480-07G12

Unavailable

3

HOSE,FR BRAKE N | MODEL K5/K6 This part replaces 59480-07G10.

59480-07G12

Unavailable

3

HOSE,FR BRAKE N | MODEL K7 This part replaces 59480-07G11.

59480-07G12

Unavailable

4

HOSE,FRONT BRAK | MODEL K3/K4 This part replaces 59240-07G00.

59240-07G01

Unavailable

4

HOSE, FRONT BRAKE NO.2 | MODEL K5/K6 This part replaces 59240-07G10.

59240-07G11

Unavailable

4

HOSE, FRONT BRAKE NO.2 | MODEL K7

59240-07G11

Unavailable

5

CLAMP, HOSE NO.2 RH

59261-07G00

Unavailable

6

CLAMP, HOSE NO.2 LH

59271-07G00

Unavailable

7

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

8

PIPE, FRONT BRAKE | MODEL K3/K4 This part replaces 59250-07G00.

59250-07G10

Unavailable

8

PIPE, FRONT BRAKE | MODEL K5/K6/K7

59250-07G10

Unavailable

9

BOLT | MODEL K3/K4 This part replaces 01547-06123.

01547-0612B

$1.49

9

BOLT | MODEL K5/K6/K7 This part replaces 01547-06163.

01547-0616B

$2.45

10

CLAMP, FR BRAKE PIPE | MODEL K3/K4

09403-07325

$2.92

10

CLAMP, FR BRAKE PIPE | MODEL K5/K6/K7

09403-07331

$3.50

11

COVER, FR BRAKE PIPE

59281-07G00

Unavailable
