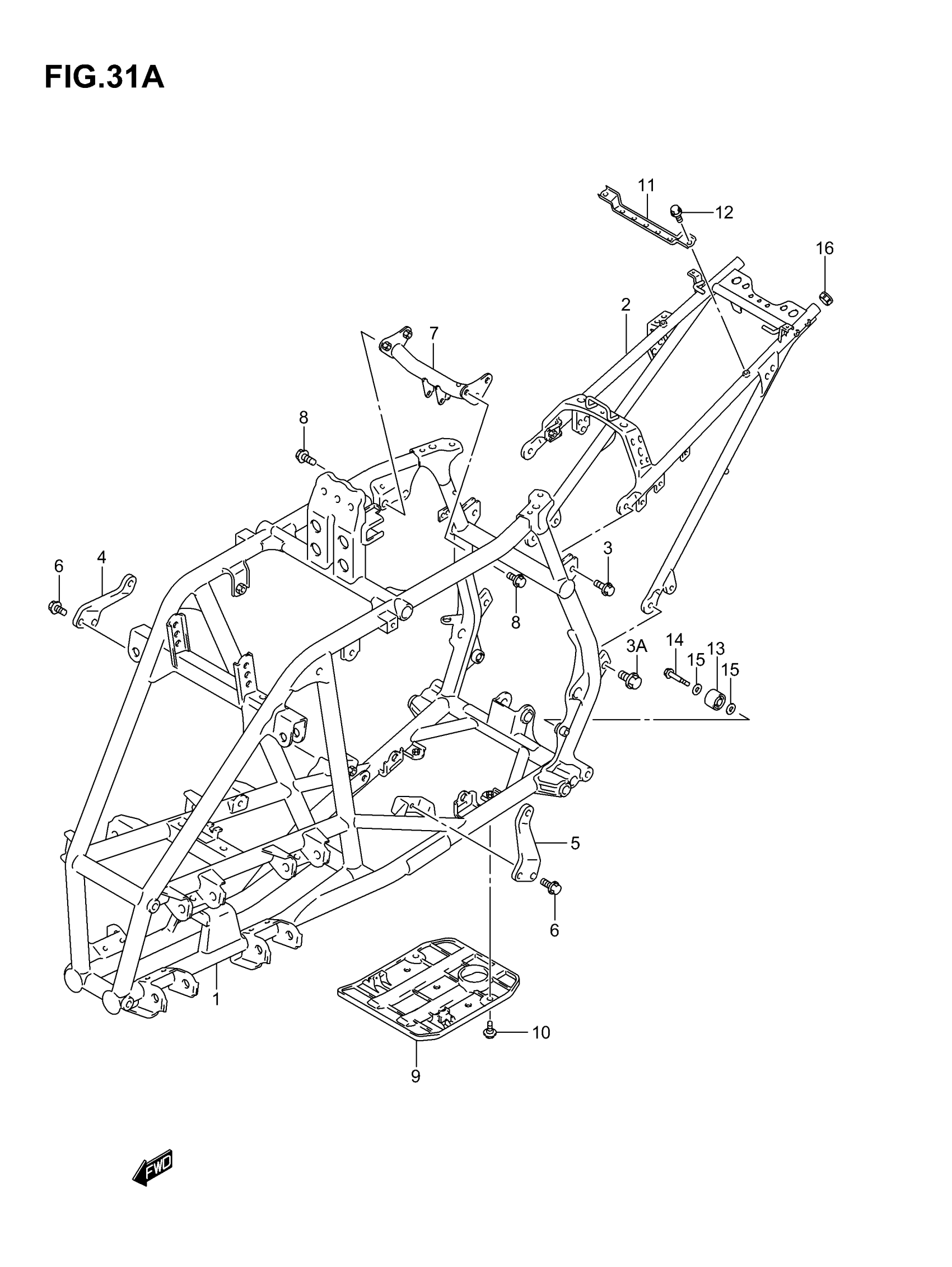

Suzuki LT-Z400 (2007) FRAME (MODEL K5/K6/K7) Diagram

#

Description
Price

1

FRAME (GRAY) | MODEL K5/K6

41100-07G30-YU8

Unavailable

1

FRAME (BLUE)

41100-07G30-YBA

Unavailable

1

FRAME (RED) | MODEL K7 FOR 019

41100-07G30-YHL

Unavailable

2

RAIL, SEAT (SILVER) | E33

41200-07G30-YD8

Unavailable

2

RAIL, SEAT (SILVER) | E28

41200-07G40-YD8

Unavailable

3

BOLT, UPPER

09103-10378

$3.07

3A

BOLT, LOWER

09103-10310

$3.10

4

PLATE, MOUNT FRONT RH

41911-07G00

$48.38

5

PLATE, MOUNT FRONT LH

41912-07G00

$48.38

6

BOLT This part replaces 01550-08203.

01550-0820A

$2.23

7

PLATE, MOUNT UPPER This part replaces 41990-07G30.

41990-07G40

$100.02

8

BOLT This part replaces 01550-08203.

01550-0820A

$2.23

9

PROTECTOR, ENGINE

42511-07G00

$46.22

10

BOLT

09111-06085

$4.54

11

PLATE, BATTERY

41560-07G30

$14.49

12

BOLT

09103-06240

$3.08

13

ROLLER, CHAIN CONTROL

43910-37F00

$70.53

14

BOLT

09103-08083

$3.70

15

WASHER

09181-08111

$1.93

16

CAP, SEAT RAIL

43978-24500

$8.42
