Description

Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:74/25

21200-07G10

$447.83

2

WASHER

08211-22425

$6.35

3

SPACER, PRIMARY DRIVEN

21251-29F00

$60.03

4

HUB, SLEEVE

21410-07G10

$110.41

5

PLATE, DRIVE

21441-03G50

$30.40

6

PLATE, DRIVE, NO.1

21441-29F00

$20.86

7

PLATE, DRIVE, NO.2

21442-29F00

$20.86

8

PLATE,CLUTCH DRIVEN (T:1.6) | MODEL K5

21451-44D00

$10.33

8

PLATE, DRIVEN | MODEL K6/K7

21451-07G00

$13.06

9

DISC, PRESSURE

21462-07G10

$85.67

10

SPRING | MODEL K5

21413-29F00

$6.12

10

SPRING | MODEL K6/K7 This part replaces 21413-07G00.

21413-29F00

$6.12

11

BOLT

21482-07G10

$2.83

12

SEAT, WAVE WASHER | 112.8X122X1.0

09160-00003

$9.32

13

WASHER, PLATE

09164-00008

$17.02

14

BEARING, PRESSURE DISK | 12X28X8

09262-12001

$16.90

15

NUT

09140-20001

$3.04

16

LOCK WASHER

09167-22021

$1.82

17

ROD, CLUTCH PUSH

23110-07G00

$28.80

18

RETAINER, CL RLSE OIL SEAL

23117-05200

$5.80

19

PIECE, CL RLSE

23121-29F00

$29.48

20

CAM SHAFT, CL RLSE

23122-29F00

$64.22

21

ARM, CL RLSE

23271-20902

$27.09

22

WASHER, CL RLSE | 10X20X1

09181-10195

$2.00

23

BEARING, CL RLSE LOW | 10X14X10

09263-10014

$12.21

24

BEARING, CL RLSE UP | 12X16X10

09263-12024

$11.44

25

SEAL, CL RLSE ARM | 10X20X6

09282-10012

$7.20

26

BOLT This part replaces 01547-06163.

01547-0616B

$2.43

27

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.38

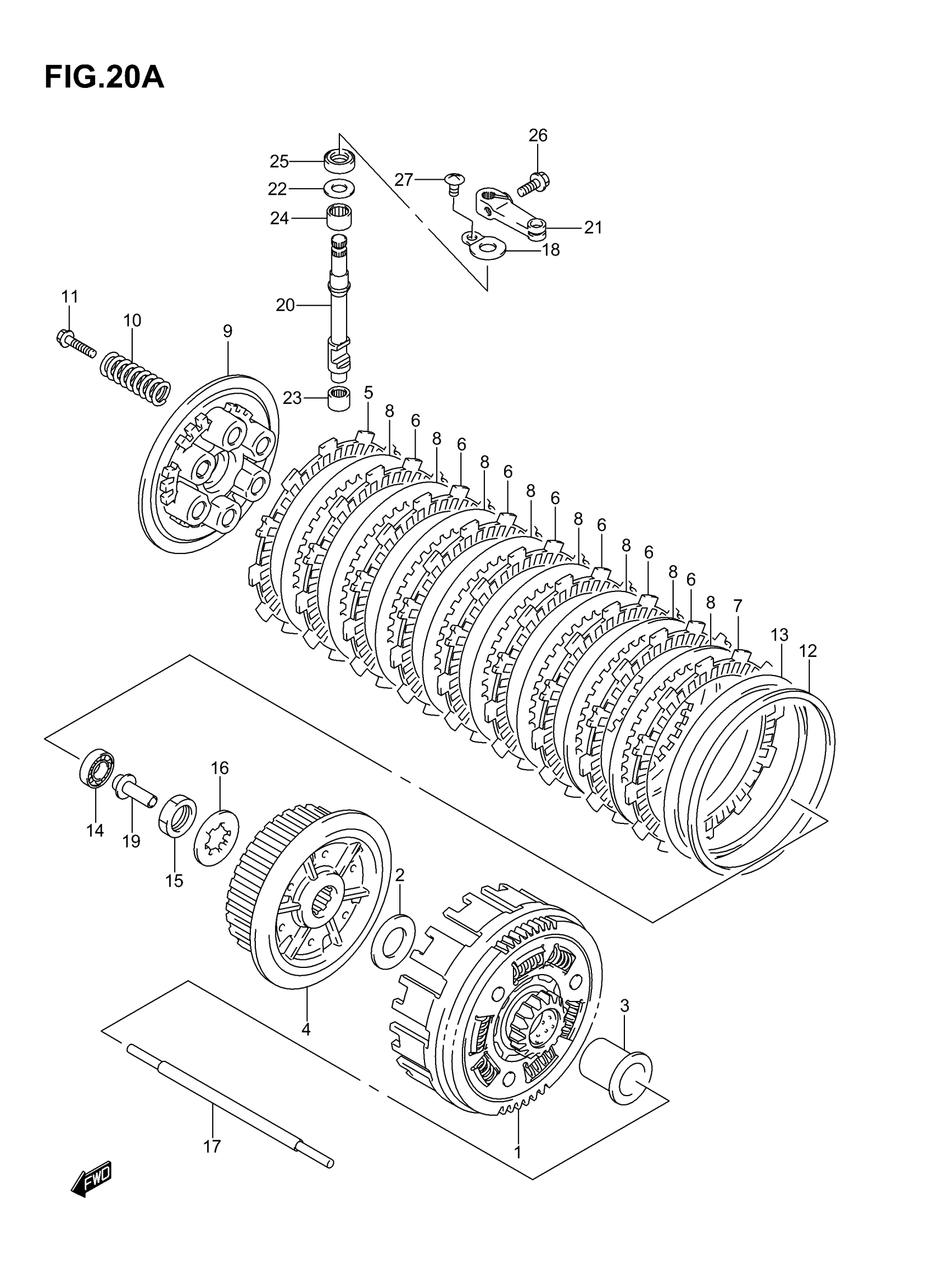

Suzuki LT-Z400 (2007) CLUTCH (MODEL K5/K6/K7) Diagram
