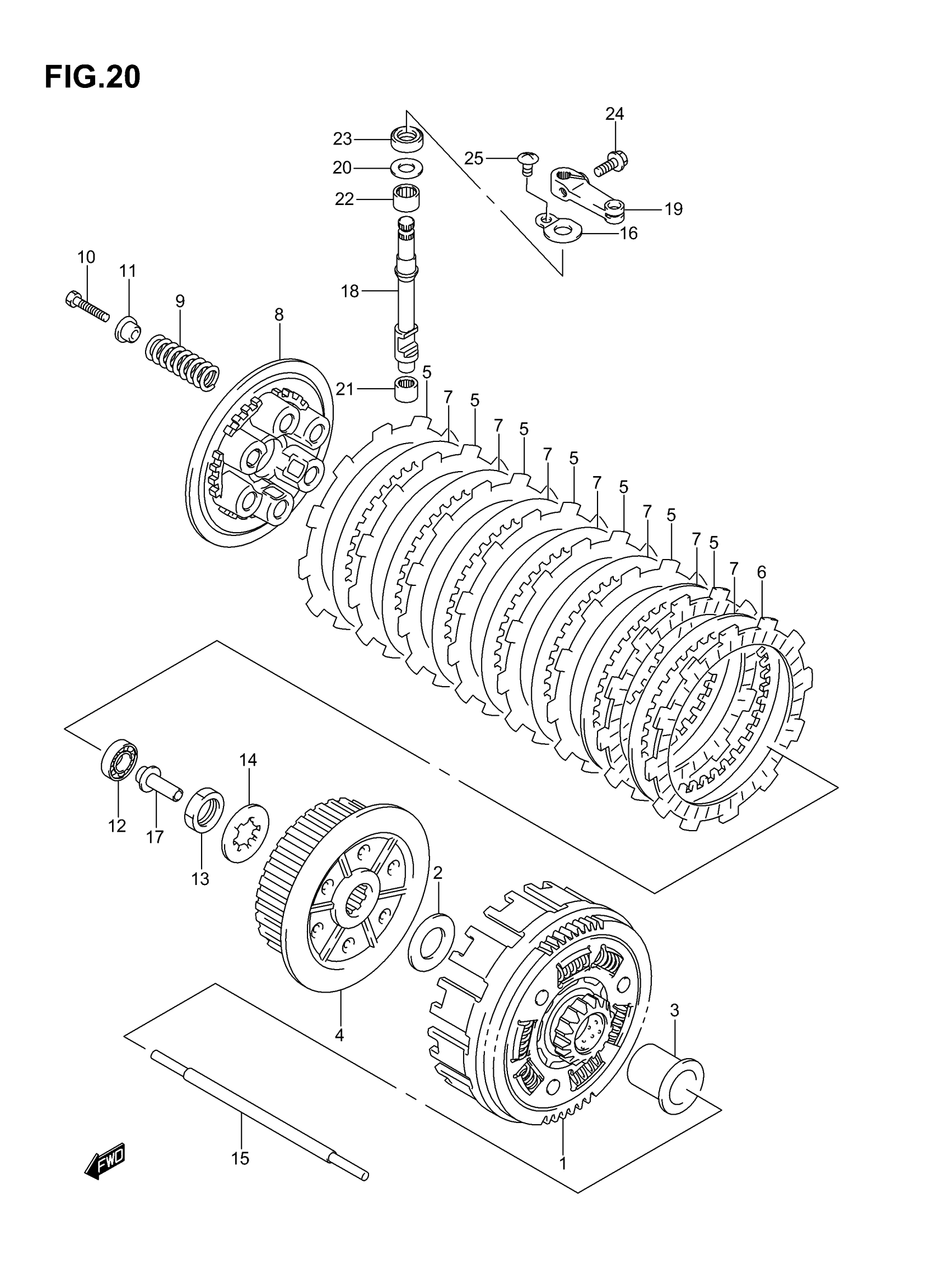

Suzuki LT-Z400 (2007) CLUTCH (MODEL K3/K4) Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:74/25

21200-07G00

Unavailable

2

WASHER

08211-22425

$6.35

3

SPACER, PRIMARY DRIVEN

21251-29F00

$60.03

4

HUB, SLEEVE

21410-07G00

$163.72

5

PLATE, DRIVE NO.1

21441-29F00

$21.81

6

PLATE, DRIVE NO.2

21442-29F00

$21.81

7

PLATE,CLUTCH DRIVEN (T:1.6)

21451-44D00

$10.79

8

DISC, PRESSURE

21462-29F00

$70.88

9

SPRING

21413-29F00

$6.39

10

BOLT This part replaces 07130-06303.

07130-0630B

$3.13

11

WASHER

21414-29F00

$6.15

12

BEARING, PRESSURE DISK | 12X28X8

09262-12001

$17.40

13

NUT

09140-20001

$3.13

14

LOCK WASHER

09167-22021

$1.82

15

ROD, CLUTCH PUSH

23110-07G00

$28.80

16

RETAINER, CL RLSE OIL SEAL

23117-05200

$5.80

17

PIECE, CL RLSE

23121-29F00

$29.48

18

CAM SHAFT, CL RLSE

23122-29F00

$64.22

19

ARM, CL RLSE

23271-20902

$28.31

20

WASHER, CL RLSE | 10X20X1

09181-10195

$2.07

21

BEARING, CL RLSE LOW | 10X14X10

09263-10014

$12.57

22

BEARING, CL RLSE UP | 12X16X10

09263-12024

$11.77

23

SEAL, CL RLSE ARM | 10X20X6

09282-10012

$7.42

24

BOLT This part replaces 01547-06163.

01547-0616B

$2.50

25

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.43
