2007 Suzuki LT-Z400 AIR Cleaner Diagram

← All diagrams

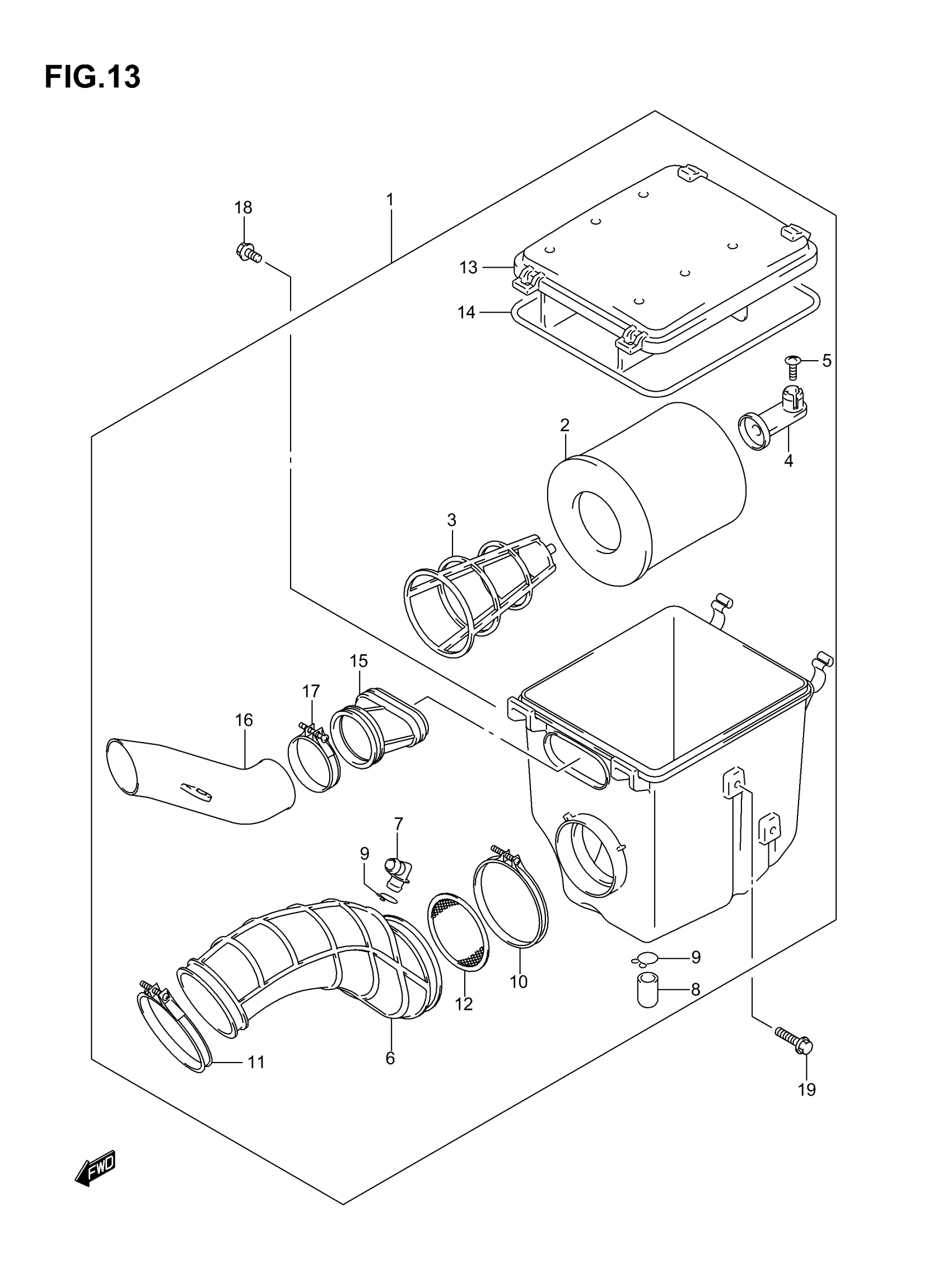

Find the part on the AIR Cleaner diagram for your 2007 Suzuki LT-Z400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki LT-Z400 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY,AI | MODEL K3/K4 This part replaces 13700-07G00.

13700-07G11

1
Out of stock

1

CLEANER ASSY,AI | MODEL K5/K6/K7; Includes Item(s) 2 - 17 This part replaces 13700-07G10.

13700-07G11

1
Out of stock

2

FILTER | MODEL K3

13780-03G00

1
Out of stock

2

FILTER | MODEL K4/K5/K6/K7

13780-07G00

1
Out of stock

3

HOLDER

13791-03G00

1
Out of stock

4

STOPPER, HOLDER

13792-03G00

1
Out of stock

5

SCREW This part replaces 02142-06163.

02142-0616A

1
Out of stock

6

TUBE, OUTLET

13881-07G00

1
Out of stock

7

JOINT

13858-14D20

1

$7.41

In stock

8

.PLUG

13859-41B10

1
Out of stock

9

CLIP

09401-14301

2
Out of stock

10

CLAMP (CLEANER SIDE)

09402-82208

1
Out of stock

11

CLAMP (CARBURETOR SIDE)

09402-64203

1
Out of stock

12

TRAP, FLAME This part replaces 13810-07G00.

13810-07G01

1
Out of stock

13

CAP, AIR CLEANER This part replaces 13740-07G01.

13740-07G02

1
Out of stock

14

GASKET

13746-07G00

1
Out of stock

15

JOINT, INLET

13891-07G00

1
Out of stock

16

DUCT, INLET

13896-07G00

1
Out of stock

17

CLAMP This part replaces 09402-56208.

09402-56901

1
Out of stock

18

BOLT This part replaces 01550-06163.

01550-0616A

1
Out of stock

19

..BOLT This part replaces 01547-06203.

01547-0620B

2
Out of stock
