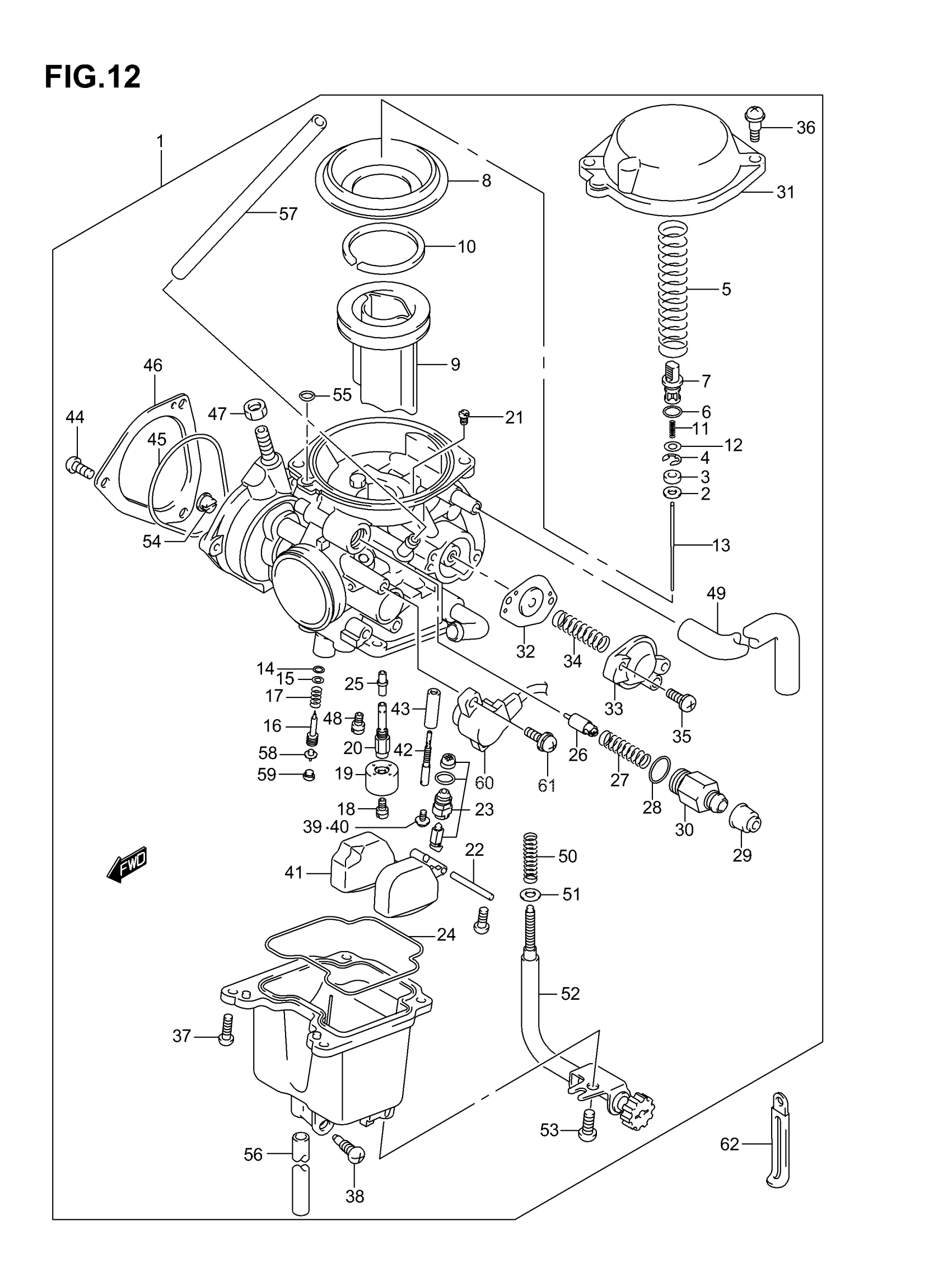

Suzuki LT-Z400 (2007) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY | MODEL K3 E3,E28 MODEL K4 E28 This part replaces 13200-07G01.

13200-07G02

$682.07

1

CARBURETOR ASSY | MODEL K3/K4 E33

13200-07G11

$959.40

1

CARBURETOR ASSY | MODEL K5 E28 This part replaces 13200-07G20.

13200-07G21

Unavailable

1

CARBURETOR ASSY | MODEL K5 E33

13200-07G30

$1,094.05

1

CARBURETOR ASSY | MODEL K6/K7 E28

13200-07G40

Unavailable

1

CARBURETOR ASSY | MODEL K6/K7 E33; Includes Item(s) 2 - 61

13200-07G50

$1,046.63

2

WASHER

13291-29FA0

$2.80

3

RING

13387-13F00

$7.48

4

E RING

13394-17E60

$1.89

5

SPRING

13503-07G00

$10.70

6

O RING

09280-05004

$2.17

7

HOLDER

13418-33E00

$5.20

8

DIAPHRAGM This part replaces 13507-07G00.

13507-07G01

$23.60

9

PISTON VALVE

13501-29FA0

$66.34

10

RING

13504-14E00

$4.81

11

SPRING

13481-04F00

$3.26

12

WASHER

13382-19E00

$3.35

13

JET NEEDLE (5E26-1)

13383-07G00

$22.25

14

O-RING This part replaces 13295-29900.

13295-29901

$3.97

15

WASHER

13291-29900

$1.87

16

ADJUSTER | MODEL K3/K4

13279-20B00

$14.18

16

ADJUSTER | MODEL K5/K6/K7

13279-44F00

$14.73

17

SPRING,THROTTLE SCREW

13268-48700

$3.97

18

MAIN JET (#130)

09491-26016

$18.50

19

RING

13331-07G10

$22.18

20

JET HOLDER

13342-07G10

$28.60

21

JET

09493-33002

$18.33

22

.PIN, FLOAT

13254-01010

$3.41

23

VALVE ASSY,NEED This part replaces 13370-07G00.

13370-07G01

$36.97

24

O RING

13258-04F00

$9.06

25

NEEDLE JET (P-0M)

13341-07G00

$58.62

26

PLUNGER ASSY

13411-07G00

$22.63

27

SPRING

13417-07F00

$6.61

28

.O RING (16) | MODEL K3/K4 This part replaces 13278-47090.

13278-47091

$1.89

29

.CAP This part replaces 13681-04010.

13681-04011

$4.51

30

GUIDE HOLDER

13418-07G10

$18.17

31

DIAPHRAGM COVER | MODEL K3/K4

13502-08F00

$57.92

31

DIAPHRAGM COVER | MODEL K5/K6/K7

13502-41F00

Unavailable

32

.DIAPHRAGM ASSY This part replaces 13480-10F00.

13480-10F01

$15.37

33

COVER ASSY

13502-10F00

$44.80

34

SPRING

13481-41F20

$3.55

35

SCREW

13601-04148

$2.80

36

SCREW

13247-33E00

$2.80

37

SCREW

02112-04107

$1.55

38

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.56

39

SCREW This part replaces 02112-04083.

02112-0408A

$1.09

40

SCREW

13602-05A10

$3.26

41

FLOAT ASSY

13250-04F00

$31.80

42

PILOT JET (#22.5)

09492-22014

$12.82

43

PIPE

13356-27A00

$11.92

44

SCREW This part replaces 02112-04063.

02112-0406B

$1.55

45

O RING

13673-20B00

$7.16

46

COVER

13502-02C10

$13.19

47

NUT

13607-98410

Unavailable

48

STARTER JET (#60.0)

09491-60010

$13.31

49

HOSE This part replaces 13686-07G00.

13686-07G01

$26.30

50

SPRING

13268-03110

$6.15

51

WASHER

13615-05G00

$3.67

52

ADJUST SCREW ASSY

13267-07G00

$100.37

53

SCREW

02112-05107

$1.43

54

CABLE GUIDE

13579-05G00

$7.16

55

O RING

13295-33010

$4.09

56

HOSE This part replaces 13684-07G00.

13684-07G01

Unavailable

57

.HOSE | MODEL K3/K4/K5 L:600!175 This part replaces 09352-50903-600.

09352-50006-600

$6.75

57

.HOSE | MODEL K6/K7 L:600!200 This part replaces 09352-50903-600.

09352-50006-600

$6.75

58

PLUG | E3,E28

13357-36A00

$6.00

59

PLUG | E33

13281-05A00

$4.21

60

.SENSOR ASSY | MODEL K5/K6/K7 This part replaces 13580-21F00.

13580-21F01

$79.38

61

SCREW | MODEL K5/K6/K7

13602-19B50

$3.14

62

CLAMP, CARB DRAIN HOSE

09404-06429

$1.82
