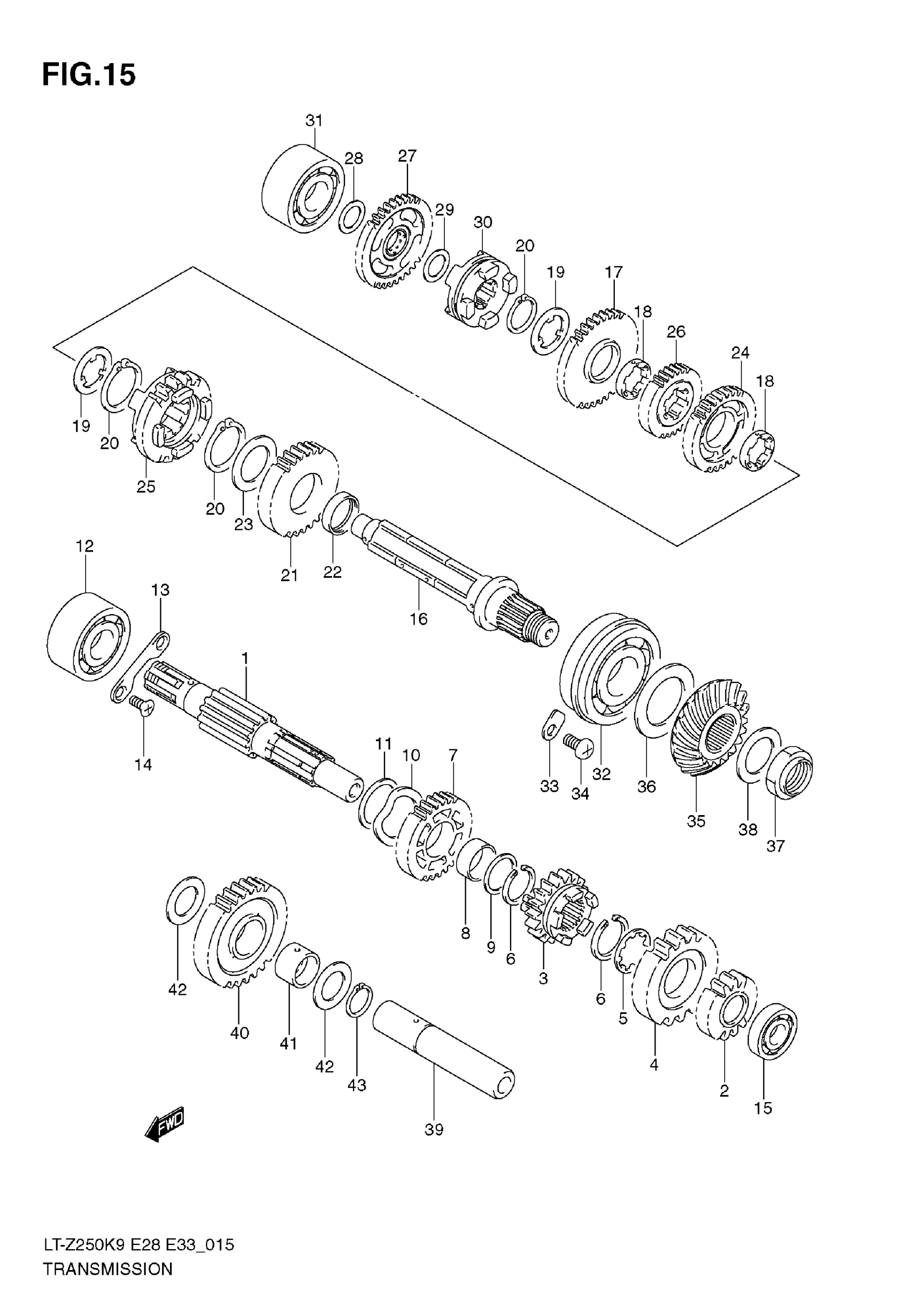

Suzuki LT-Z250 (2009) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:12)

24121-05G00

Unavailable

2

GEAR, 2ND DRIVE (NT:15)

24221-18A00

$115.77

3

GEAR, 3RD DRIVE (NT:18)

24231-05G00

$117.48

4

GEAR, 4TH DRIVE (NT:21)

24241-05G00

Unavailable

5

WASHER, 4TH DRIVE

09167-22011

$3.23

6

CIRCLIP, 4TH/5TH

09380-22006

$3.10

7

GEAR, 5TH DRIVE (NT:23)

24251-05G00

Unavailable

8

BUSH, 5TH DRIVE

24252-05G00

Unavailable

9

WASHER (22X28X1.0)

09181-22139

$3.48

10

WASHER

09164-26002

$2.72

11

WASHER, 5TH DRIVE, RH

08211-22425

$5.83

12

BEARING, RH (22X50X14)

09262-22018

$25.60

13

RETAINER

24741-05G00

$5.99

14

SCREW (6X12)

09126-06011

$2.03

15

BEARING, LH (17X30X14)

09263-17026

$51.10

16

DRIVE SHAFT

24131-05G00

Unavailable

17

GEAR, 1ST DRIVEN (NT:37)

24311-05G00

Unavailable

18

BUSH, 1ST/3RD

24332-24510

$18.67

19

LOCK WASHER, 1ST/3RD

09167-25016

$3.72

20

SNAP RING

09380-25003

$3.04

21

GEAR, 2ND DRIVEN (NT:29)

24321-05G00

Unavailable

22

BUSH, 2ND DRIVEN

09300-25020

$16.87

23

WASHER, 2ND DRIVEN

08211-25351

$3.72

24

GEAR, 3RD DRIVEN (NT:25)

24331-19B01

$108.65

25

GEAR, 4TH DRIVEN (NT:23)

24341-05G00

$110.67

26

GEAR, 5TH DRIVEN (NT:21)

24351-05G00

Unavailable

27

GEAR, REVERSE DRIVEN (NT:34)

24570-05G00

Unavailable

28

WASHER, REVERSE RH | 17X28X1.0

09181-17195

$3.07

29

WASHER, REVERSE LH | 20X28X1.0

09181-20167

$2.62

30

DOG, REVERSE

24581-05G00

Unavailable

31

BEARING, RH (17X35X10)

09262-17026

$36.97

32

BEARING, LH (25X62X17)

09262-25073

$25.92

33

RETAINER, DRIVE SHAFT

24741-21A00

$2.81

34

SCREW (6X12)

09125-06110

$2.12

35

GEAR, SEC DRIVE BEVEL (NT:15)

24911-21G00

Unavailable

36

SHIM SET,SEC DRIVE BEVEL | T:0.25/0.30/0.35/0.55 0.58/0.60/0.63/0.65 0.68/0.70/0.73/0.75 0.78/0.80/0.83/0.85 0.88/0.90/0.93/0.95 0.98/1.00/1.03/1.05 1.08/1.10/1.13/1.15 1.18/1.20/1.23/1.25 1.28/1.30

24935-03811

$133.70

37

NUT

09140-20012

$4.32

38

WASHER (20X32X1.0)

09181-20223

$2.92

39

SHAFT, REVERSE IDLE

24551-05G00

Unavailable

40

GEAR, REVERSE IDLE (NT:29)

24561-05G02

Unavailable

41

BUSH

24562-05G00

$19.57

42

WASHER (17X28X1.0)

09181-17195

$3.07

43

CIRCLIP This part replaces 08331-3117A.

08331-31179

$1.90
