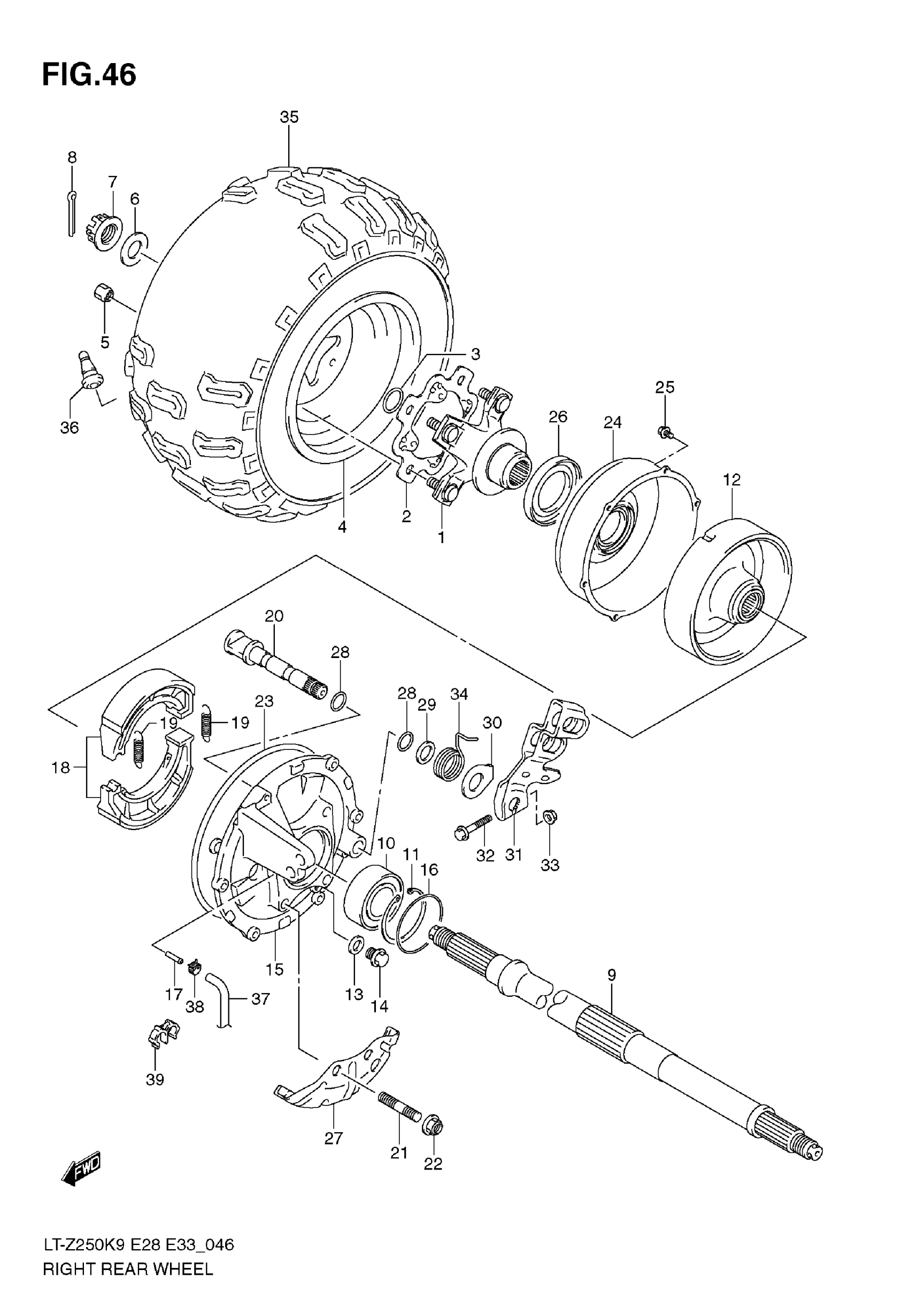

Suzuki LT-Z250 (2009) RIGHT REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL RH

64110-21G30-019

$271.87

2

PLATE, REAR HUB, R

64138-21G00

$14.23

3

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

$1.55

4

RIM, REAR WHEEL (9X8.0AT)

65310-07G10

$559.05

5

NUT

09159-10114

$5.11

6

WASHER

09164-18004

$3.76

7

NUT, HUB

09141-18010

$10.11

8

COTTER PIN

04111-4035A

$1.49

9

AXLE, REAR

64711-21G00

$718.97

10

BEARING(30X62X2 This part replaces 09267-30013.

09267-30015

$126.27

11

CIRCLIP

08331-4162A

$3.89

12

DRUM, BRAKE

64120-05G10

$300.05

13

WASHER, DRAIN PLUG

09161-10007

$1.72

14

PLUG, DRAIN

09247-10008

$1.97

15

PANEL, BRAKE ANCHOR

64210-05G01

$303.38

16

O RING This part replaces 09280-68008.

09280-68011

$2.92

17

UNION, PANEL

09364-04004

$13.12

18

SHOE SET, BRAKE

64400-05820

$55.17

19

SPRING, SHOE

55421-20E00

$2.92

20

CAM, REAR BRAKE

64440-05G01

$25.46

21

BOLT, PANEL

09108-10089

$4.16

22

NUT, PANEL

09159-10115

$3.55

23

O RING, PANEL

09280-00039

$14.26

24

COVER, REAR BRAKE

64123-05G00

$102.72

25

BOLT

01547-0612A

$2.03

26

DUST SEAL, DRUM COVER

64124-05G00

$27.66

27

GUARD, RR BRAKE DRUM

64280-21G00

Unavailable

28

O RING, CAM

09280-14004

$1.65

29

WASHER

09160-14055

$2.39

30

PLATE, BRAKE LINING INDICATOR

64492-21G00

$5.74

31

LEVER, BRAKE CAM

64451-05G00

$39.81

32

BOLT

01550-0635A

$2.32

33

NUT

08316-1006A

$2.19

34

SPRING, CAM LEVER

64484-05G00

$8.93

35

TIRE COMP,REAR This part replaces 65110-21G10.

65110-21G20

Unavailable

36

VALVE ASSY, WHEEL RIM, TR412

43130-24A00

$8.85

37

HOSE(4X7X2000) This part replaces 09352-40703-00B.

09352-40706-00B

$13.47

38

CLIP, HOSE

09401-06405

$2.45

39

CLIP, HOSE & CABLE

09408-00200

$2.67
