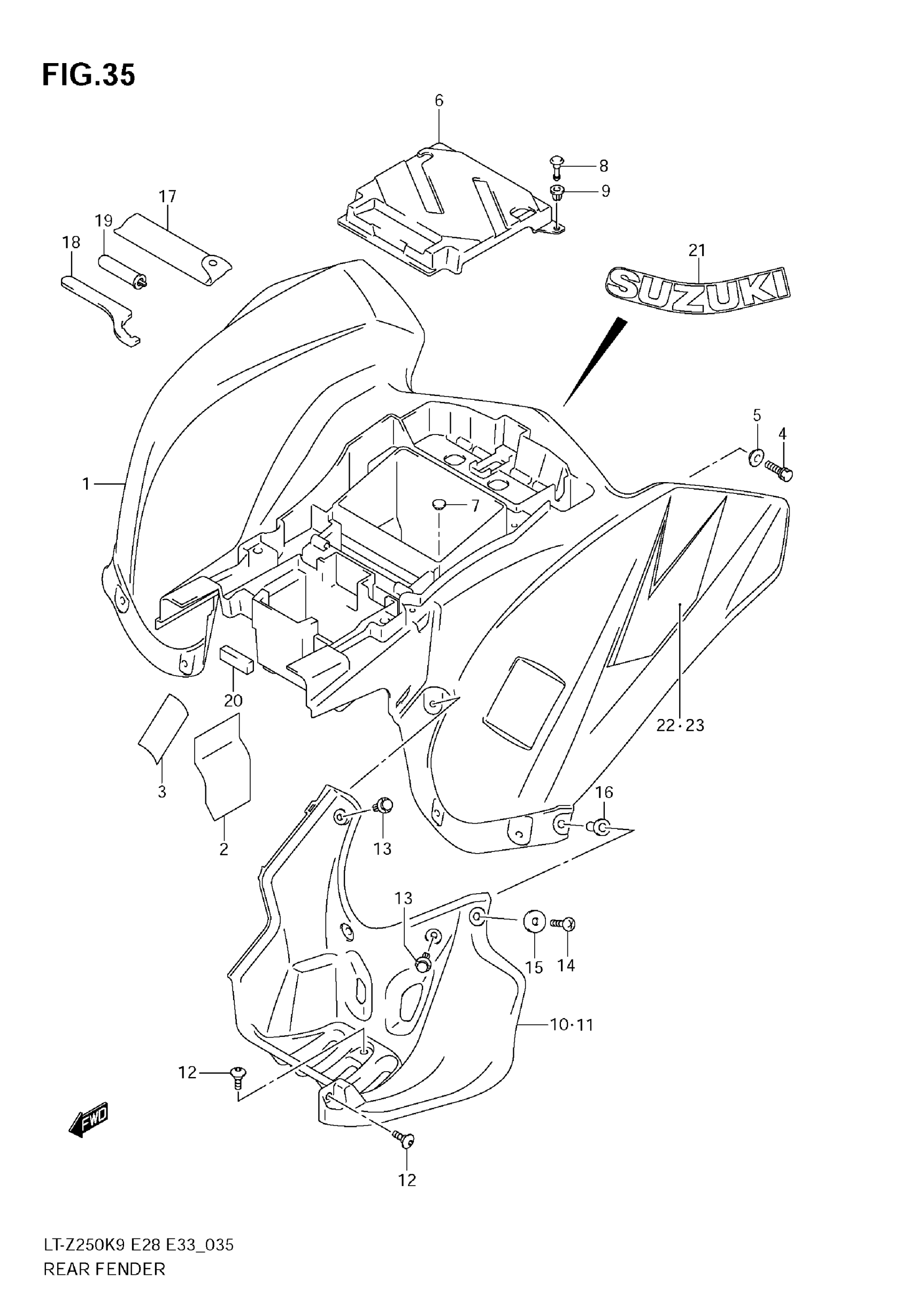

Suzuki LT-Z250 (2009) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (YELLOW)

63111-21G01-YU1

Unavailable

1

FENDER, REAR (WHITE)

63111-21G01-30H

Unavailable

2

SHIELD, REAR FENDER SIDE

63261-21G00

Unavailable

3

SHIELD, REAR FENDER FRONT

63262-21G00

Unavailable

4

BOLT, SIDE

01570-0620B

Unavailable

5

WASHER This part replaces 09169-06045.

09169-06055

$2.27

6

COVER, REAR FENDER

63121-05G10

$47.07

7

CAP(OD:16) This part replaces 09250-08007.

09250-08020

$1.67

8

CLIP

09409-08329

$2.40

9

GROMMET

09409-08330

$2.38

10

MUD GUARD, FOOTREST RH (BLACK)

63331-21G00-291

$101.12

11

MUD GUARD, FOOTREST LH (BLACK)

63341-21G00-291

$103.05

12

BOLT, LOWER

09139-06158

$4.90

13

CLIP

09409-08335

$2.47

14

SCREW, UPPER

02142-0520B

$1.78

15

WASHER

09160-05046

$1.92

16

NUT

09159-05019

$7.14

17

TOOL ASSY This part replaces 09800-21044.

09800-21093

$17.83

18

CLAMP, WRENCH

09822-00004

$14.43

19

GAUGE ASSY,AIR PRESSUR

96200-18A02

$58.92

20

PROTECTOR (20X50X11) This part replaces 33652-03G00.

33652-31F00

$3.43

21

EMBLEM | FOR YU1

68721-29F00-GY8

$12.97

21

EMBLEM | FOR 30H

68721-29F00-8YM

$12.73

22

TAPE, RH | FOR 30H

68175-21G30-GTJ

Unavailable

22

TAPE, RH | FOR YU1

68175-21G30-GTK

Unavailable

23

TAPE, LH | FOR 30H

68176-21G30-GTJ

Unavailable

23

TAPE, LH | FOR YU1

68176-21G30-GTK

Unavailable
