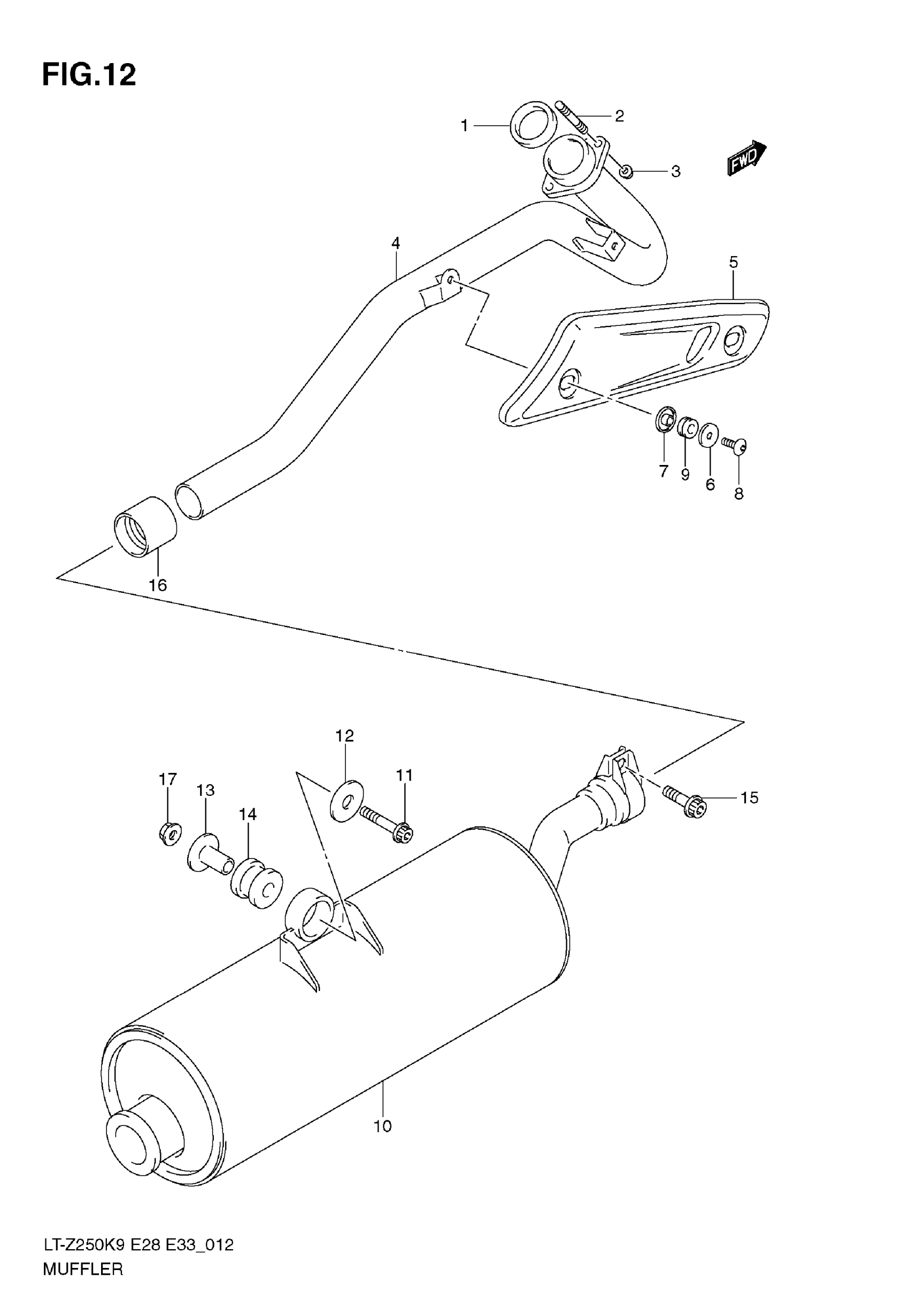

Suzuki LT-Z250 (2009) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

14181-42A00

$10.93

2

STUD BOLT

01421-0825B

$2.92

3

NUT

08319-3108B

$2.73

4

PIPE, EXHAUST

14150-21G00

$122.58

5

COVER, EXHAUST PIPE

14180-21G00

$80.52

6

WASHER, EXHAUST PIPE COVER

14184-07G00

$1.98

7

SPACER, EXHAUST PIPE COVER

14185-07G00

$3.76

8

SCREW, EXHAUST PIPE COVER

09139-06109

$2.73

9

CUSHION, EXHAUST PIPE COVER

09320-08069

$8.37

10

MUFFLER

14310-21G00

$414.02

11

BOLT, MUFFLER SUPPORT

07120-0845B

$3.91

12

WASHER, MUFFLER SUPPORT

09160-08503

$2.50

13

SPACER, MUFFLER SUPPORT

09180-08152

$5.83

14

CUSHION, MUFFLER SUPPORT

09320-12071

$9.15

15

BOLT, MUFFLER CONNECTOR

07120-0825B

$3.49

16

CONNECTOR, MUFFLER

14771-19B00

$17.04

17

NUT

08319-3108B

$2.73
