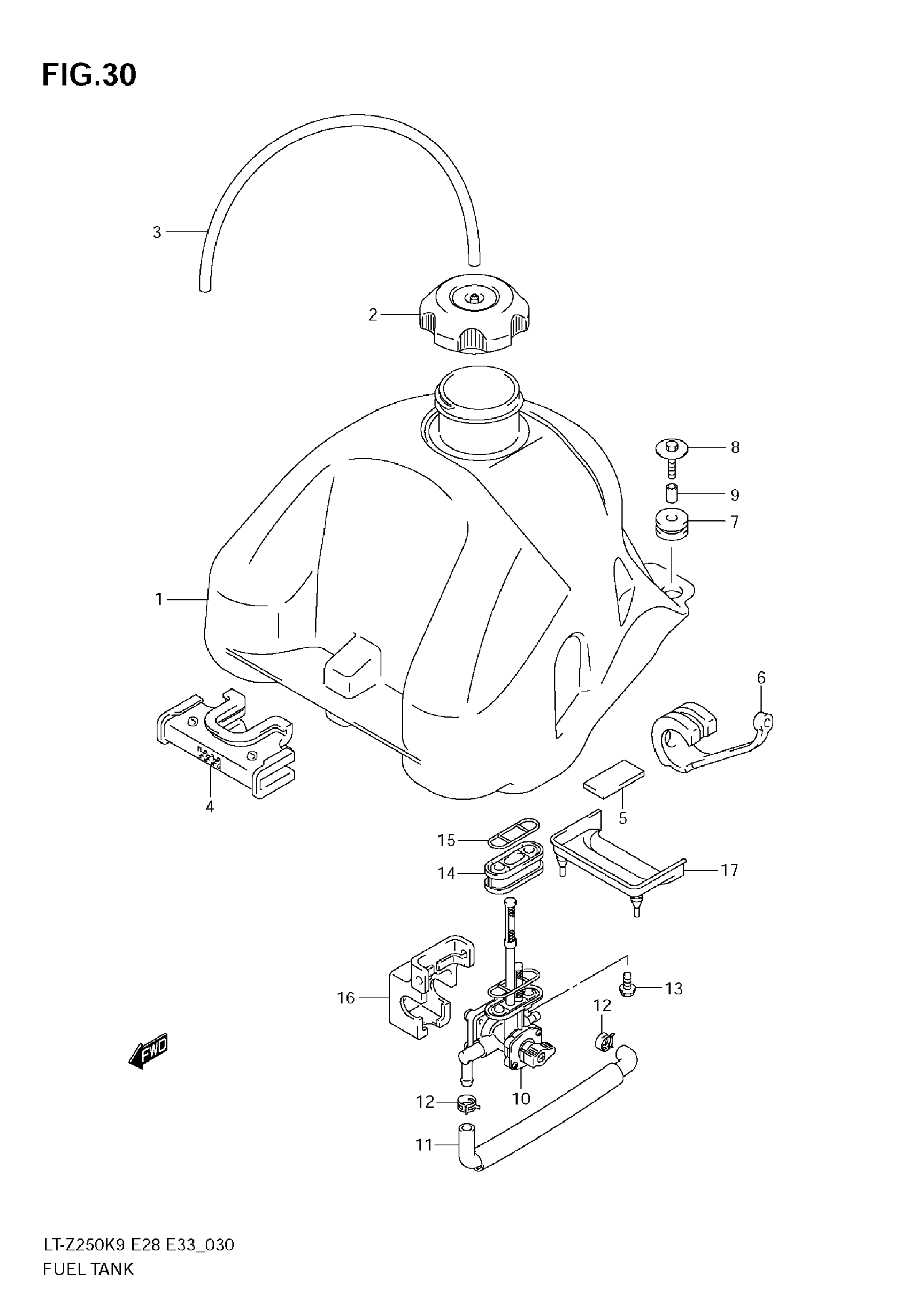

Suzuki LT-Z250 (2009) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL

44100-05GA0

Unavailable

2

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

$38.33

3

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

4

CUSHION,FUEL TA This part replaces 44511-03G00.

44511-03G01

$20.92

5

CUSHION

44556-33H00

$7.66

6

CUSHION, LOWER

44541-05GA0

Unavailable

7

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

$5.78

8

BOLT

09116-06190

$2.34

9

SPACER

09180-06293

$2.58

10

COCK ASSY,FUEL This part replaces 44300-21G10.

44300-21G11

$195.25

11

HOSE,FUEL This part replaces 44420-21G00.

44420-21GR0

$24.55

12

CLIP

09401-11415

$2.23

13

BOLT

01547-0635B

$2.73

14

SPACER

44365-05GA0

Unavailable

15

GASKET

44366-05GA0

$18.56

16

CUSHION, COCK

44542-05GA0

Unavailable

17

RUBBER, CLEANER INLET

47157-21G00

Unavailable
