Description

Price

1

HUB, FRONT WHEEL

54110-07G00-019

$282.30

2

BEARING This part replaces 08120-60047.

08120-6004B

$16.23

3

BEARING, FRONT HUB OUTER

09262-15024

$24.83

4

DUST SEAL INNER

09284-26002

$10.92

5

DUST SEAL OUTER

09284-21001

$12.79

6

SPACER, FRONT HUB BEARING This part replaces 54731-07G01.

54731-07G10

$14.65

7

RIM, FRONT WHEEL (10X5.5AT)

55310-07G10

$555.60

8

NUT

09159-10114

$5.11

9

WASHER

09160-15052

$3.23

10

NUT, HUB

08314-4014A

$4.42

11

PIN, COTTER

04111-3025A

$1.49

12

SPACER, FRONT AXLE

09180-15068

$4.90

13

SPACER, FR AXLE NO.2

09180-20119

$7.31

14

DISC, FRONT BRAKE

59211-07G00

$182.33

15

BOLT, BRAKE DISC

09106-08160

$3.57

16

COVER, FRONT DISC

59231-07G20

$52.23

17

BOLT

09103-06285

$1.97

18

TIRE,FRONT This part replaces 55110-21G10.

55110-21G20

Unavailable

19

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

20

PLATE, FRONT HUB

54138-07G10

$18.29

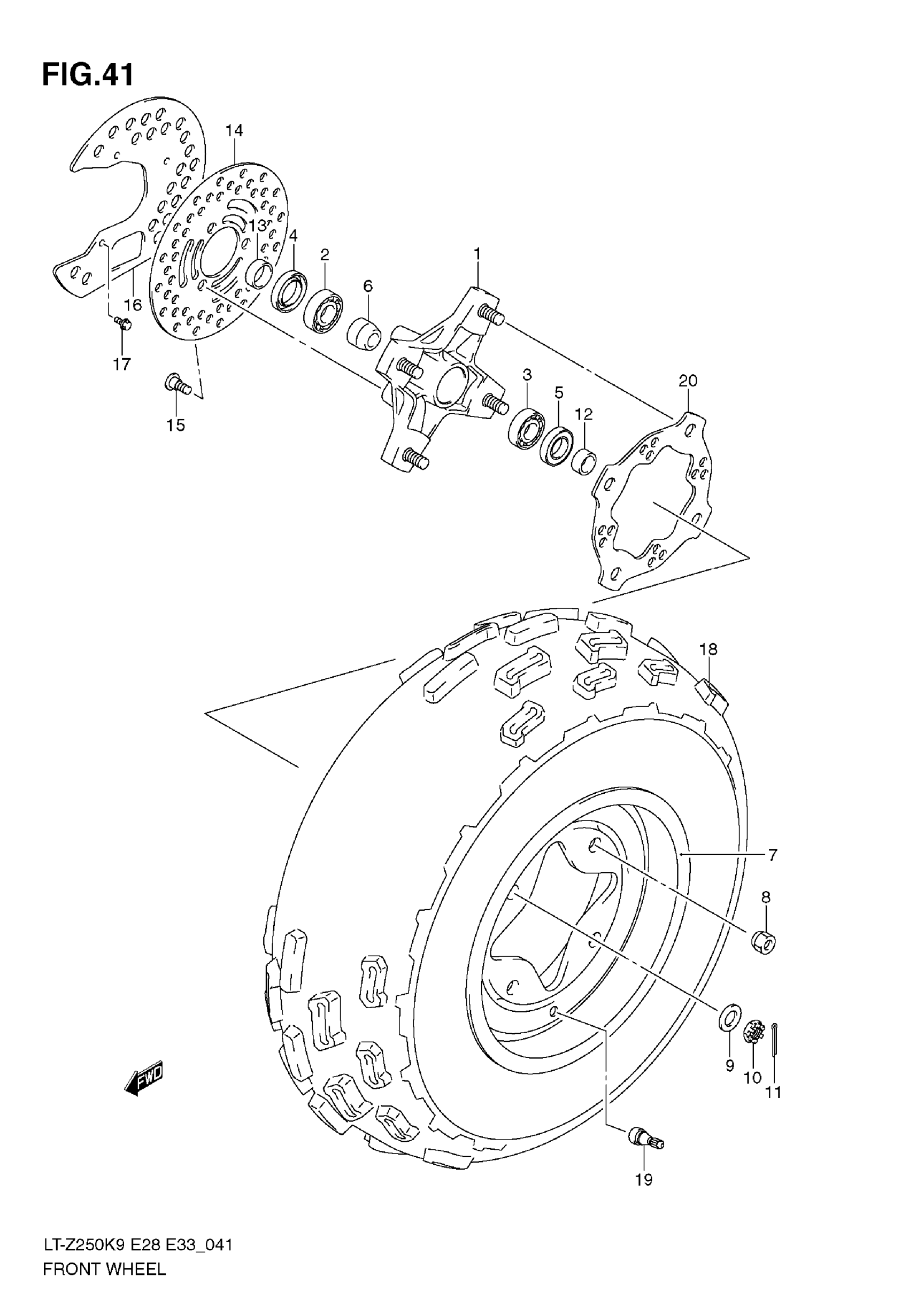

Suzuki LT-Z250 (2009) FRONT WHEEL Diagram
