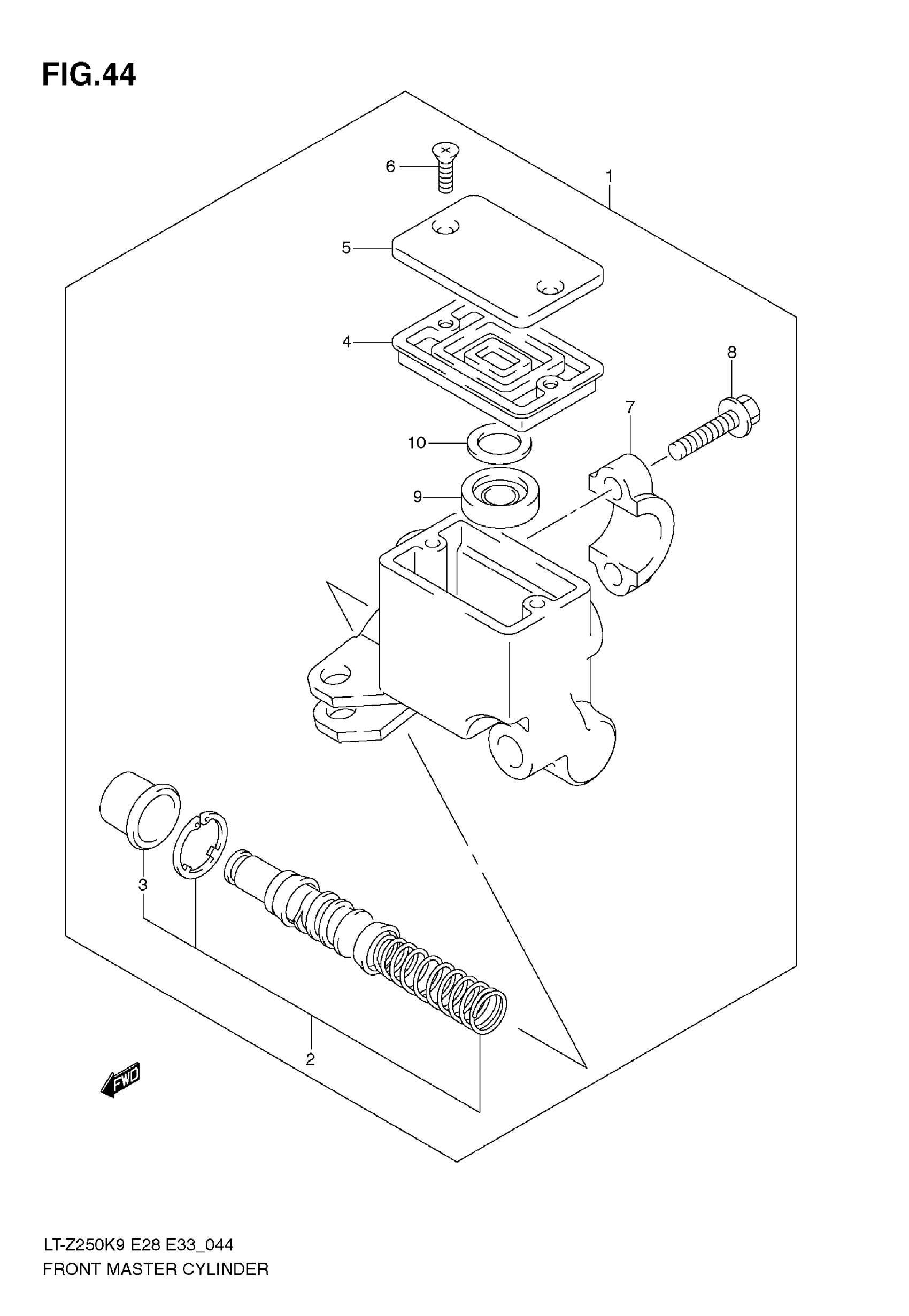

Suzuki LT-Z250 (2009) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 10

59600-31D40

Unavailable

2

PISTON/CUP SET

59600-04810

$41.38

3

BOOT

59666-44300

$5.30

4

DIAPHRAGM

59667-44B00

$8.95

5

CAP

59669-05D00

$15.78

6

SCREW, CAP

02122-0412A

$1.95

7

HOLDER

59671-27C00

$19.22

8

BOLT

59675-06F00

$5.33

9

SEPARATOR

59748-15400

$8.83

10

PLATE

59749-15400

$2.80
